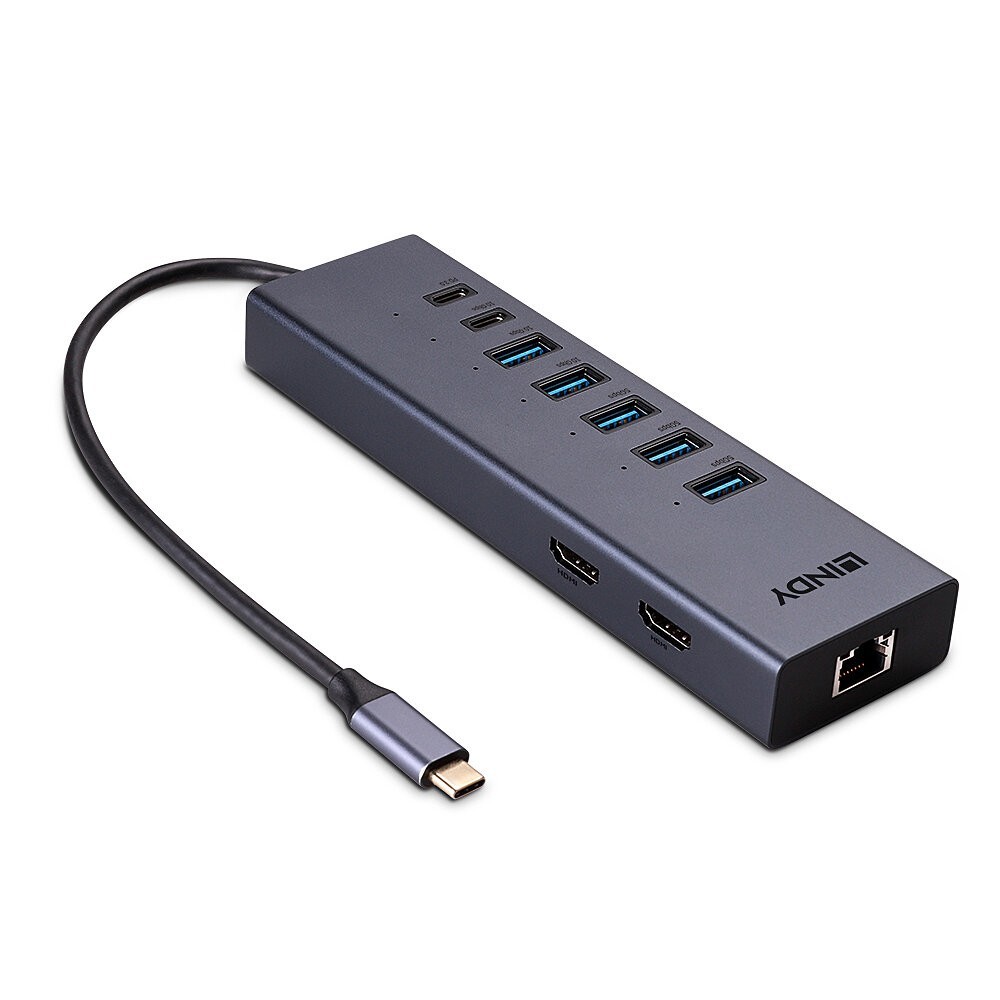

The DST-Mini Duo is a high performance and versatile solution for connecting laptops, tablets or smartphones to a range of interfaces including 2 HDMI displays. Featuring all critical interfaces required for a modern workstation, this Mini Docking Station uses a single USB 3.2 Type C cable to connect up to two 4K displays simultaneously*, while improving connectivity to other devices through Gigabit Ethernet and USB 3.2 / 3.1 SuperSpeed 10Gbps and 5Gbps ports.

This Laptop Docking Station enables the connection of an HDMI display to a laptop at resolutions of 8K 7680x4320 30Hz using DisplayPort Alternate Mode through the USB Type C port. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming. It features three USB 3.2 Gen 2 Type C and A ports providing 10Gbps high data transfer speeds as well as three 5Gbps USB Type A ports.

This Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.

*Please note that Apple computers do not support MST.

Lindy DST-Mini Duo, USB-C Laptop Mini Docking Station 2x 4K HDMI. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 8K Ultra HD. Power source type: USB, Power connector: USB Type-C, Power cable length: 0.22 m. Mobile operating systems supported: Android, Other operating systems supported: ChromeOS

Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	2
HDMI version	2.1
Microphone in	No
Headphone outputs	0
HDCP version	2.3
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Wake-on-LAN ready	Yes
Performance
Product colour	Grey
Data transfer rate	10 Gbit/s
HD type	8K Ultra HD
Maximum digital resolution	7680 x 4320 pixels
Housing material	Aluminium, Plastic
Power
Power source type	USB
Power connector	USB Type-C
Power cable length	0.22 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Mobile operating systems supported	Android
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	165 mm
Depth	49 mm
Height	21.7 mm
Weight	160 g
Packaging data
Quantity per pack	1 pc(s)
Package width	185 mm
Package depth	80 mm
Package height	25 mm
Package weight	200 g
Packaging content
Manual	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
