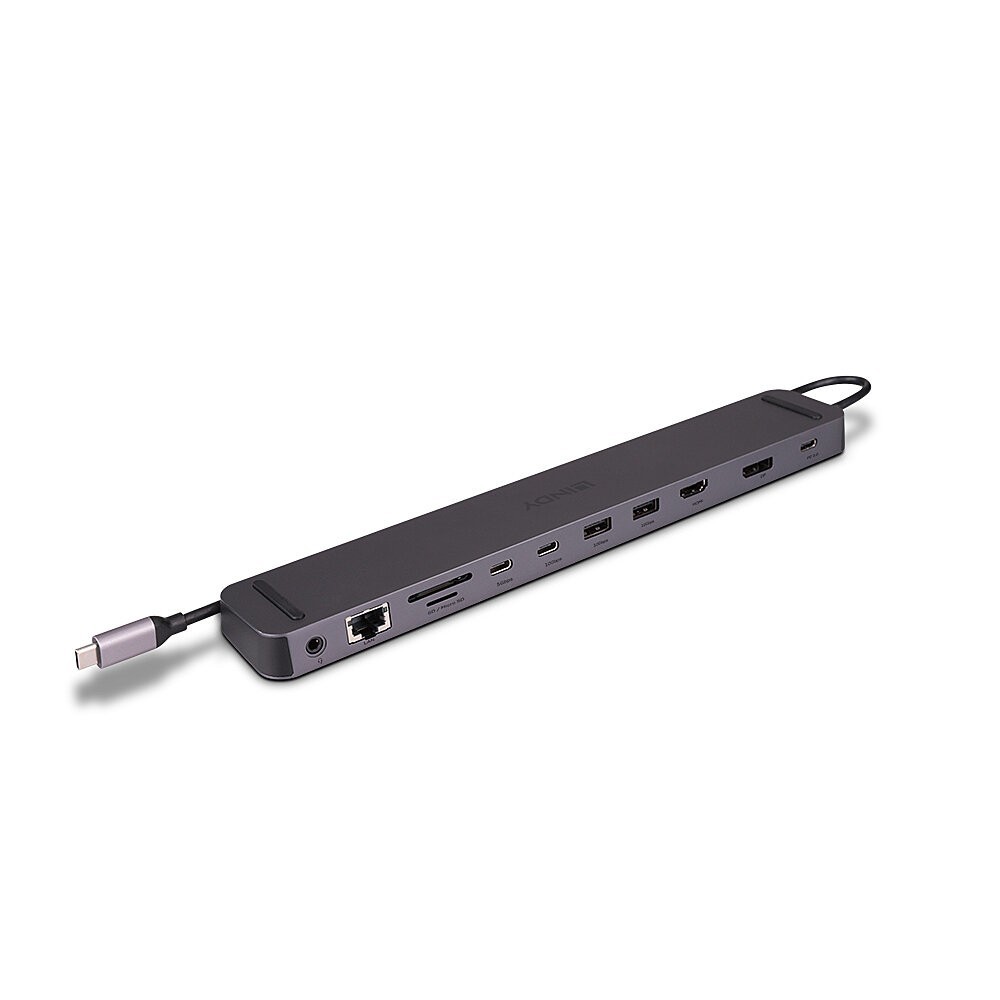

The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making it the ideal tool for high resolution video editing or game streaming.

This docking station delivers a whole host of capable ports to connect your devices into your workflow. With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your productivity whilst the Card Readers (SD and Micro-SD) allow you to expand your storage capacity beyond that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort and HDMI.

The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A power supply is not included. The dock can be used with the power supply supplied with the laptop or a power supply can be purchased separately.**

This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host devices. DST-Mini XT 801 comes in a stylish aluminium case and is optimally designed to place the laptop on it with rubber feet at the top and bottom to ensure a secure hold.It is designed to improve ergonomics and assist with the heat dissipation from notebooks by creating more space for the fans to operate.

*Please note that macOS does not support MST.

** Please note that the Docking Station requires 15W for its own operation.

Lindy DST-Mini XT 810, USB-C Laptop Mini Docking Station with Single Display (8K) or Dual Display (4K60) and 100W Pass-Through Charging. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Anthracite, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Power source type: USB, Power connector: USB Type-C, Power supply: 15 W. Width: 270 mm, Depth: 45 mm, Height: 16 mm

Ports & interfaces
Connectivity technology	Docking
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4a
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Performance
Product colour	Anthracite
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	10 Gbit/s
Maximum digital resolution	7680 x 4320 pixels
Maximum refresh rate	120 Hz
Housing material	Aluminium
Certification	CE, FCC, REACH & RoHS, CP65
Power
Power source type	USB
Power connector	USB Type-C
Power supply	15 W
USB cable length	0.36 m
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	270 mm
Depth	45 mm
Height	16 mm
Weight	224 g
Packaging data
Quantity per pack	1 pc(s)
Package width	365 mm
Package depth	93 mm
Package height	35 mm
Package weight	330 g
Packaging content
Manual	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
