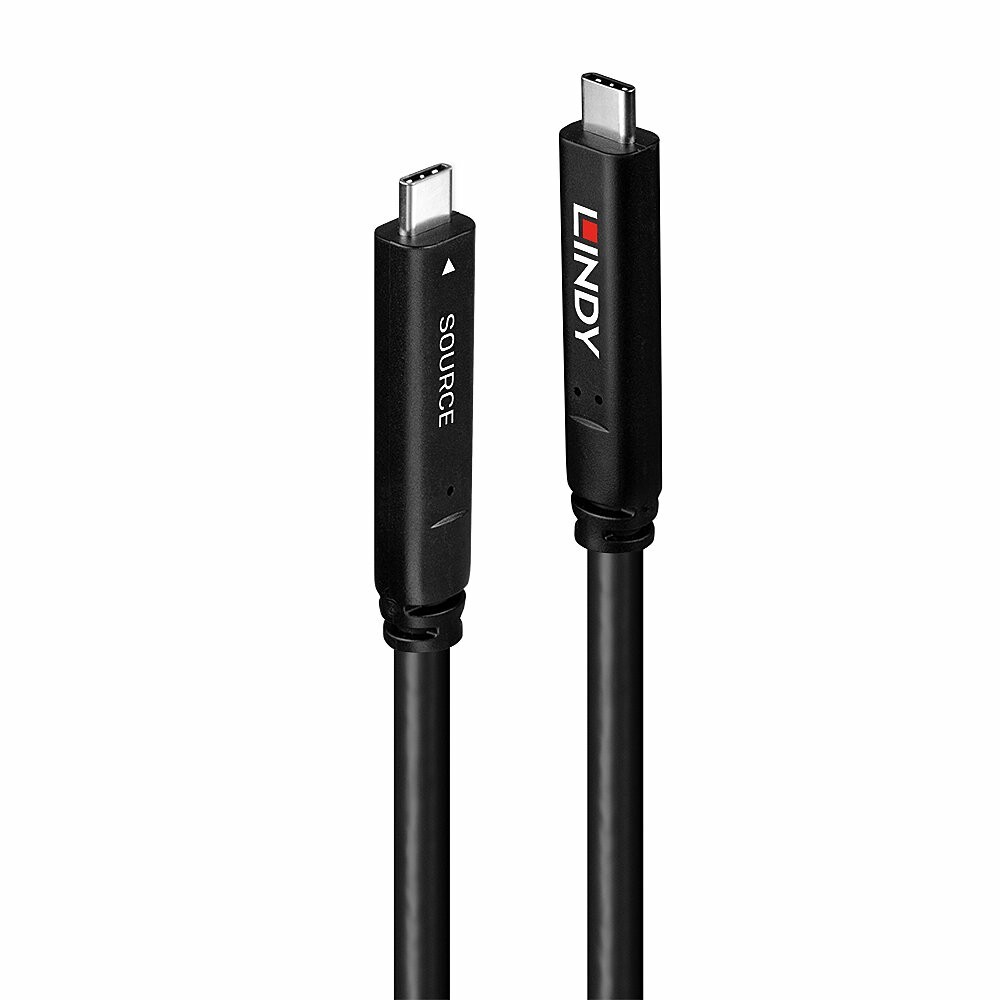

Lindy 8m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable

  • 8m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable for data and video extension
  • Data transfer rates up to 5Gbps
  • Supports DisplayPort Alternate Mode and DP 1.4 (2 lanes) with video resolutions up to 4K 3840x2160@30Hz
  • Supports Power Delivery up to 60W (20V 3A)
  • 2 Year Warranty
Lindy
43393
£263.36
Available on back-order

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

The Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 8m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.

The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss,

Lindy 8m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable. Cable length: 8 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Product colour: Black
Features
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB C
Connector 2USB C
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size21
Cable jacket materialPolyvinyl chloride (PVC)
Connector shield materialCopper
Connector housing materialPlastic
Maximum data transfer rate5 Gbit/s
Product colourBlack
USB Power Delivery up to60 W
USB Type-C DisplayPort Alternate ModeYes
DisplayPort version1.4
Maximum resolution3840 x 2160 pixels
Nominal attenuation<10dB/km@850nm,<8dB/km@1300nm
Power
Output current (max)3 A
Weight & dimensions
Cable length8 m
Cable diameter6.5 mm
Weight610 g
Bend radius (min)10 cm
Packaging data
Package typeBox
Package width240 mm
Package depth240 mm
Package height65 mm
Package weight770 g
Packaging content
Quantity per pack1 pc(s)
ManualYes
Sustainability
Sustainability complianceYes
Operational conditions
Operating temperature (T-T)-10 - 70 °C
Storage temperature (T-T)-40 - 85 °C
43393

Data sheet

USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB C
Connector 2
USB C
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black
Cable length
8 m
Quantity per pack
1 pc(s)
Maximum resolution
3840 x 2160 pixels
Maximum data transfer rate
5000 Mbit/s
Operating temperature (T-T)
-10 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Weight
610 g
Package width
240 mm
Package depth
240 mm
Package weight
770 g
Package type
Box
Manual
Yes
Output voltage
20 V
Package height
65 mm
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
AWG wire size
21
Sustainability compliance
Yes
Connector 1 form factor
Straight
Connector 2 form factor
Straight
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
60 W
Cable diameter
6.5 mm
Cable jacket material
Polyvinyl chloride (PVC)
Connector shielding
Yes
Connector shield material
Copper
Nominal attenuation
<10dB/km@850nm,<8dB/km@1300nm
Bend radius (min)
10 cm
DisplayPort version
1.4
Connector housing material
Plastic
USB Type-C DisplayPort Alternate Mode
Yes
Output current (max)
3 A

Specific References

EAN13
4002888433938
MPN
43393
