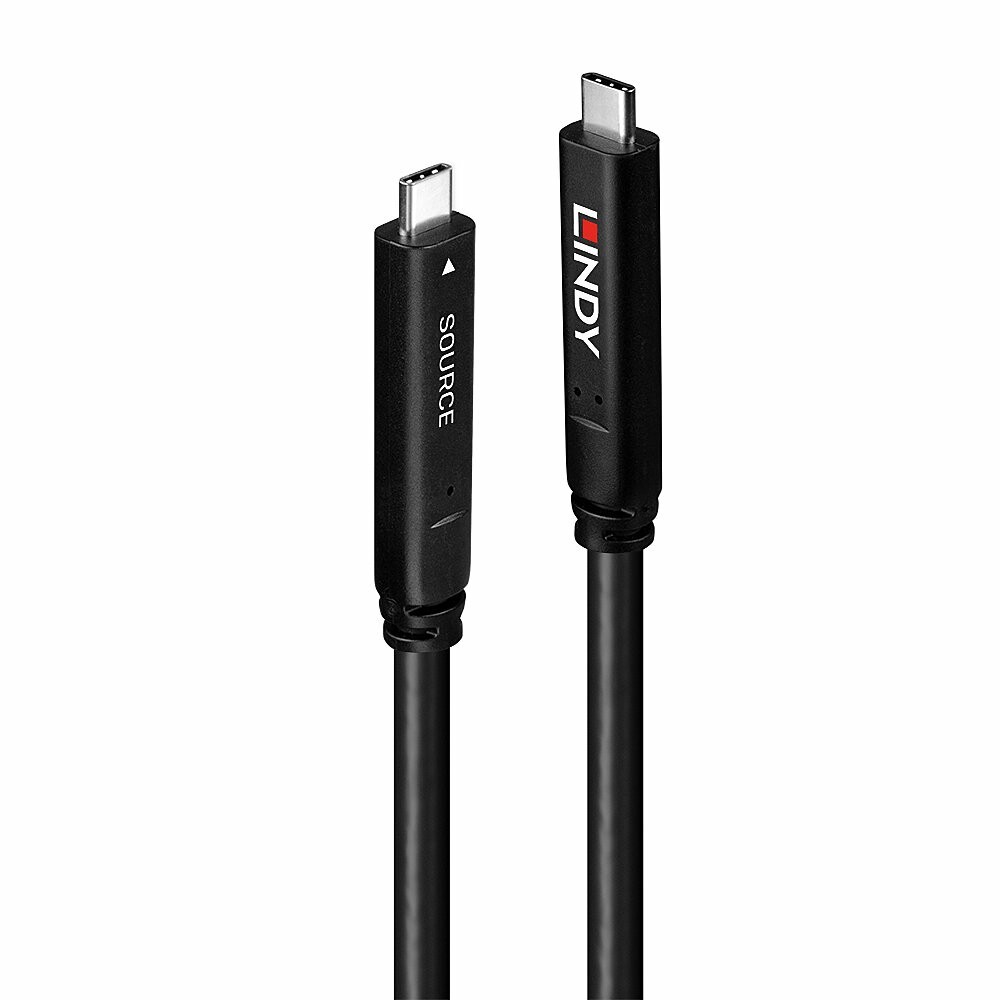

Lindy 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable
- 10m USB 3.2 Gen 2 and DP 1.4 Type C Hybrid Cable for data and video extension
- Data transfer rates up to 10Gbps
- Supports DisplayPort Alternate Mode and DP 1.4 (4 lanes) with video resolutions up to 4K 3840x2160@144Hz
- Supports Power Delivery up to 60W (20V 3A)
- 2 Year Warranty
Secure payment methods
Free Delivery On Standard UK Mainland Orders **Over £500
Returns and exchanges
The Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 8m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.
The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss,
Lindy 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable. Cable length: 10 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Product colour: Black
The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss,
Lindy 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable. Cable length: 10 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Product colour: Black
| Features | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 21 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector shield material | Copper |
| Connector housing material | Plastic |
| Maximum data transfer rate | 5 Gbit/s |
| Product colour | Black |
| USB Power Delivery up to | 60 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DisplayPort version | 1.4 |
| Maximum resolution | 3840 x 2160 pixels |
| Nominal attenuation | <10dB/km@850nm,<8dB/km@1300nm |
| Power | |
| Output current (max) | 3 A |
| Weight & dimensions | |
| Cable length | 10 m |
| Cable diameter | 6.5 mm |
| Weight | 610 g |
| Bend radius (min) | 10 cm |
| Packaging data | |
| Package type | Box |
| Package width | 240 mm |
| Package depth | 240 mm |
| Package height | 65 mm |
| Package weight | 770 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
43398
364 Items
Data sheet
- USB version
- USB 3.2 Gen 1 (3.1 Gen 1)
- Connector 1
- USB C
- Connector 2
- USB C
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Black
- Cable length
- 10 m
- Quantity per pack
- 1 pc(s)
- Maximum resolution
- 3840 x 2160 pixels
- Maximum data transfer rate
- 5000 Mbit/s
- Operating temperature (T-T)
- -10 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Weight
- 610 g
- Package width
- 240 mm
- Package depth
- 240 mm
- Package weight
- 770 g
- Package type
- Box
- Manual
- Yes
- Output voltage
- 20 V
- Package height
- 65 mm
- Compliance certificates
- CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
- AWG wire size
- 21
- Sustainability compliance
- Yes
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 60 W
- Cable diameter
- 6.5 mm
- Cable jacket material
- Polyvinyl chloride (PVC)
- Connector shielding
- Yes
- Connector shield material
- Copper
- Nominal attenuation
- <10dB/km@850nm,<8dB/km@1300nm
- Bend radius (min)
- 10 cm
- DisplayPort version
- 1.4
- Connector housing material
- Plastic
- USB Type-C DisplayPort Alternate Mode
- Yes
- Output current (max)
- 3 A
Specific References
- EAN13
- 4002888433983
- MPN
- 43398
