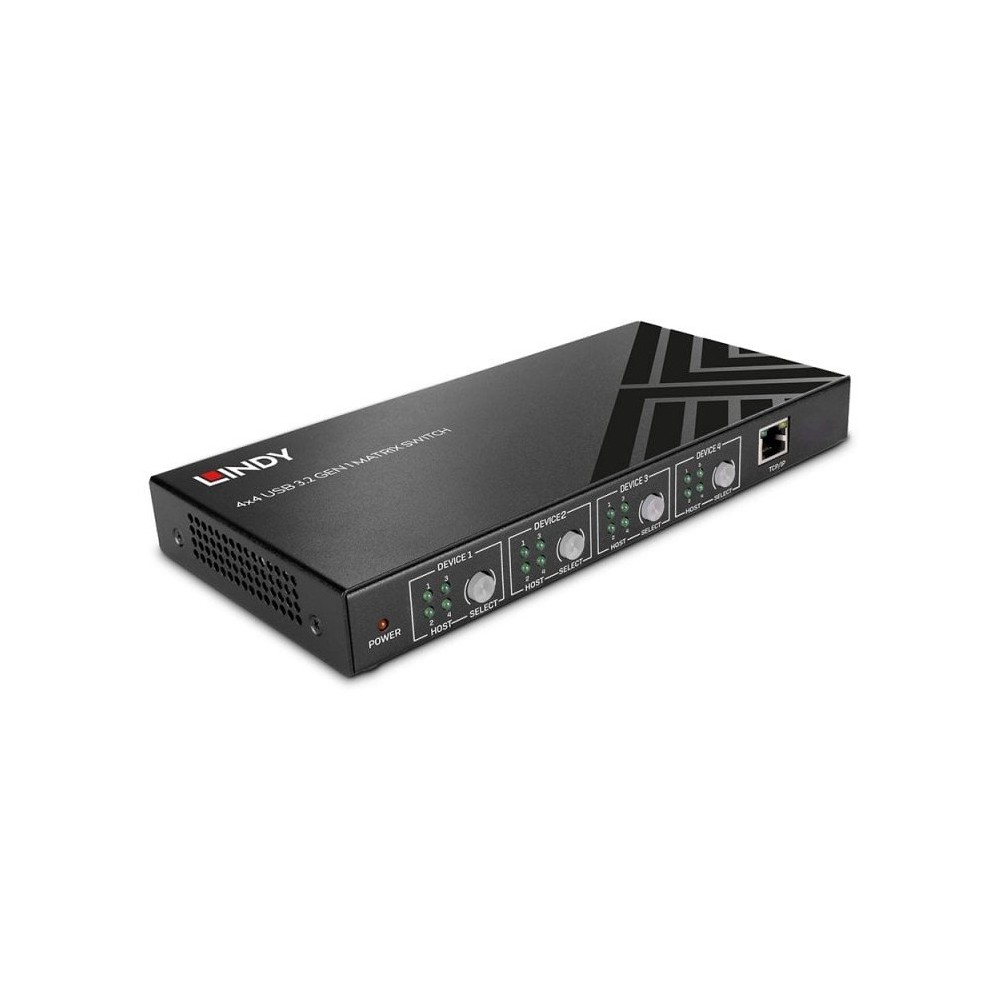

Lindy 4x4 USB 3.2 Gen 1 Matrix Switch

  • Supports USB 3.2 Gen 1 (USB 3.0), USB 2.0/1.1 backwards compatibility
  • Switching between computers with buttons, TCP/IP with web GUI or RS-232 commands
  • Matrix switch with presets function
  • Plug and Play, no software required
  • 2 Year Warranty
Lindy
43406
£413.31
Available on back-order

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

The Lindy USB 3.2 Gen 1 Matrix Switch allows the user to share up to 4 USB devices to up to 4 hosts in many different ways: by pushing the buttons on the front panel, via web GUI and using RS-232 commands.
It's possible to save up to 8 preset configurations, change the name of hosts and devices from the GUI and with the commands, for smooth and easy operations.

This matrix switch is ideal for sharing printers, storage devices or webcam in office environments, for conference room presentation systems, KVM or industrial applications. It can support USB 3.2 Gen 1 with data transfer rates up to 5Gbps, USB 2.0 and USB 1.1 devices, perfect for use with multiple PCs or Macs.
Each USB Type-A port provide up to 900mA power to the connected device.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Lindy 4x4 USB 3.2 Gen 1 Matrix Switch. Bandwidth: 5 Gbit/s. Housing colour: Black, Housing material: Metal, Control type: Rotary. USB connector type: USB Type-A, USB Type-B. AC input voltage: 12 V, Input current: 3 A. Width: 221 mm, Depth: 105 mm, Height: 26 mm
Features
Bandwidth5 Gbit/s
Design
Housing colourBlack
Housing materialMetal
Control typeRotary
LED indicatorsYes
CertificationCE, FCC, RoHS & REACH
Display
Built-in displayNo
Ports & interfaces
USB connector typeUSB Type-A, USB Type-B
USB ports quantity8
Ethernet LAN (RJ-45) ports1
RS-232 ports1
DC-in jackYes
Power
AC input voltage12 V
Input current3 A
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%
Weight & dimensions
Width221 mm
Depth105 mm
Height26 mm
Weight1.15 kg
Package typeBox
Package depth173 mm
Package height70 mm
Package weight1.45 kg
Packaging content
Cables includedUSB
ManualYes
43406

Data sheet

Built-in display
No
Housing material
Metal
Certification
CE, FCC, RoHS & REACH
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Width
221 mm
Depth
105 mm
Height
26 mm
Weight
1.15 kg
Package width
260 mm
Package depth
173 mm
Package weight
1.45 kg
Package type
Box
LED indicators
Yes
Manual
Yes
Ethernet LAN (RJ-45) ports
1
Operating relative humidity (H-H)
0 - 90%
Package height
70 mm
Input current
3 A
Cables included
USB
Control type
Rotary
USB connector type
USB Type-A, USB Type-B
AC input voltage
12 V
USB ports quantity
8
Bandwidth
5 Gbit/s
DC-in jack
Yes
Housing colour
Black
RS-232 ports
1

Specific References

EAN13
4002888434065
MPN
43406
