0 Review(s)

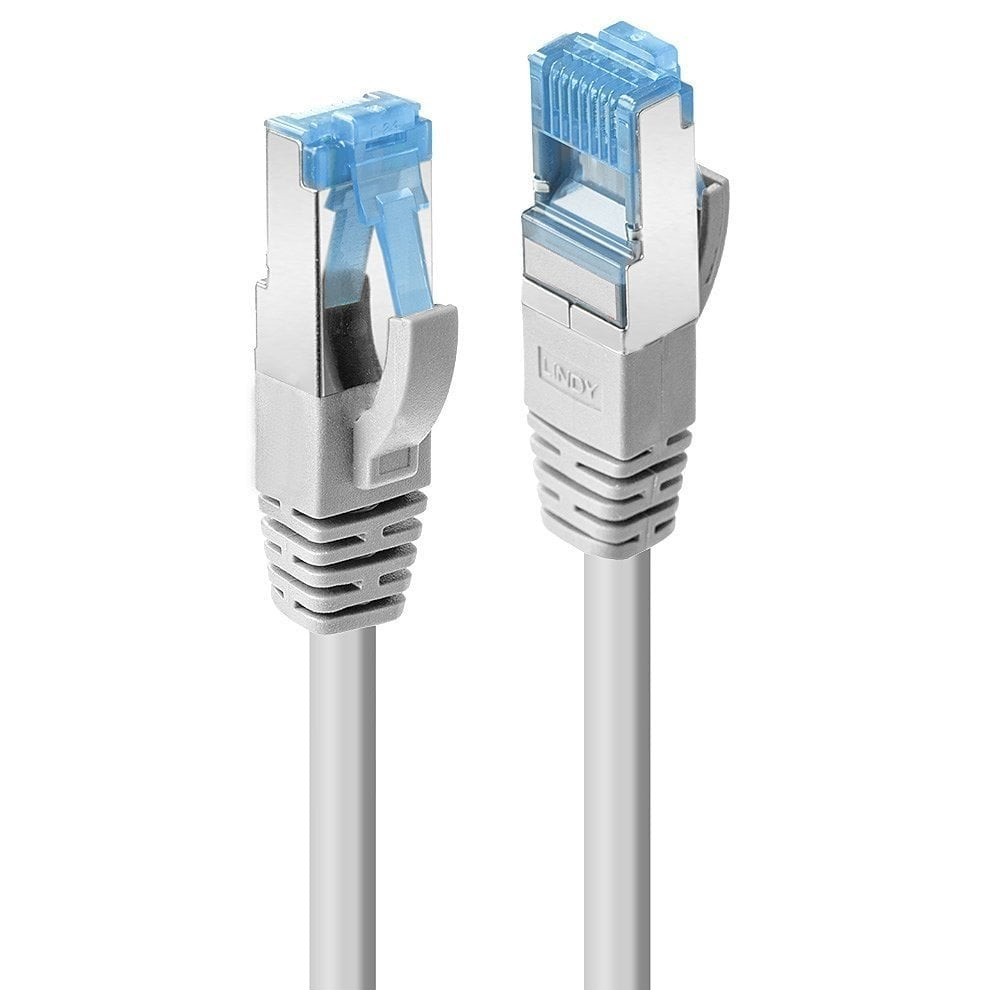

Lindy 70m Cat.6A S/FTP LSZH Cable, Grey

Twisted Pair Patch Cable with RJ45 connectors
Cat.6A S/FTP PIMF, LSZH
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 Year Warranty

Brand: Lindy

Reference: 47143

Available In Stock: 17 Items

Hurry up! only 17 items left in stock!

£70.39

Add to Wishlist

Add to Compare

In Stock

Secure Payments

Secure payment methods

Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

Returns Policy

Returns and exchanges

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Available lengths:0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 50m, 70m, 100m.

Available colours: Black, Blue, Grey, Red, White

Lindy 70m Cat.6A S/FTP LSZH Cable, Grey. Cable length: 70 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel, Data transfer rate: 1000 Mbit/s, Product colour: Grey

Features
Cable length	70 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Product colour	Grey
Connector 1	RJ-45
Connector 2	RJ-45
Connector 2 form factor	Straight
Connector contacts plating	Nickel
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor material	Copper
Cable class	Ea
Cabling technology	10GBase-T
Ethernet interface type	10 Gigabit Ethernet
AWG wire size	27
Data transfer rate	1000 Mbit/s
Frequency	500 MHz
Bend radius (min)	7.2 cm
Snagless cable boot	Yes
Plug and Play	Yes
Nominal attenuation	49.3dB/100m @ 500MHz
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Certificates
Compliance certificates	CE, REACH, RoHS
Certification	RoHS, REACH, UL
Weight & dimensions
Outer diameter	6 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	11.6 mm
Package depth	21.5 mm
Package height	8.3 mm
Package type	Polybag
Logistics data
Harmonized System (HS) code	84733080

Reference 47143

In stock 17 Items

Data sheet

Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Grey
Cable length: 70 m
Quantity per pack: 1 pc(s)
Connector contacts plating: Nickel
Data transfer rate: 1000 Mbit/s
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Jacket material: Low smoke zero halogen (LSZH)
Certification: RoHS, REACH, UL
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C
Package width: 11.6 mm
Package depth: 21.5 mm
Package type: Polybag
Harmonized System (HS) code: 84733080
Package height: 8.3 mm
Compliance certificates: CE, REACH, RoHS
Ethernet interface type: 10 Gigabit Ethernet
AWG wire size: 27
Sustainability compliance: Yes
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Plug and Play: Yes
Conductor material: Copper
Nominal attenuation: 49.3dB/100m @ 500MHz
Bend radius (min): 7.2 cm
Cabling technology: 10GBase-T
Frequency: 500 MHz
Cable class: Ea
Outer diameter: 6 mm
Cable shape: Round
Snagless cable boot: Yes

Specific References

EAN13: 4002888471435
MPN: 47143
