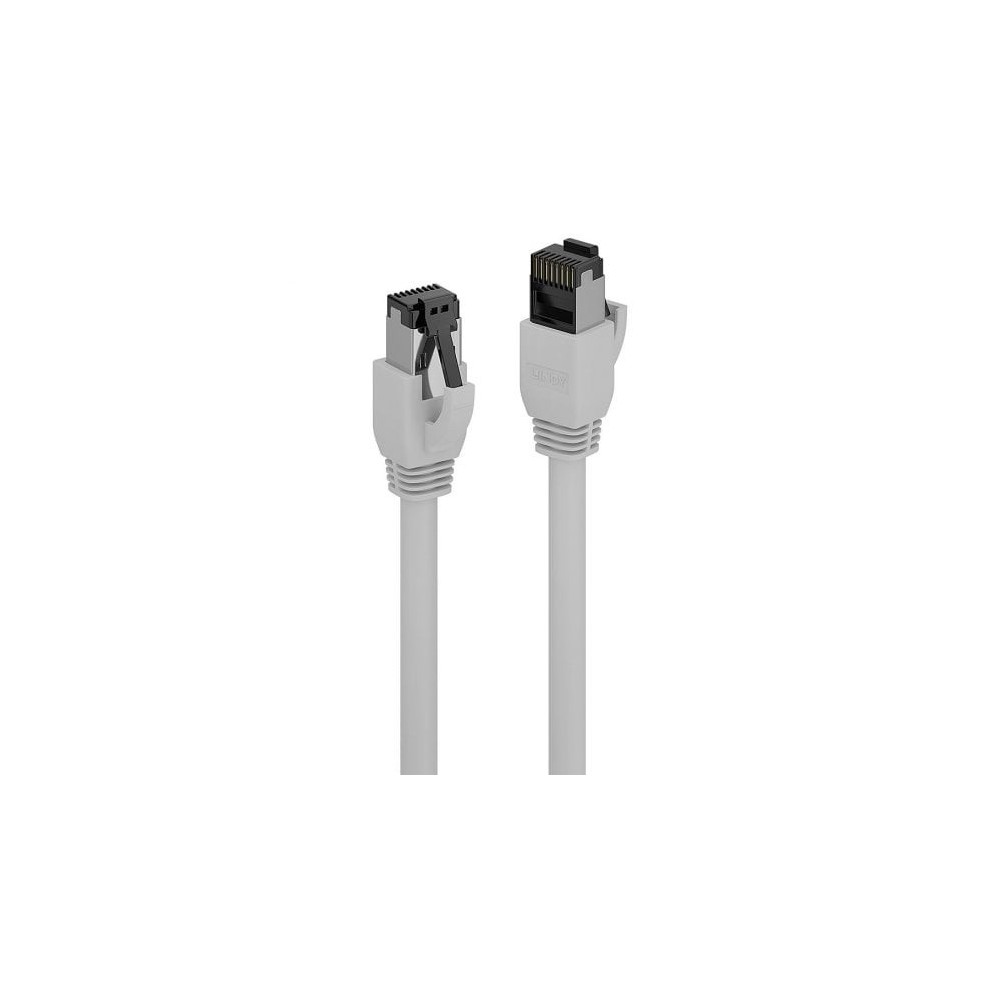

Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.8.1 S/FTP PIMF, LSZH
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
- 10 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
Cat.8.1 S/FTP LSZH network cable with support for bandwidth up to 2000MHz and features a snagless design with gold plated contacts for ethernet standards up to 40GBase-T.
Cat.8.1 cable with S/FTP shielding (braid for overall shield and foil shield for each individual wire pair). With operating frequencies up to 2000MHz they are equipped for ethernet standards 25GBase-T and 40GBase-T. These cables are manufactured and tested according to the ISO/IEC 11801 specification.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available in the following lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m
Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey. Cable length: 5 m, Cable standard: Cat8.1, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel, Product colour: Grey
Cat.8.1 cable with S/FTP shielding (braid for overall shield and foil shield for each individual wire pair). With operating frequencies up to 2000MHz they are equipped for ethernet standards 25GBase-T and 40GBase-T. These cables are manufactured and tested according to the ISO/IEC 11801 specification.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available in the following lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m
Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey. Cable length: 5 m, Cable standard: Cat8.1, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel, Product colour: Grey
| Features | |
| Cable length | 5 m |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Product colour | Grey |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Frequency | 2000 MHz |
| Bend radius (min) | 6 cm |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 38.5 mm |
| Height | 17 mm |
| Outer diameter | 7.5 mm |
| Packaging data | |
| Package type | Polybag |
47446
3 Items
Data sheet
- Connector 1
- RJ-45
- Connector 2
- RJ-45
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Grey
- Cable length
- 5 m
- Connector contacts plating
- Nickel
- Cable standard
- Cat8.1
- Cable shielding
- S/FTP (S-STP)
- Jacket material
- Low smoke zero halogen (LSZH)
- Operating temperature (T-T)
- -10 - 60 °C
- Storage temperature (T-T)
- -20 - 75 °C
- Width
- 12 mm
- Depth
- 38.5 mm
- Height
- 17 mm
- Package type
- Polybag
- Compliance certificates
- REACH, RoHS
- AWG wire size
- 26
- Sustainability compliance
- Yes
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Conductor material
- Copper
- Connector shielding
- Yes
- Connector shield material
- Aluminium
- Bend radius (min)
- 6 cm
- Frequency
- 2000 MHz
- Outer diameter
- 7.5 mm
Specific References
- EAN13
- 4002888474467
- MPN
- 47446
