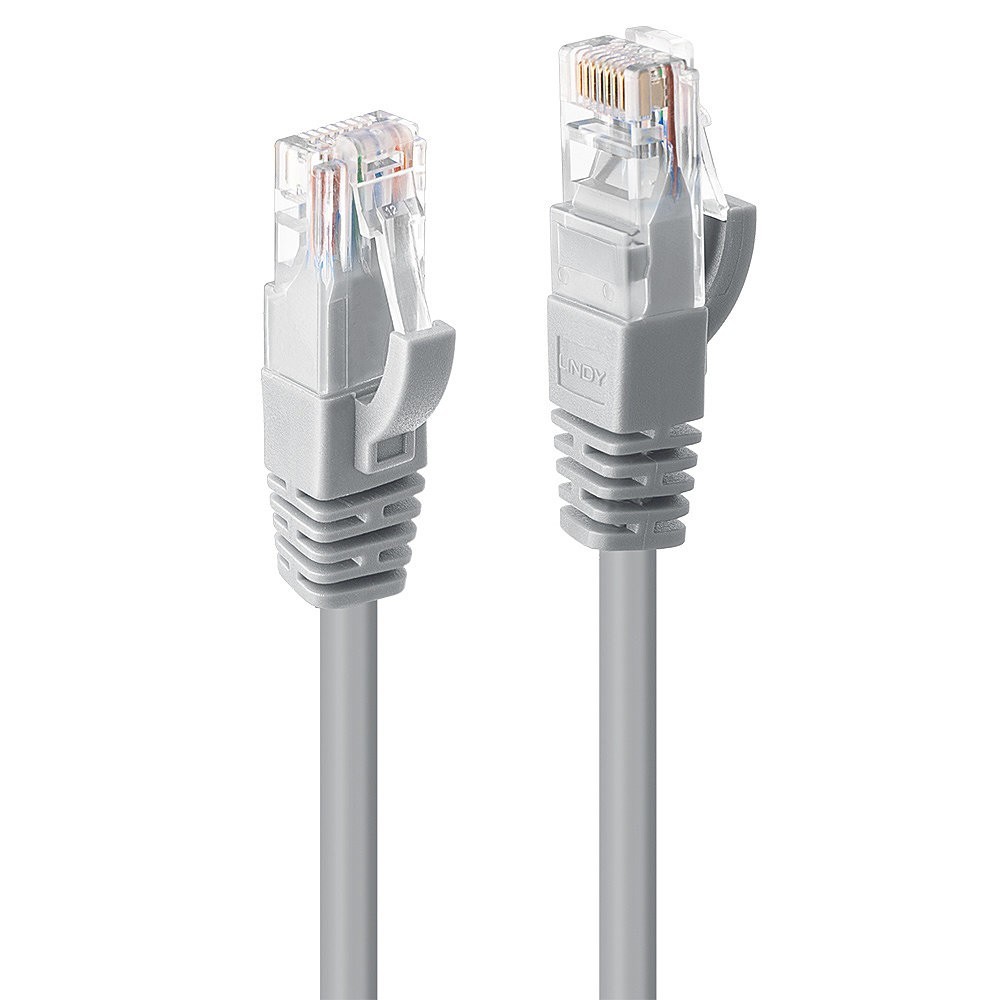

Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

Lindy 5m Cat.6 U/UTP Network Cable, Grey. Cable length: 5 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 1000 Mbit/s, Product colour: Grey

Features
Cable length	5 m
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Product colour	Grey
Connector 1	RJ-45
Connector 2	RJ-45
Connector 2 gender	Male
Connector contacts plating	Gold
Connector shield material	Copper alloy
Jacket material	Polyvinyl chloride (PVC)
Cable shape	Round
Conductor material	Copper
Connector housing material	Polycarbonate (PC)
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
AWG wire size	24
Data transfer rate	1000 Mbit/s
Frequency	250 MHz
Bend radius (min)	6.9 cm
Snagless cable boot	Yes
Nominal attenuation	32.8dB/100m @250MHz
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Certificates
Certification	RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Outer diameter	5.8 mm
Connector 2 dimensions (WxDxH)	11.6 x 22.8 x 8.3 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package type	Polybag
Logistics data
Harmonized System (HS) code	84733080
