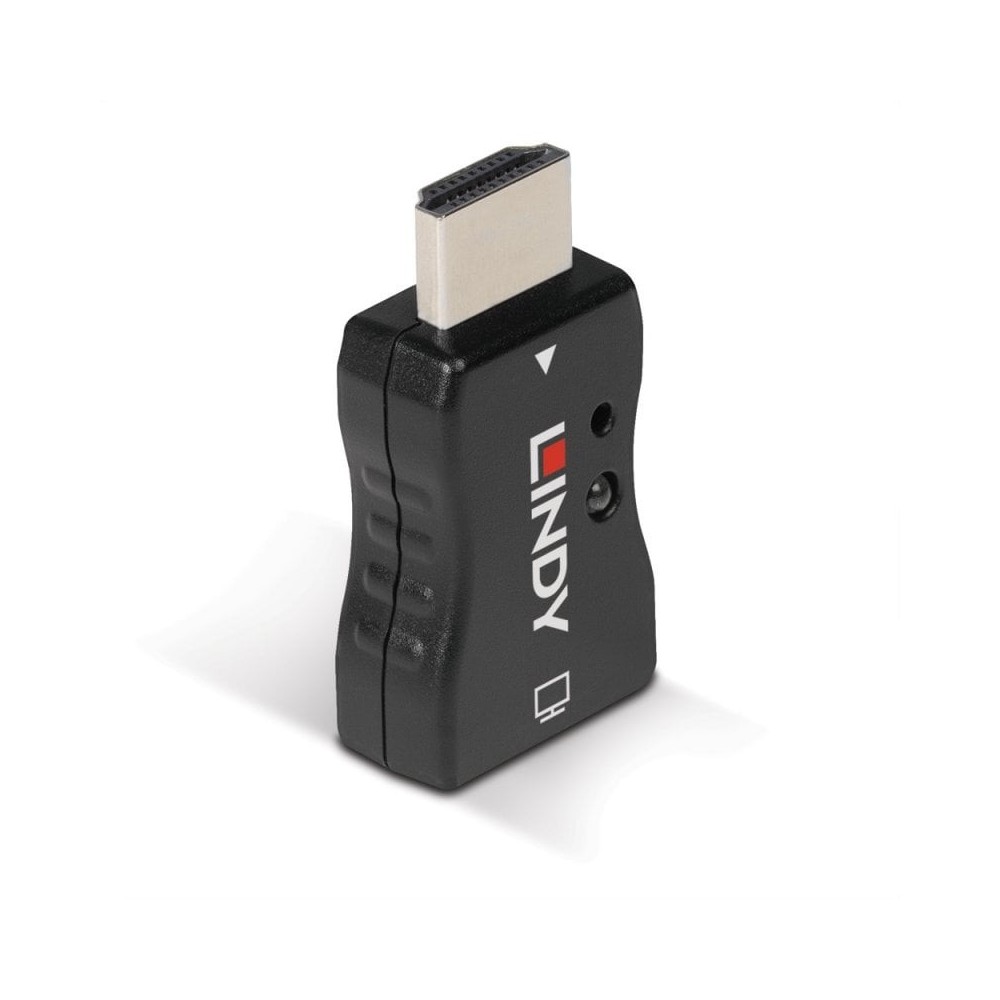

The Lindy HDMI 2.1 EDID Emulator Adapter is designed for systems that require an uninterrupted signal to overcome EDID related issues that commonly occur when using AV equipment such KVM's, Extenders, Splitters & Switches. With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new HDMI equipment works seamlessly with no compromise on performance.

The Emulator also features LED indicators to ensure a quick simple installation process and with support for resolutions up to 7620x4320@60Hz or 3840x2160@120Hz HDR (Via cloning), HDCP 2.3 pass-through, this emulator is perfect for use with Ultra HD 4K monitors.

This adapter can be used to quickly and easily clone the EDID data from the HDMI display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds; Alternatively the EDID Emulator is configured with a preset EDID which uses the most common resolutions/timing combinations. Please see the technical information section for a full breakdown.

Lindy HDMI 2.1 EDID Emulator. Maximum video resolution: 4096 x 2160 pixels, Video resolutions: 640 x 480,720 x 400,720 x 480,720 x 576,800 x 600,832 x 624,1024 x 768,1280 x 1024,1280 x 720,1280..., Audio output channels: 2.1 channels. Product colour: Black, Housing material: ABS, Certification: CE, FCC, RoHS, REACH. Video port type: HDMI. Package type: Polybag. Width: 24.1 mm, Depth: 44.2 mm, Height: 11.8 mm

Features
Maximum video resolution	4096 x 2160 pixels
Video resolutions	640 x 480,720 x 400,720 x 480,720 x 576,800 x 600,832 x 624,1024 x 768,1280 x 1024,1280 x 720,1280 x 800,1440 x 900,1600 x 900,1680 x 1050,1920 x 1080,2560 x 1440,3840 x 2160,4096 x 2160
Audio output channels	2.1 channels
Audio formats supported	LPCM
Design
Product colour	Black
Housing material	ABS
Certification	CE, FCC, RoHS, REACH
Ports & interfaces
Video port type	HDMI
Number of video inputs	1
Number of video outputs	1
HDCP	Yes
Weight & dimensions
Width	24.1 mm
Depth	44.2 mm
Height	11.8 mm
Weight	8.8 g
Packaging data
Package width	133 mm
Package depth	144 mm
Package weight	22 g
