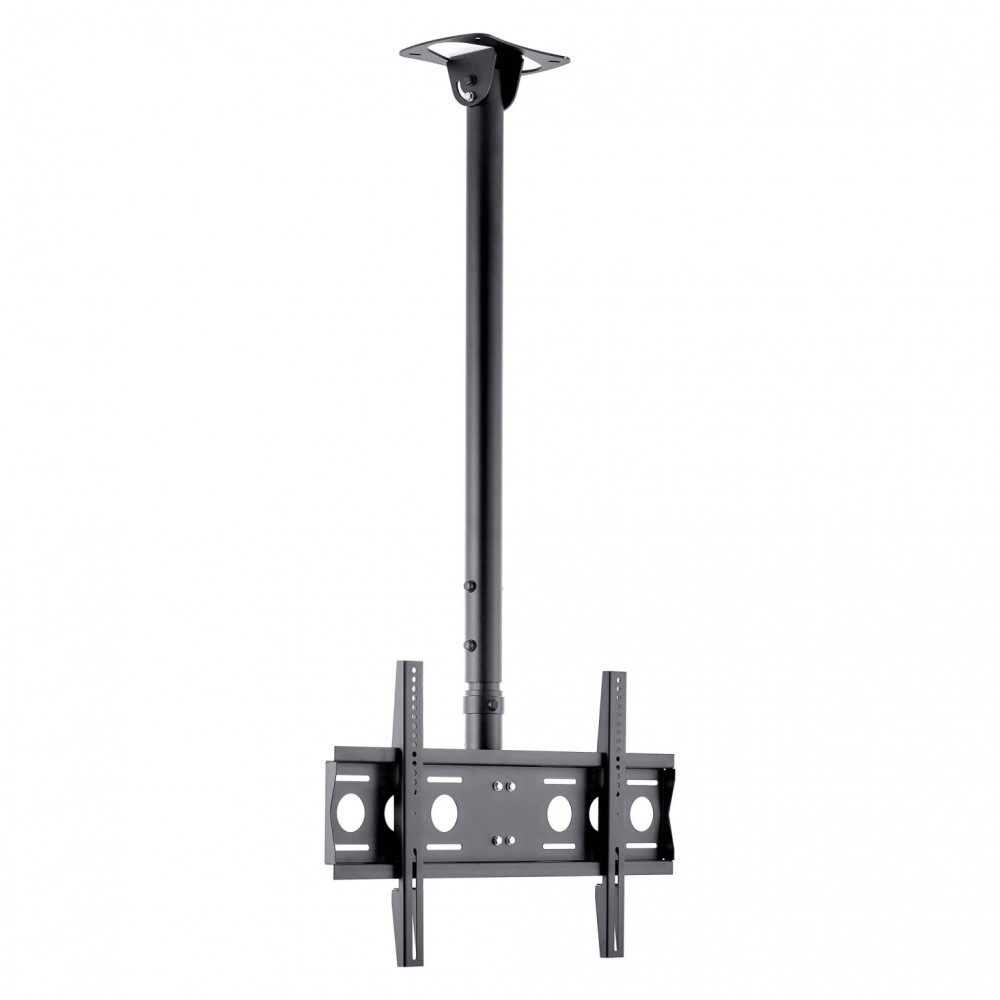

The CMS21 robust monitor or TV mount is a solution for those who value aesthetics and precision of design. Equipped with a system that protects the screen against falling, it works perfectly in hotels, restaurants or public buildings. CMS21 features a slim structure and simple design. Stepwise height adjustment ensures accurate fastening, and the integrated cable management system allows the cabling to be hidden, guaranteeing aesthetic appearance of any audiovisual installation.

Edbak CMS21. Maximum weight capacity: 60 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment, Tilt angle range: -6 - 12°. Product colour: Black

Mounting
Number of displays supported	1
Maximum weight capacity	60 kg
Minimum screen size	101.6 cm (40")
Maximum screen size	190.5 cm (75")
Mounting type	Ceiling
Suitable for TV	Yes
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Ergonomics
Height adjustment	Yes
Tilt adjustment	Yes
Tilt angle range	-6 - 12°
Design
Product colour	Black
Easy to install	Yes
Weight & dimensions
Width	800 mm
Depth	200 mm
Height	1545 mm
Weight	18.5 kg
Packaging data
Package width	1310 mm
Package depth	315 mm
Package height	170 mm
Package weight	19.5 kg
Other features
Certification	RoHS
