- New
Yealink MVC S40 Microsoft Teams Rooms System for Small to Medium Rooms
- Dual 48 MP lens
- AI features (eg. IntelliFocus, Multi-Stream IntelliFrame)
- 6m duplex voice pick-up with Al-Enhanced Noise Cancellation
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges

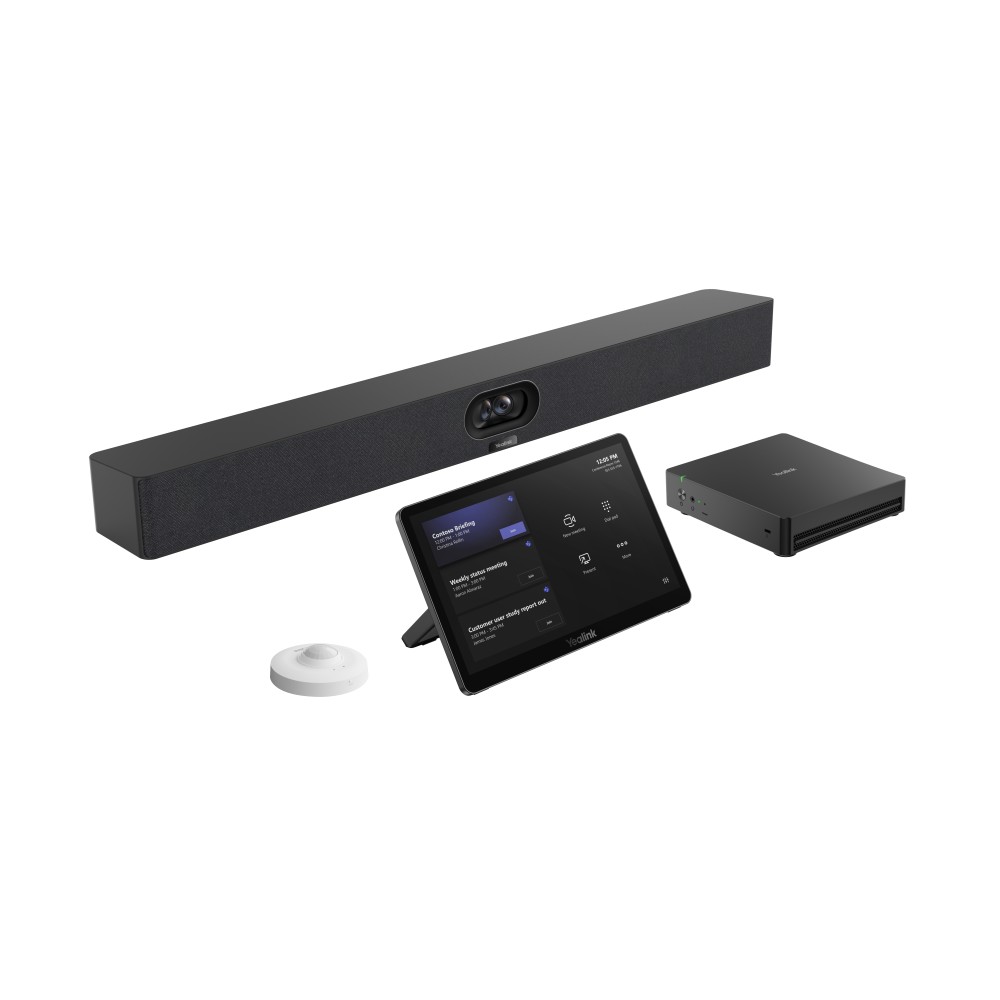

Designed for medium to large meeting rooms, MVC S40 is a bundle solution with all-in-one video bar SmartVision 40, mini-PC MCore 4 and touch panel MTouch Plus. It features advanced AI features powered by unrivalled dual 48MP lens system and future-proof computing power, supporting easy deployment & flexible design.
Yealink - MVC S40-C5U-000. Product type: Group video conferencing system. Total megapixels: 45 MP, HD type: 4K Ultra HD, Supported video modes: 1080p, 2160p, Maximum frame rate: 30 fps. Field of view (FOV) angle: 120°, Digital zoom: 6x. Ethernet LAN, Wi-Fi. Bluetooth. Display: IPS, Display diagonal: 29.5 cm (11.6"), Display resolution: 1920 x 1080 pixels. Product colour: Black, Grey
| Performance | |
| Product type | Group video conferencing system |
| Number of cameras | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Product colour | Black, Grey |
| Meeting features | Content sharing |
| Video | |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Total megapixels | 45 MP |
| Supported video modes | 1080p, 2160p |
| Maximum frame rate | 30 fps |
| Streaming capability | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Noise reduction | Yes |
| Memory | |
| Internal memory type | DDR5 |
| Storage media type | SSD |
| Total storage capacity | 256 GB |
| Ports & interfaces | |
| HDMI input ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Reset slot | Yes |
| Interface module | |
| Interface module HDMI input ports quantity | 1 |
| Interface module HDMI output ports quantity | 3 |
| Interface module RJ-45 ports quantity | 2 |
| Interface module DC input port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Camera | |
| Megapixel (approx.) | 48 MP |
| Camera type | Dual camera |
| Second camera resolution | 48 MP |
| Digital zoom | 6x |
| Field of view (FOV) angle | 120° |
| Horizontal field of view | 111° |
| Display | |
| Built-in display | Yes |
| Display | IPS |
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Microphone | |
| Number of microphone arrays | 8 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Interface module dimensions (W x D x H) | 188 x 188 x 47.5 mm |
| Weight | 9.27 kg |
| Packaging data | |
| Package width | 743 mm |
| Package depth | 304 mm |
| Package height | 280 mm |
| Packaging content | |
| External interface module included | Yes |
| Camera included | Yes |
MVC S40-C5U-000
163 Items
Data sheet
- Product colour
- Black, Grey
- HD type
- 4K Ultra HD
- Built-in display
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- Product type
- Group video conferencing system
- Megapixel (approx.)
- 48 MP
- Maximum video resolution
- 3840 x 2160 pixels
- Headphone outputs
- 1
- Ethernet LAN
- Yes
- Storage media type
- SSD
- Operating temperature (T-T)
- 0 - 40 °C
- Weight
- 9.27 kg
- Package width
- 743 mm
- Package depth
- 304 mm
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Operating relative humidity (H-H)
- 10 - 95%
- Package height
- 280 mm
- Wi-Fi
- Yes
- Country of origin
- China
- Supported video modes
- 1080p, 2160p
- HDMI input ports quantity
- 1
- HDMI output ports quantity
- 3
- Maximum frame rate
- 30 fps
- Noise reduction
- Yes
- Display diagonal
- 29.5 cm (11.6")
- Display resolution
- 1920 x 1080 pixels
- Number of speakers
- 2
- Bluetooth
- Yes
- Bluetooth version
- 5.2
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Touchscreen
- Yes
- Built-in speaker(s)
- Yes
- Processor family
- Intel Core Ultra 5
- Internal memory
- 16000 MB
- Line-in
- Yes
- Digital zoom
- 6x
- Internal memory type
- DDR5
- Total storage capacity
- 256 GB
- Camera type
- Dual camera
- Display
- IPS
- Computer system type
- Mini PC
- Camera included
- Yes
- Number of cameras
- 2
- Cable lock slot
- Yes
- Number of microphone arrays
- 8
- Second camera resolution
- 48 MP
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
- Total megapixels
- 45 MP
- Reset slot
- Yes
- Horizontal field of view
- 111°
- Field of view (FOV) angle
- 120°
- Meeting features
- Content sharing
- Streaming capability
- Yes
- Interface module HDMI input ports quantity
- 1
- Interface module HDMI output ports quantity
- 3
- Interface module RJ-45 ports quantity
- 2
- Interface module DC input port
- Yes
- Applications supported
- Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings, Yeallink RoomConnect
- Interface module dimensions (W x D x H)
- 188 x 188 x 47.5 mm
- External interface module included
- Yes
Specific References
- EAN13
- 6938818323780
- MPN
- 1106893
