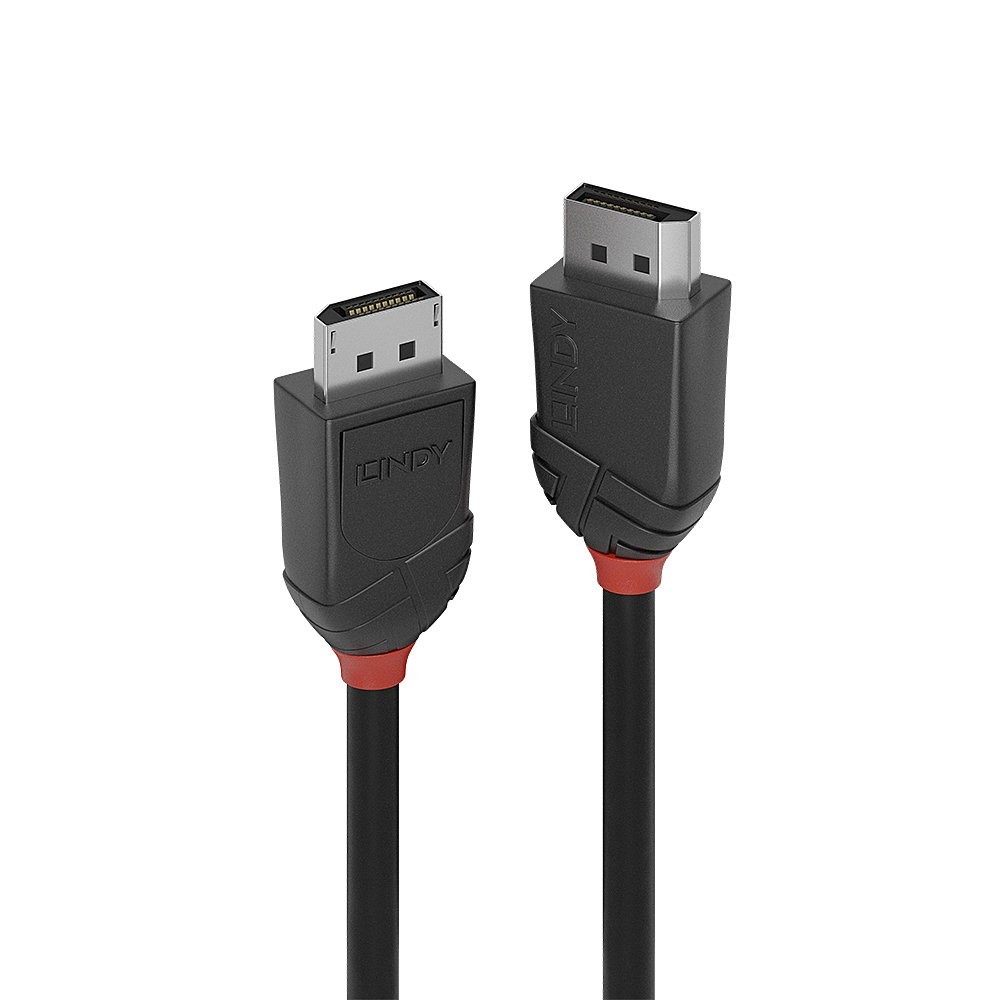

Lindy 1m DisplayPort 1.2 Cable, Black Line

  • Entry level DisplayPort cable for home and small office applications
  • Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
  • Robust PVC housing, nickel connectors, 24K gold plated contacts
  • Triple shielded cable, corrosion resistant copper 30AWG conductors
  • DisplayPort 1.2, 4K, 3D, 21.6Gbps
  • 10 Year Warranty
Lindy
36491
929 Items
Hurry up! only 929 items left in stock!
£7.05
In Stock

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

Black Line DisplayPort cables are available in lengths from 0.5m to 3m.

Lindy 1m DisplayPort 1.2 Cable, Black Line. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, Certification: RoHS, REACH, UL. Cable diameter: 6 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
Features
Cable length1 m
Connector 1DisplayPort
Connector 2DisplayPort
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
DisplayPort version1.2
Maximum resolution4096 x 2160 pixels
Supported graphics resolutions4096 x 2160
Supported video modes2160p
Product colourBlack
Cable materialCopper
Cable shieldingCopper
Jacket materialPolyvinyl chloride (PVC)
Connector housing materialAcrylonitrile butadiene styrene (ABS)
AWG wire size30
Data transfer rate21.6 Gbit/s
Connector materialNickel
Plug and PlayYes
Cable typeRound cable
Nominal attenuation300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
Operational conditions
Operating temperature (T-T)-20 - 80 °C
Storage temperature (T-T)-25 - 85 °C
Certificates
Compliance certificatesRoHS
CertificationRoHS, REACH, UL
Weight & dimensions
Cable diameter6 mm
Connector 1 dimensions (WxDxH)21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH)21 x 38.9 x 13.6 mm
Bend radius (min)4.8 cm
Packaging data
Package typePolybag
Packaging content
Quantity per pack1 pc(s)
Logistics data
Harmonized System (HS) code84733080
36491
929 Items

Data sheet

Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black
Cable length
1 m
Quantity per pack
1 pc(s)
Connector contacts plating
Gold
Maximum resolution
4096 x 2160 pixels
Data transfer rate
21.6 Gbit/s
Cable shielding
Copper
Jacket material
Polyvinyl chloride (PVC)
Certification
RoHS, REACH, UL
Operating temperature (T-T)
-20 - 80 °C
Storage temperature (T-T)
-25 - 85 °C
Package type
Polybag
Harmonized System (HS) code
84733080
Compliance certificates
RoHS
AWG wire size
30
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Plug and Play
Yes
Cable type
Round cable
Connector material
Nickel
Cable material
Copper
Cable diameter
6 mm
Connector 1 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Nominal attenuation
300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
Bend radius (min)
4.8 cm
Connector 2 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Supported graphics resolutions
4096 x 2160
Supported video modes
2160p
DisplayPort version
1.2
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Contact material
Phosphor bronze
Colour sampling
4:4:4

Specific References

EAN13
4002888364911
MPN
36491
