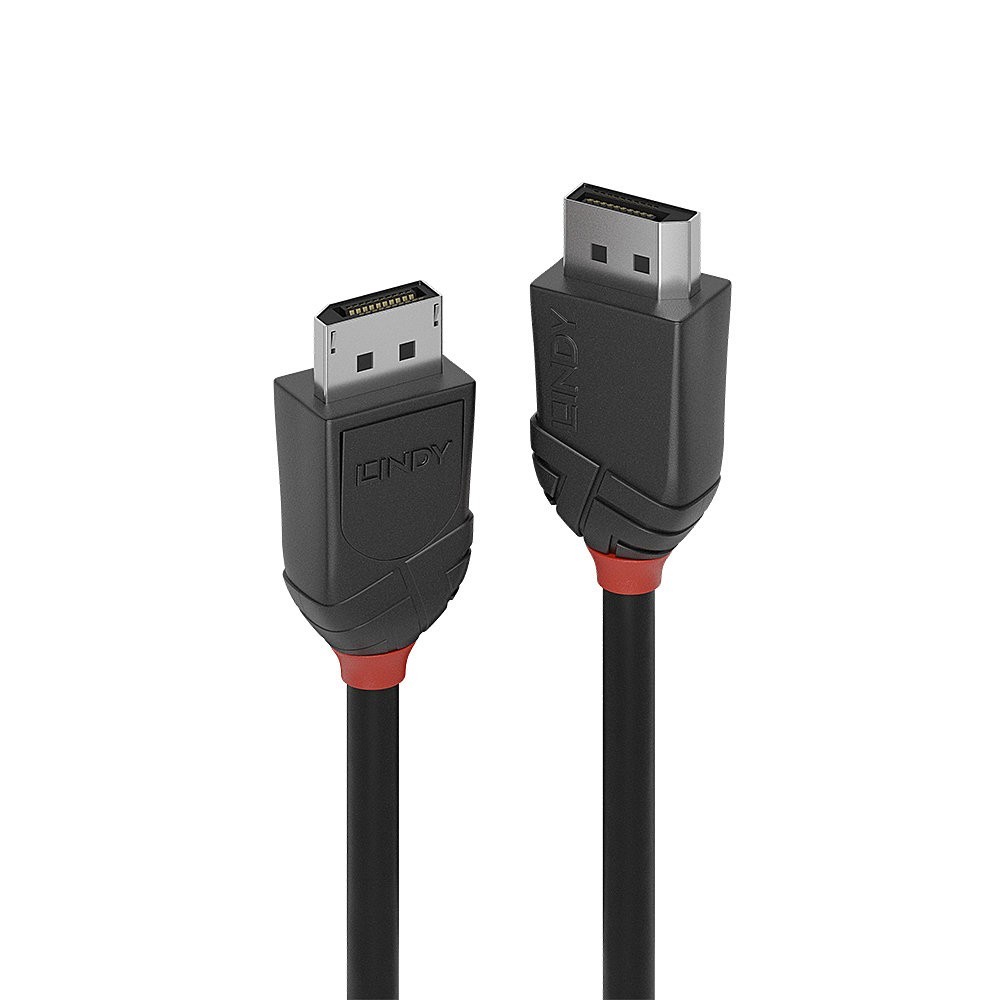

Lindy 3m DisplayPort 1.2 Cable, Black Line
- Entry level DisplayPort cable for home and small office applications
- Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
- Robust PVC housing, nickel connectors, 24K gold plated contacts
- Triple shielded cable, corrosion resistant copper 30AWG conductors
- DisplayPort 1.2, 4K, 3D, 21.6Gbps
- 10 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths from 0.5m to 3m.
Lindy 3m DisplayPort 1.2 Cable, Black Line. Cable length: 3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 6 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths from 0.5m to 3m.
Lindy 3m DisplayPort 1.2 Cable, Black Line. Cable length: 3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 6 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
| Features | |
| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Cable material | Copper |
| Cable shielding | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 30 |
| Data transfer rate | 21.6 Gbit/s |
| Connector material | Nickel |
| Plug and Play | Yes |
| Cable type | Round cable |
| Nominal attenuation | 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
| Cable diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Bend radius (min) | 4.8 cm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
36493
1540 Items
Data sheet
- Connector 1
- DisplayPort
- Connector 2
- DisplayPort
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Black
- Cable length
- 3 m
- Quantity per pack
- 1 pc(s)
- Connector contacts plating
- Gold
- Maximum resolution
- 4096 x 2160 pixels
- Data transfer rate
- 21.6 Gbit/s
- Cable shielding
- Copper
- Jacket material
- Polyvinyl chloride (PVC)
- Certification
- RoHS, REACH, UL
- Operating temperature (T-T)
- -20 - 80 °C
- Storage temperature (T-T)
- -25 - 85 °C
- Package type
- Polybag
- Harmonized System (HS) code
- 84733080
- AWG wire size
- 30
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Plug and Play
- Yes
- Cable type
- Round cable
- Connector material
- Nickel
- Cable material
- Copper
- Cable diameter
- 6 mm
- Connector 1 dimensions (WxDxH)
- 21 x 38.9 x 13.6 mm
- Nominal attenuation
- 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
- Bend radius (min)
- 4.8 cm
- Connector 2 dimensions (WxDxH)
- 21 x 38.9 x 13.6 mm
- Supported graphics resolutions
- 4096 x 2160
- Maximum refresh rate
- 60 Hz
- DisplayPort version
- 1.2
- Connector housing material
- Acrylonitrile butadiene styrene (ABS)
- Contact material
- Phosphor bronze
- Colour sampling
- 4:4:4
Specific References
- EAN13
- 4002888364935
- MPN
- 36493
