The Anthra Line USB 3.2 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

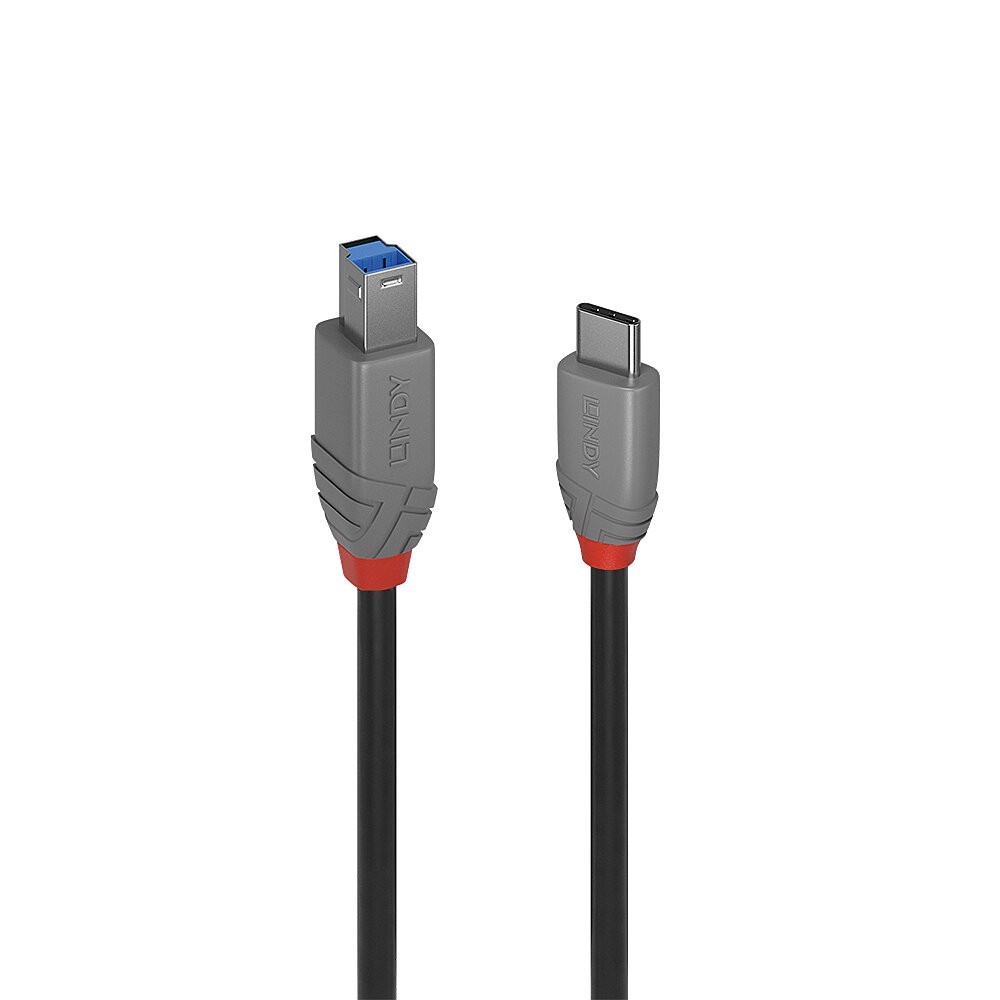

Lindy 3m USB 3.2 Type C to B Cable, Anthra Line. Cable length: 3 m. Connector 1: USB C, Connector 2: USB B, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Connector contacts plating: Nickel, Product colour: Black

Features
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB C
Connector 2	USB B
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	22/30
Connector contacts plating	Nickel
Cable jacket material	Nylon/Polyvinyl Chloride (PVC)
Connector shield material	Copper
Maximum data transfer rate	500 Mbit/s
Cable type	Round cable
Weight & dimensions
Cable length	3 m
Cable diameter	4.3 mm
Bend radius (min)	2.5 cm
Connector 1 dimensions (WxDxH)	10.8 x 32 x 7.8 mm
Connector 2 dimensions (WxDxH)	12.2 x 46 x 10 mm
Packaging data
Package type	Polybag
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 70 °C
