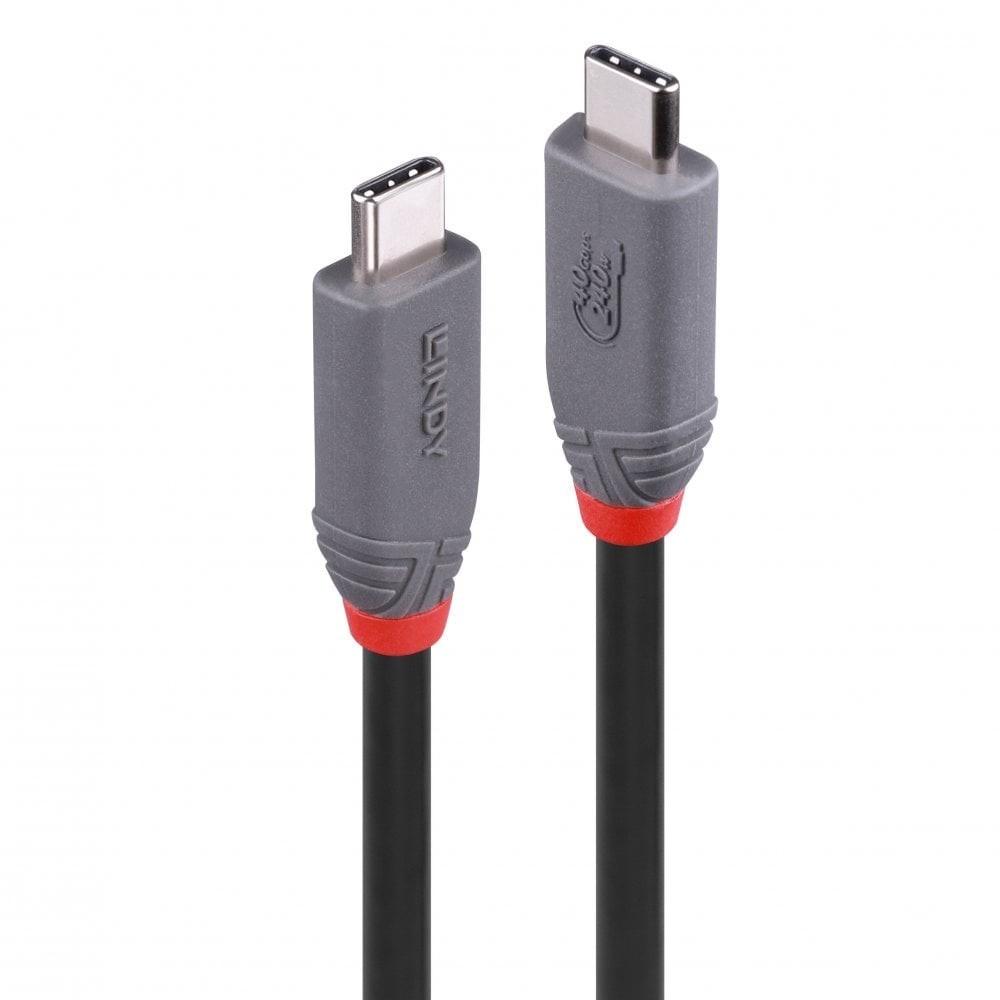

Lindy 0.8m USB 4 240W Type C Cable, Anthra Line
- Professional choice USB 4 Gen 3x2 Type C to C cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 40Gbps (backwards compatible to USB 3.2 , USB 2.0 and Thunderbolt 3)
- Supports USB Power Delivery up to 240 Watt and DisplayPort 2.0 Alternate Mode with single 8K or dual 4K@60Hz
- Triple shielded coaxial cable, gold plated contacts and nickel plated connectors
- 2 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Lindy 0.8m USB 4 240W Type C Cable, Anthra Line. Cable length: 0.8 m. Connector 1: USB C, Connector 2: USB C, USB version: USB4 Gen 3x2, Maximum data transfer rate: 40 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Lindy 0.8m USB 4 240W Type C Cable, Anthra Line. Cable length: 0.8 m. Connector 1: USB C, Connector 2: USB C, USB version: USB4 Gen 3x2, Maximum data transfer rate: 40 Gbit/s, Connector contacts plating: Gold, Product colour: Black
| Features | |
| USB version | USB4 Gen 3x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 23/30/34 |
| Connector material | Nickel |
| Connector contacts plating | Gold |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Connector shield material | Copper |
| Maximum data transfer rate | 40 Gbit/s |
| Cable type | Round cable |
| Plug and Play | Yes |
| USB Power Delivery up to | 240 W |
| Maximum refresh rate | 60 Hz |
| Weight & dimensions | |
| Cable length | 0.8 m |
| Cable diameter | 4.8 mm |
| Bend radius (min) | 2.88 cm |
| Connector 1 dimensions (WxDxH) | 30 x 12.4 x 6.5 mm |
| Connector 2 dimensions (WxDxH) | 30 x 12.4 x 6.5 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability certificates | UL ECOLOGO |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Logistics data | |
| Warranty period | 2 year(s) |
36956
56 Items
Data sheet
- USB version
- USB4 Gen 3x2
- Connector 1
- USB C
- Connector 2
- USB C
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Black
- Cable length
- 0.8 m
- Quantity per pack
- 1 pc(s)
- Connector contacts plating
- Gold
- Maximum resolution
- 3840 x 2160 pixels
- Maximum data transfer rate
- 40000 Mbit/s
- Certification
- RoHS, REACH, California Proposition 65 & UL
- Operating temperature (T-T)
- -20 - 40 °C
- Storage temperature (T-T)
- -40 - 80 °C
- Compliance certificates
- REACH, RoHS
- AWG wire size
- 23/30/34
- Warranty period
- 2 year(s)
- Sustainability compliance
- Yes
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Plug and Play
- Yes
- Cable type
- Round cable
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery revision
- 3.1
- USB Power Delivery up to
- 240 W
- Connector material
- Nickel
- Sustainability certificates
- UL ECOLOGO
- Cable diameter
- 4.8 mm
- Connector 1 dimensions (WxDxH)
- 30 x 12.4 x 6.5 mm
- Cable jacket material
- Thermoplastic elastomer (TPE)
- Conductor material
- Copper
- Connector shielding
- Yes
- Connector shield material
- Copper
- Bend radius (min)
- 2.88 cm
- Connector 2 dimensions (WxDxH)
- 30 x 12.4 x 6.5 mm
- Maximum refresh rate
- 60 Hz
- UN number
- `
Specific References
- EAN13
- 4002888369565
- MPN
- 36956
