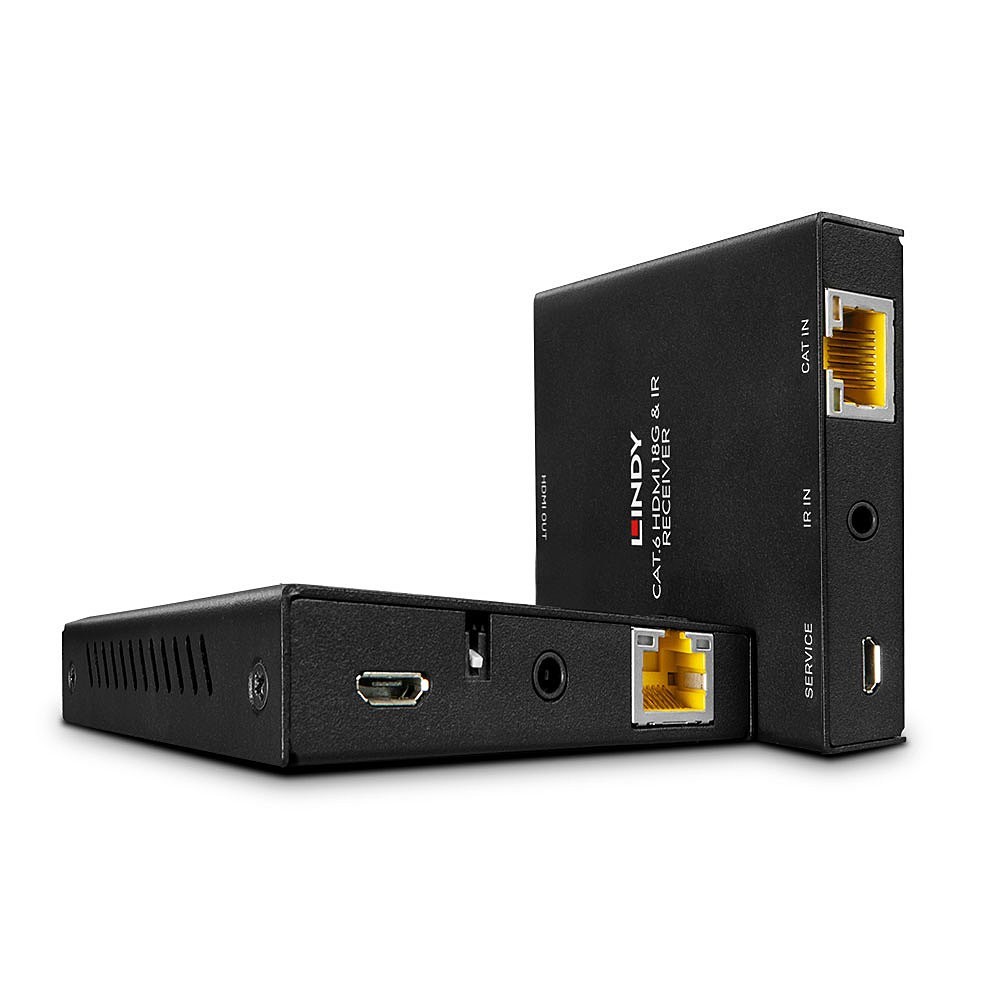

The Lindy Cat.6 HDMI 4K60 and IR Extender with PoC is an effective, reliable solution for extending high quality 4K HDMI signals over distances up to 50m (164.04ft) with standard Cat.5e/6 network cable. Support for the HDMI 2.0 18G specification allows the transmission of highly detailed 4K Ultra HD resolutions. With support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut, perfect for a true home cinema experience or eye-catching digital signage in retail settings. HDCP 2.2 compliance allows 4K video content from copy protected sources such as Blu-Ray movies, media players and streaming services to be viewed without compatibility issues. Support for lossless audio formats including DolbyTrueHD and DTS-HD adds powerful multi-channel sound to video content, providing an enhanced experience and sense of realism for the viewer.

The extender features an HDMI loop-through output on the transmitter which allows for simultaneous viewing using local and remote displays. This versatility provides a suitable solution for use in various scenarios such as educational presentation systems, home cinema, entertainment systems, or trade shows. The built in EDID dip switch enables the user to control which EDID is taken from either display, making installation and configuration simple ensuring maximum compatibility with HDMI displays and projectors. PoC allows both power and data signals over a Cat.6 cable in a point to point configuration, adding flexibility as only one power supply is required for both the transmitter and receiver units. Ideal when power outlets are limited.

Featuring IR Pass-through, the source equipment can be seamlessly controlled from the remote displays side of the installation using compatible infrared remote controls. This provides simple and complete control for the user.

Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.

Lindy 50m Cat.6 HDMI 4K60 and IR Extender with PoC and Loop Out. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired, USB connector type: Micro-USB. Operating voltage: 24 V, Input current: 1 A. Receiver dimensions (WxDxH): 70 x 15 x 97 mm, Receiver weight: 151 g, Transmitter dimensions (WxDxH): 70 x 15 x 97 mm. Package width: 220 mm, Package depth: 70 mm, Package height: 130 mm

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5e, Cat6
Chipset	SIL9396, SIL9630
Maximum refresh rate	60 Hz
Extended display identification data (EDID)	Yes
HDCP pass-through	Yes
Material	Metal
Product colour	Black
Certification	CE, FCC, REACH & California Proposition 65
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
HDMI version	2.0
USB ports quantity	2
USB connector type	Micro-USB
Remote (IR) output	1
DC-in jack	Yes
Power
Operating voltage	24 V
Input current	1 A
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Receiver dimensions (WxDxH)	70 x 15 x 97 mm
Receiver weight	151 g
Transmitter dimensions (WxDxH)	70 x 15 x 97 mm
Transmitter weight	156 g
Packaging data
Package width	220 mm
Package depth	70 mm
Package height	130 mm
Package weight	605 g
Package type	Box
Packaging content
Cables included	IR
Manual	Yes
