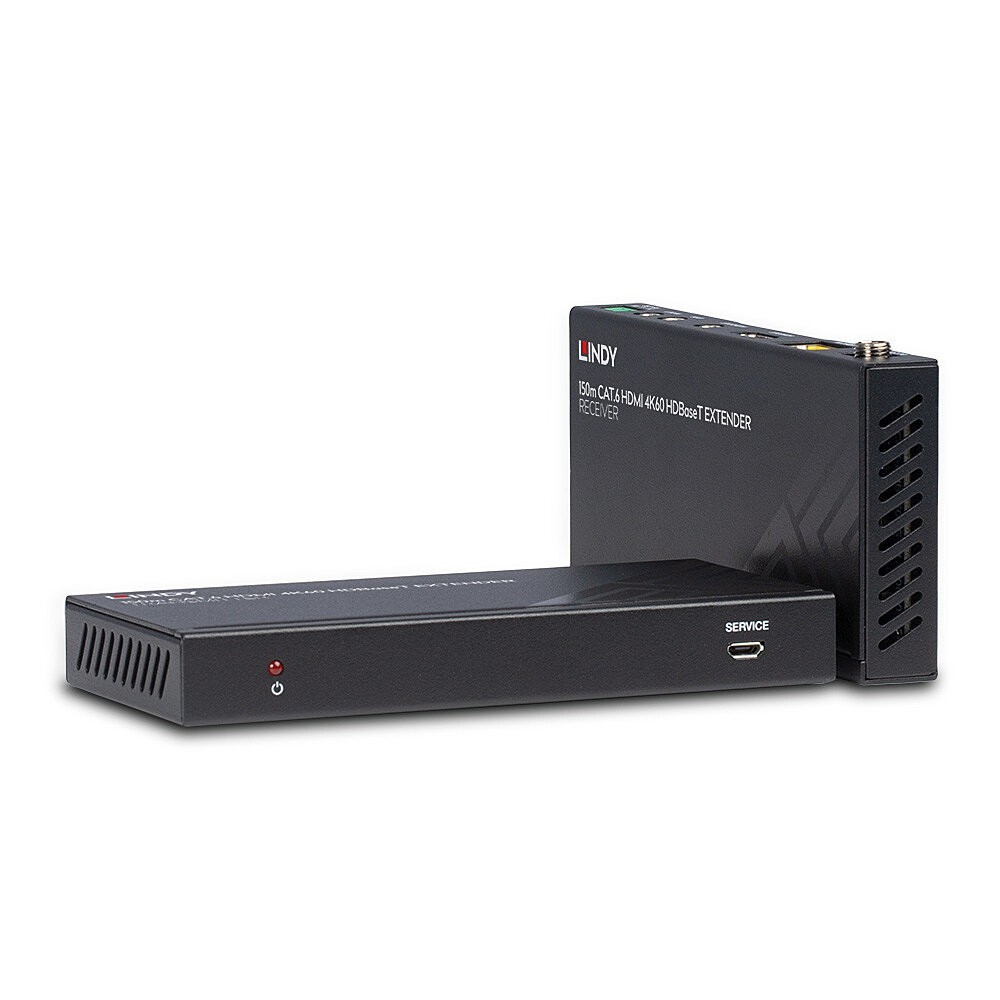

The Lindy C6 HDBaseT HDMI 18G and IR Extender is a complete high performance solution for extending HDMI signals over long distances via Cat.6 network cable. Combined this extender provides high quality content distribution up to distances of 150m.

The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:150m (492.12ft) - 1280x720@60Hz via Long Reach Mode100m (328.08ft) - 3840x2160@30Hz 4:4:4 8bit70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit

Supporting resolutions up to 4K UHD 3840x2160@60Hz, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls. An HDMI loop out port provides additional capability for connecting a local display for monitoring of the video content in security or close-range distribution in residential installs, while simultaneously extending the signal to the receiver.

PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user.

Terminal blocks allows for pass-through of RS-232 commands when integrated into control systems.

HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type.

Lindy 150m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Power source type: DC, Operating voltage: 24 V, Input current: 1 A. Width: 140 mm, Depth: 65 mm, Height: 18 mm. Package width: 245 mm, Package depth: 75 mm, Package height: 185 mm

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Chipset	VS010-A0
Extended display identification data (EDID)	Yes
CEC pass-through	Yes
HDCP version	2.2
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
HDMI version	2.0
RS-232 input ports	1
Remote (IR) output	1
DC-in jack	Yes
Power
Power source type	DC
Operating voltage	24 V
Input current	1 A
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	140 mm
Depth	65 mm
Height	18 mm
Weight	760 g
Packaging data
Package width	245 mm
Package depth	75 mm
Package height	185 mm
Package weight	970 g
Package type	Box
Packaging content
Cables included	AC, IR
IR emitter included	Yes
Manual	Yes
