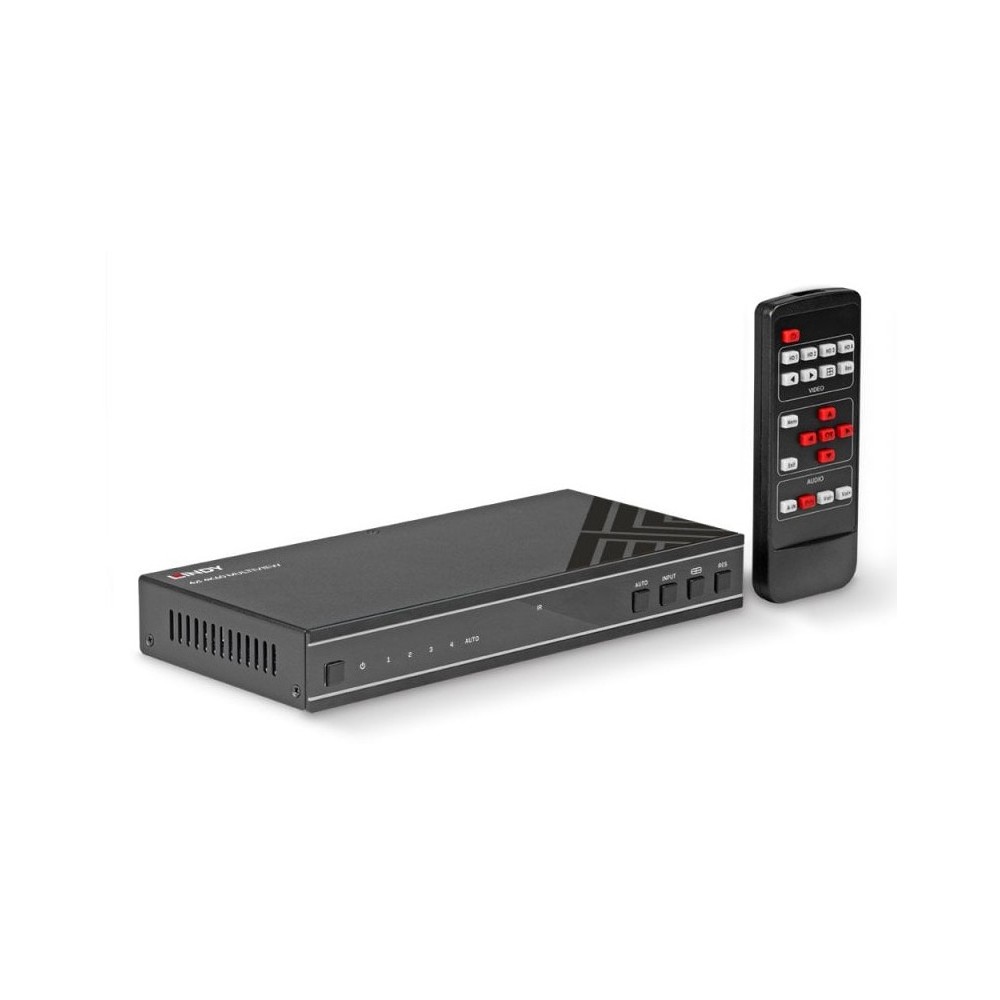

This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.

In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;

Digital Presentations
CCTV Surveillance & Control
Video Conference & Meeting rooms;
The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.

Lindy 4x1 4K60 HDMI Seamless Multiview Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. AC input voltage: 12 V, AC adapter input voltage: 2.5 V. Width: 219 mm, Depth: 111 mm, Height: 30 mm. Package width: 280 mm, Package depth: 179 mm, Package height: 78 mm

Ports & interfaces
Video port type	HDMI
HDMI ports quantity	5
HDMI in	4
Number of HDMI outputs	1
Audio (L/R) out	1
Features
Product colour	Black
HDCP version	2.2
Power
AC input voltage	12 V
AC adapter input voltage	2.5 V
Weight & dimensions
Width	219 mm
Depth	111 mm
Height	30 mm
Weight	610 g
Packaging data
Package width	280 mm
Package depth	179 mm
Package height	78 mm
Package weight	1.08 kg
Packaging content
Quantity per pack	1 pc(s)
Screws included	Yes
Packaging content	1 x 4K60 HDMI 4x1 Multiview Seamless UHD Video Switcher 1 x IR Remote Control 1 x 3pin-3.81mm Phoenix connector (male) 1 x 38KHz IR Wideband Receiver cable (1.5 Meters) 2 x Mounting Ears 4 x Machine Screws (KM3*4) 4 x Rubber Feet 1 x 12v/2.5A Locking Power Adapter 1 x User Manual
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-4 - 140 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	20 - 90%
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
