Split a single HDMI 2.0 source across 2 HDMI displays
Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
HDCP 2.2 support for enhanced compatibility
EDID Management for hassle free installation
2 Year Warranty

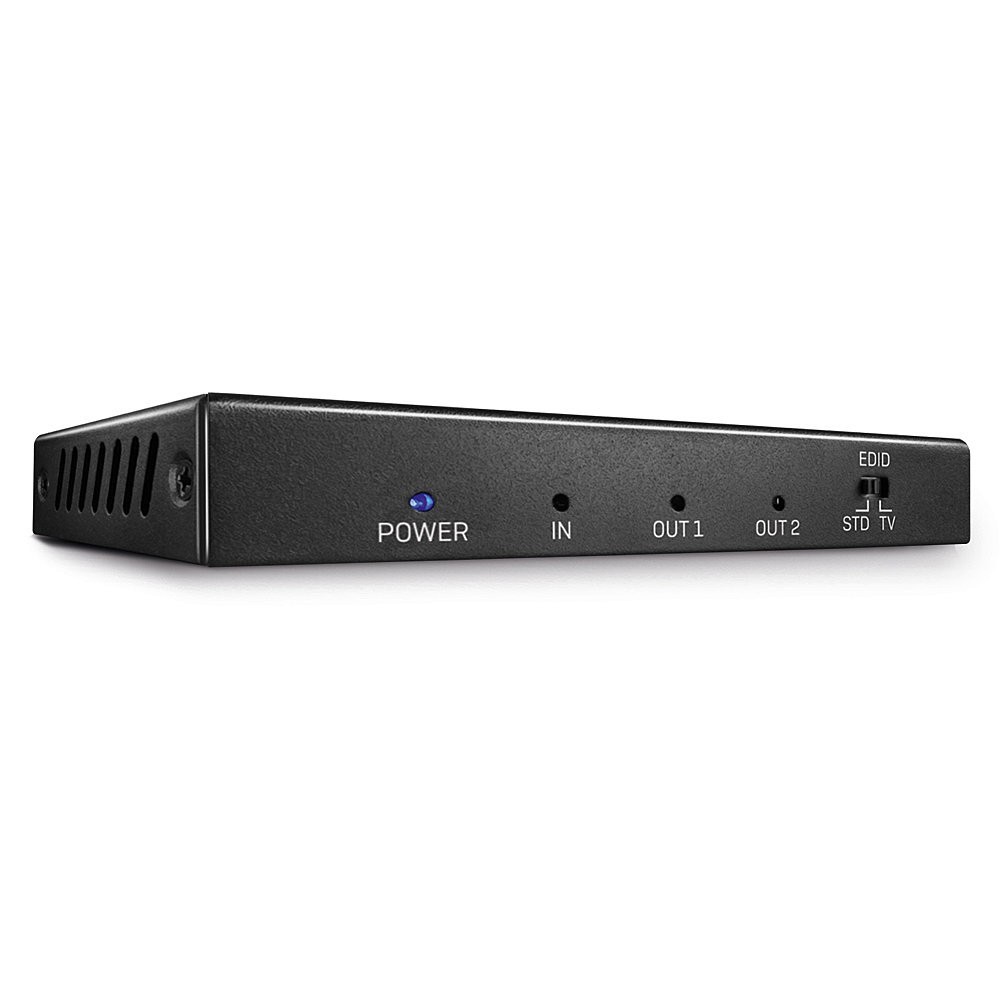

The Lindy 2 Port HDMI 18G Splitter is a compact, high quality solution for distributing HDMI 2.0 18G signals across dual displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars.

The additional ability to cascade this splitter up to three further levels allows for an extended HDMI splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices.

Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display.

The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.

Lindy 2 Port HDMI 2.0 18G Splitter. Video port type: HDMI, Video out: 2x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 5 V, Input current: 1 A. Width: 100 mm, Depth: 56 mm, Height: 16 mm. Package width: 146 mm, Package depth: 65 mm, Package height: 105 mm

Ports & interfaces
Video ports quantity	1
Video port type	HDMI
Video out	2x HDMI
HDMI version	2.0
DC-in jack	Yes
Features
Product colour	Black
Housing material	Metal
Maximum resolution	3840 x 2160 pixels
HDCP version	2.2
HDCP	Yes
Certification	CE, FCC, RoHS, REACH, California Proposition 65
Power
AC input voltage	5 V
Input current	1 A
Weight & dimensions
Width	100 mm
Depth	56 mm
Height	16 mm
Weight	263 g
Packaging data
Package width	146 mm
Package depth	65 mm
Package height	105 mm
Package weight	342 g
Package type	Box
Packaging content
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Logistics data
Harmonized System (HS) code	85176990
