With this Extender you can use up to 70m of high quality inexpensive Cat.5e/6 cable to connect a DVI source to a DVI display device. The slim RJ45 connectors and Cat.6 cable (not included) allow greater flexibility not possible with larger DVI connectors and cables. Normal operation will not require external power; however the Transmitter unit allows external power to be attached in cases where the graphics card does not provide sufficient power, either using a USB Micro-B Cable or an external power supply connected to the supplied USB to DC cable. The Extender supports the following resolutions/distance combinations:



800x600 = 70m 1024x768 = 65m 1280x1024 up to 1920x1200 = 50m



Additional Requirements:

RJ-45 patch cable: 1 xCAT5e/6 UTP Cable

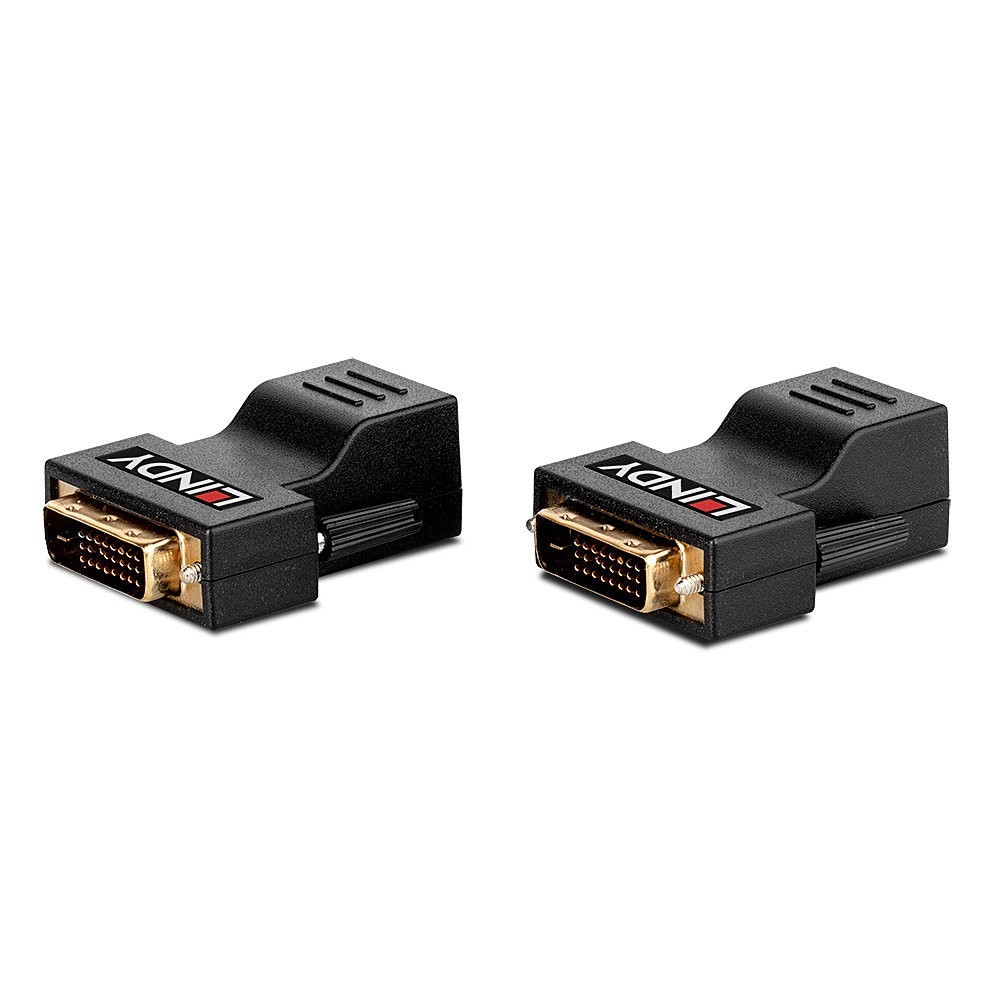

Lindy 70m Cat.6 DVI-D Single Link Extender. Maximum resolution: 1920 x 1200 pixels, Cable length: 70 m, Product colour: Black. Quantity per pack: 2 pc(s)

Features
Maximum resolution	1920 x 1200 pixels
Cable length	70 m
Product colour	Black
Packaging data
Quantity per pack	2 pc(s)
