A matrix switch is a multi-port solution for distributing content from multiple sources to several displays in a variety of configurations.

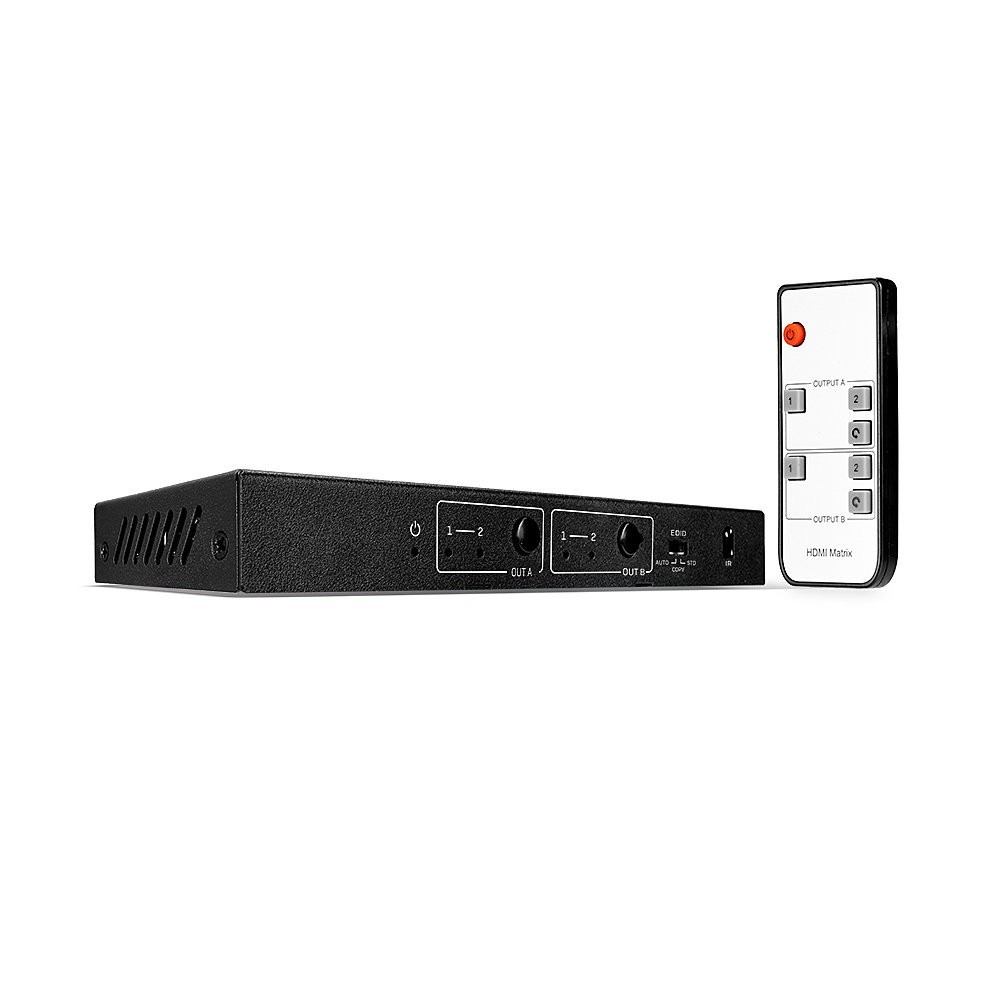

The Lindy 2x2 HDMI 18G Matrix Switch is a premium, compact solution for distributing content from two devices to two displays. Dual HDMI inputs and outputs provide the ability to switch between 2 separate source devices or 2 connected HDMI displays, or output video simultaneously.

With support for HDMI 18G signals, this matrix allows for the transmission of high quality 4K UHD 4096x2160@60Hz resolutions, while additional support for HDR (High Dynamic Range) ensures video content can be viewed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for high quality residential setups or small scale digital signage installations in retail.

HDCP 2.2 support ensures there are no compatibility issues with 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players. Simple EDID management via an integrated switch allows the user to control and ensure the optimum resolution based on their connected displays.

As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.

This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.

Lindy 2x2 HDMI 18G Matrix. Product type: AV matrix switcher, Data transfer rate: 18 Gbit/s, Maximum resolution: 4096 x 2160 pixels. Housing colour: Black, Housing material: Metal. Width: 144 mm, Depth: 59.5 mm, Height: 18 mm

Features
Product type	AV matrix switcher
Data transfer rate	18 Gbit/s
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
HDCP version	2.2
EDID management	Yes
Fiber optic connector	TOSLINK
Design
Housing colour	Black
Housing material	Metal
Display
Built-in display	No
Ports & interfaces
HDMI input ports quantity	2
HDMI output ports quantity	2
HDMI version	2.0
DC-in jack	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	144 mm
Depth	59.5 mm
Height	18 mm
Weight	208 g
Package width	200 mm
Package depth	113 mm
Package height	70 mm
Package weight	328 g
Packaging content
Manual	Yes
