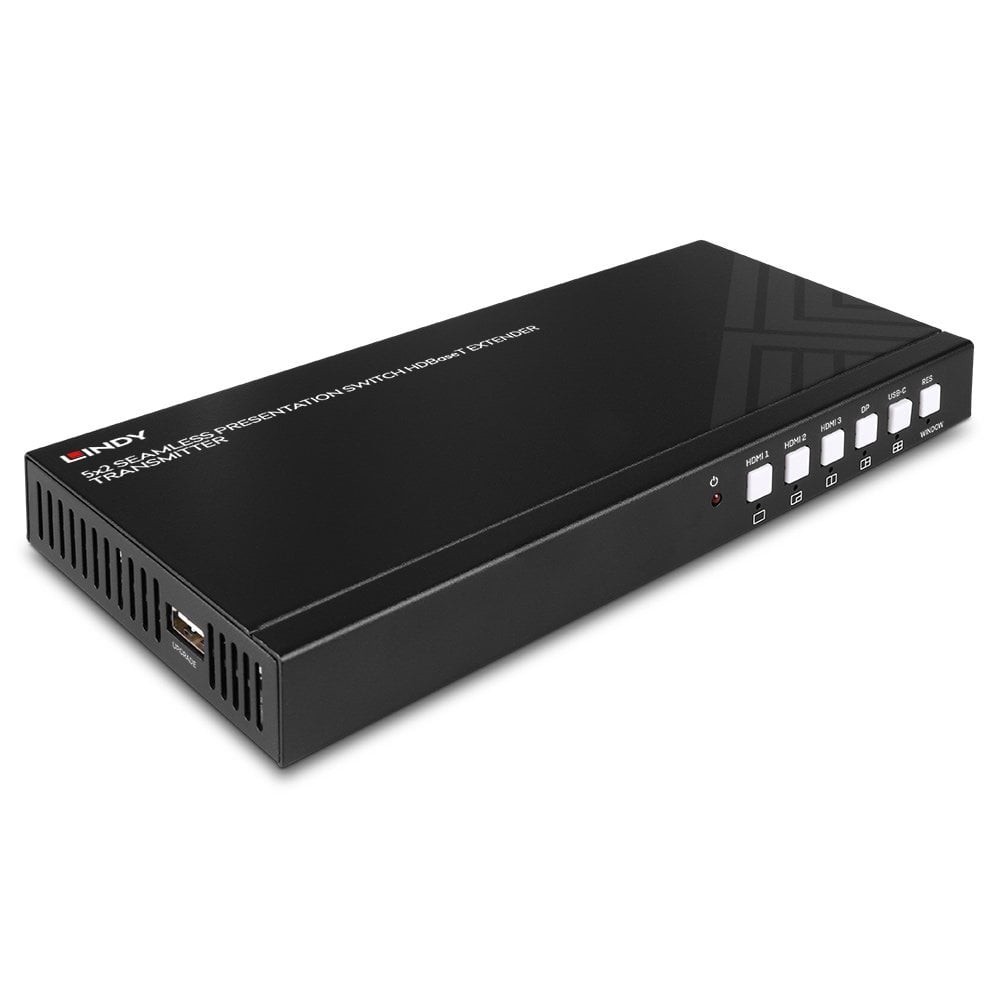

Lindy 5 Port Seamless Presentation Switch HDBaseT Extender - Transmitter
- Supports 4K@60Hz 4:4:4 resolutions up to 70m over Cat.6 network cable via HDBaseT technology
- 5 inputs seamless switching to 2 mirrored outputs
- RS-232 for external control
- Supports auto-switch, multiview and PoC (Power over Cable) functions
- 2 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
The 5 Port Seamless Presentation Switch HDBaseT Transmitter is one part of a high performance, reliable solution for extending AV signals over long distances via Cat.6 network cable.
By combining this transmitter unit with the Lindy HDBaseT receiver n. 38214, the following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:70m: 1920x1080@60Hz 4:4:4 8bit40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
It can be connected to other HDBaseT receiver supporting up to 4K30 resolutions.
This unit provides 3 HDMI, 1 DP and 1 Type C inputs with 1 HDBaseT and 1 HDMI local outputs; sources can be switched seamlessly pushing the buttons on the front panel, long press can activate different multiview options. This and many more functions such as auto-switch mode, select resolutions, EDID, PIP size, etc. can be managed via RS-232 commands.
2 outputs are mirrored while 3.5mm stereo audio output can be used for connecting speakers or headphones to get de-embedded audio.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and a receiver with the same feature, meaning only a single power supply is required.
This transmitter provides a full range of solutions and AV interfaces to connect different kind of devices, ideal for presentations, trade shows and conference rooms. Type C sources must support Alternate Mode.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Lindy 5 Port Seamless Presentation Switch HDBaseT Extender - Transmitter. Type: AV transmitter, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Width: 225 mm, Depth: 100 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Package width: 273 mm, Package depth: 138 mm
By combining this transmitter unit with the Lindy HDBaseT receiver n. 38214, the following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:70m: 1920x1080@60Hz 4:4:4 8bit40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
It can be connected to other HDBaseT receiver supporting up to 4K30 resolutions.
This unit provides 3 HDMI, 1 DP and 1 Type C inputs with 1 HDBaseT and 1 HDMI local outputs; sources can be switched seamlessly pushing the buttons on the front panel, long press can activate different multiview options. This and many more functions such as auto-switch mode, select resolutions, EDID, PIP size, etc. can be managed via RS-232 commands.
2 outputs are mirrored while 3.5mm stereo audio output can be used for connecting speakers or headphones to get de-embedded audio.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and a receiver with the same feature, meaning only a single power supply is required.
This transmitter provides a full range of solutions and AV interfaces to connect different kind of devices, ideal for presentations, trade shows and conference rooms. Type C sources must support Alternate Mode.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Lindy 5 Port Seamless Presentation Switch HDBaseT Extender - Transmitter. Type: AV transmitter, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Width: 225 mm, Depth: 100 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Package width: 273 mm, Package depth: 138 mm
| Features | |
| Type | AV transmitter |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Chipset | MST9804 |
| HDCP version | 2.2 |
| Product colour | Black |
| HDBaseT certified | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| Number of HDMI outputs | 1 |
| DisplayPorts in | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 50% |
| Weight & dimensions | |
| Width | 225 mm |
| Depth | 100 mm |
| Height | 25 mm |
| Weight | 590 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 273 mm |
| Package depth | 138 mm |
| Package height | 75 mm |
| Package weight | 1.02 kg |
38338
Data sheet
- Product colour
- Black
- Quantity per pack
- 1 pc(s)
- Maximum resolution
- 3840 x 2160 pixels
- Material
- Metal
- Connectivity technology
- Wired
- Type
- AV transmitter
- Maximum transfer distance
- 70 m
- Certification
- CE, UKCA, FCC, RoHS, REACH & California Proposition 65
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Width
- 225 mm
- Depth
- 100 mm
- Height
- 25 mm
- Weight
- 590 g
- Package width
- 273 mm
- Package depth
- 138 mm
- Package weight
- 1.02 kg
- Operating relative humidity (H-H)
- 10 - 50%
- Package height
- 75 mm
- Cable types supported
- Cat6
- Chipset
- MST9804
- Bandwidth
- 18 Gbit/s
- RJ-45 output ports
- 1
- HDCP
- Yes
- HDCP version
- 2.2
- Number of HDMI outputs
- 1
- HDMI in
- 3
- HDBaseT certified
- Yes
- 3.5 mm (1/8-inch) out
- Yes
- HDCP & EDID bypass
- Yes
- DisplayPorts in
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
