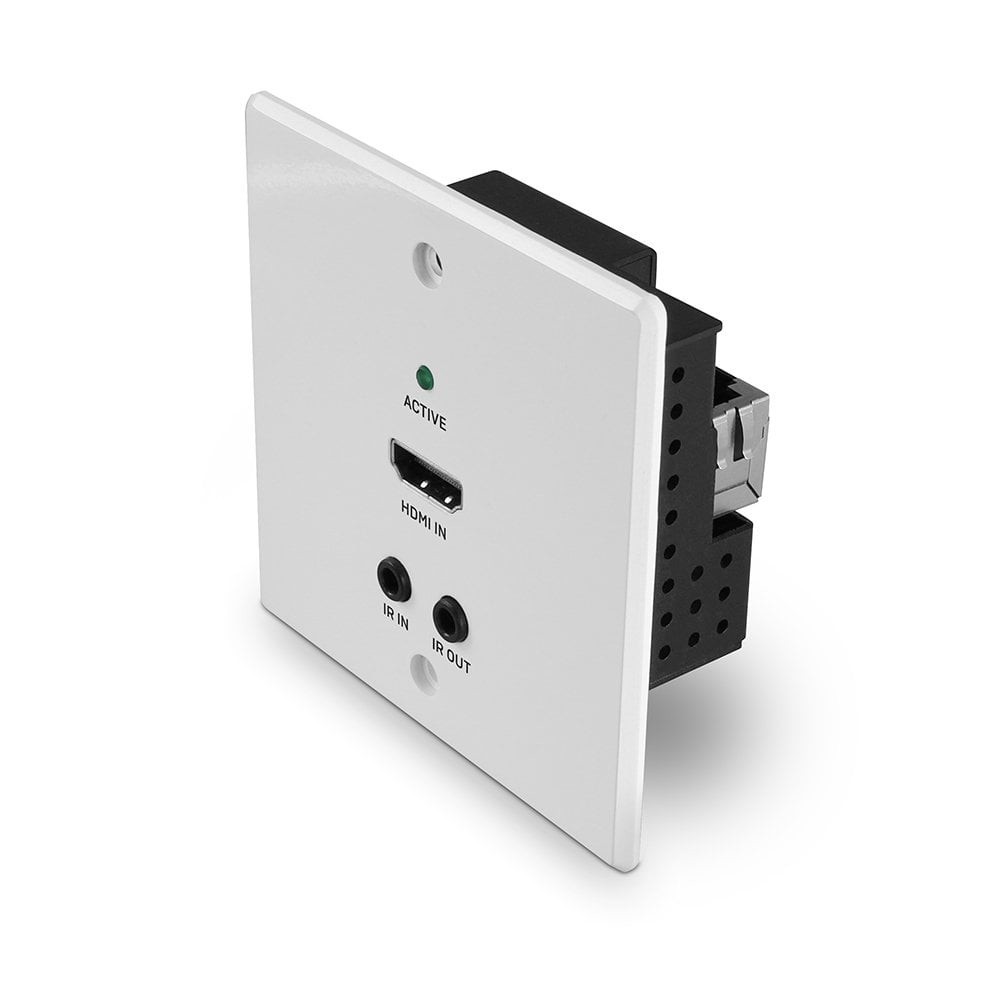

The Lindy Cat.6 HDBaseT HDMI 4K60 Wall Plate Transmitter is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.

By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38214 and 38342, this solution ensures reliable transmission up to 70m.

The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:

70m: 1920x1080@60Hz 4:4:4 8bit40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.

HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers or patch panels may result in a reduction of possible distances.

Lindy 70m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT UK Wall Plate Extender, Transmitter. Type: AV transmitter, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Power source type: DC, Operating voltage (transmitter): 24 V, Output current: 1 A. Width: 86 mm, Depth: 38 mm, Height: 86 mm. Quantity per pack: 1 pc(s), Package width: 152 mm, Package depth: 95 mm

Features
Type	AV transmitter
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Chipset	VS010
Maximum refresh rate	60 Hz
Extended display identification data (EDID)	Yes
Bidirectional	Yes
Infrared (IR) frequency range	20 - 60 kHz
HDCP version	2.2
Product colour	Black, White
Certification	California Proposition 65
Ports & interfaces
Connectivity technology	Wired
RJ-45 output ports	1
HDBaseT port	Yes
HDMI version	2.0
RS-232 output ports	1
3.5 mm (1/8-inch) out	Yes
Power
Power source type	DC
Operating voltage (transmitter)	24 V
Output current	1 A
Power requirements	24VDC 1A
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	86 mm
Depth	38 mm
Height	86 mm
Weight	390 g
Packaging data
Quantity per pack	1 pc(s)
Package width	152 mm
Package depth	95 mm
Package height	133 mm
Package weight	540 g
Package type	Box
Packaging content
Manual	Yes
Packaging content	HDMI Transmitter Multi-country Power Supply (UK, EU, US & AUS) IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 3-Pin Terminal Block 2-Pin Terminal Block Lindy Manual
