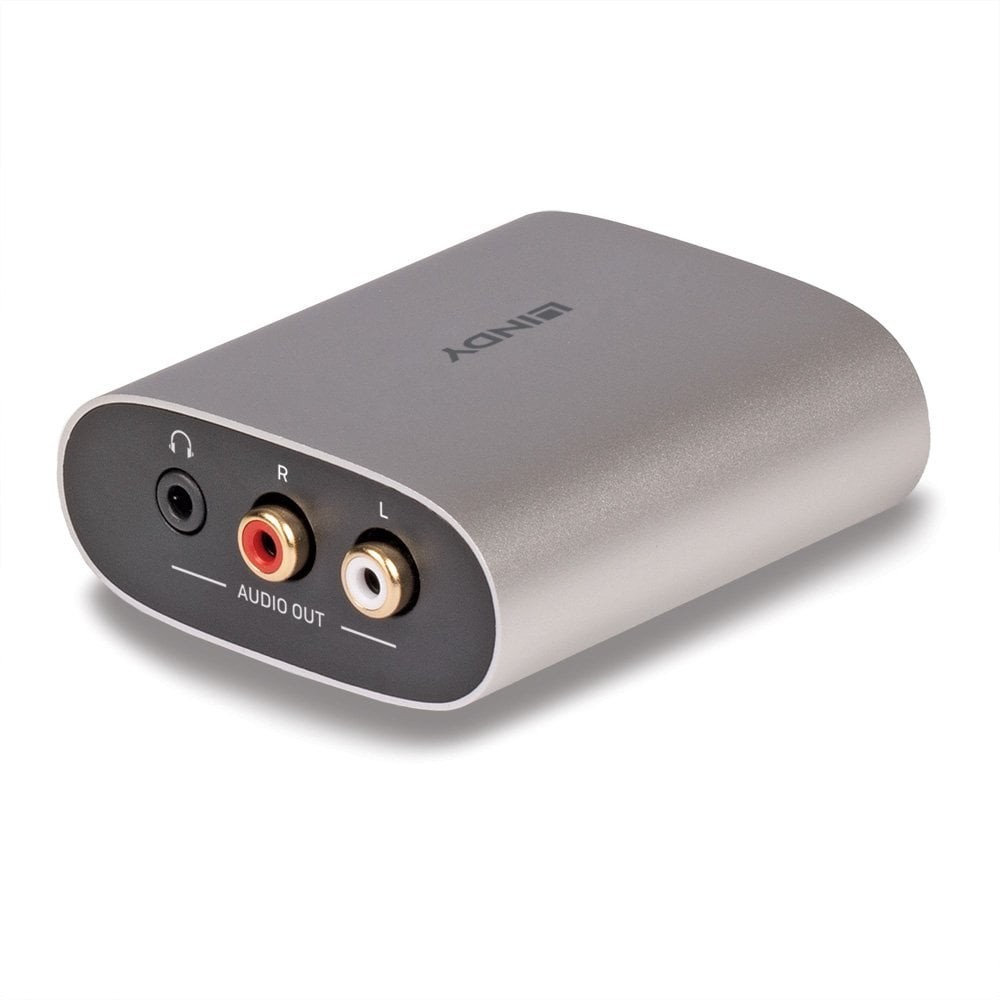

The Lindy HDMI ARC Audio Downmix Decoder of high quality audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance, for a high quality audio experience of movies, music and games. Effortlessly adjust TV sound and speaker sound synchronously with CEC passthrough allowing you to increase or decreases the TV volume with your regular remote. The separate micro-USB port is used for power, via connection to a source devices USB port, avoiding the need for a separate PSU.

The converter's Dolby® Digital Decoder function ensures that Dolby® Digital audio signals are down-mixed to analogue stereo without any compression or loss in audio quality, and with support for PCM sample rates up to 192kHz and Dolby digital sample rates up to 48kHz, music and movies can be heard how the artist and sound engineers intended, with greater detail and clarity. Featuring flexible operation between all audio formats, and status LEDs, to indicate a Dolby Digital encoded audio source or for power, ensures simple, fuss-free installation and use.

Lindy HDMI ARC Audio Downmix Decoder. USB connector type: Micro-USB. Operating voltage: 5 V. Width: 70 mm, Depth: 65 mm, Height: 27 mm. Cables included: USB Type-A to Micro-USB Type-B, Package width: 146 mm, Package depth: 105 mm

Inputs
HDMI in	1
Outputs
Headphone out	Yes
Technical details
Frequency range	20 - 20000 Hz
CEC pass-through	Yes
Output impedance	100 Ω
Supported sample rates	192 kHz
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Certification	California Proposition 65
Sustainability compliance	Yes
Power
Operating voltage	5 V
Weight & dimensions
Width	70 mm
Depth	65 mm
Height	27 mm
