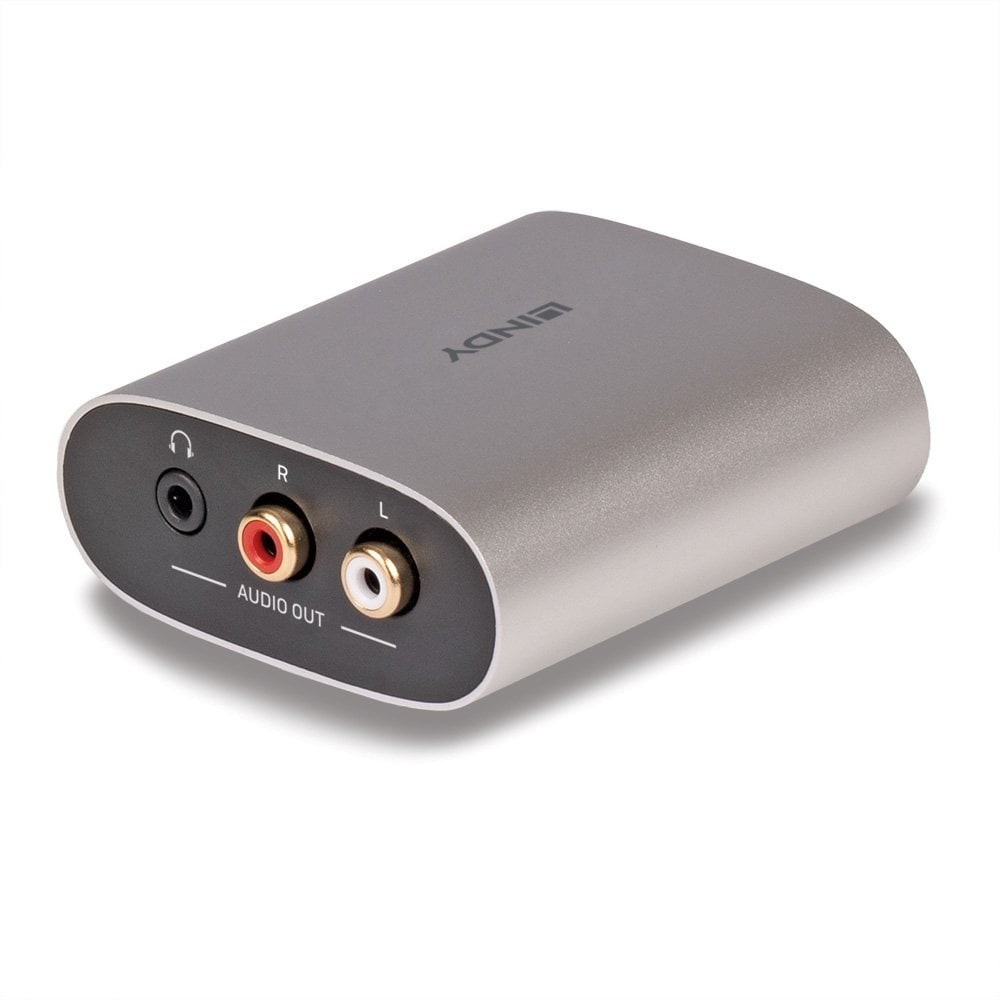

Lindy HDMI ARC Audio Extractor
- ARC Enabled: Extract audio signal from ARC (Audio Return Channel) enabled HDTV to analogue stereo output, for audio receiver/amplifier/headphones
- Support PCM 2.0, Dolby 5.1, DTS 5.1 audio downmix to 2 channel stereo audio output
- CEC Pass Through
- 2 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
The Lindy HDMI ARC Audio Extractor is an effective solution for extracting audio from a HDMI display to analogue audio devices.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
Lindy HDMI ARC Audio Extractor. USB connector type: Micro-USB. Power consumption: 500 mA, Input voltage: 5 V. Width: 70 mm, Depth: 65 mm, Height: 27 mm. Cables included: USB Type-A to Micro-USB Type-B, Package width: 146 mm, Package depth: 105 mm
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
Lindy HDMI ARC Audio Extractor. USB connector type: Micro-USB. Power consumption: 500 mA, Input voltage: 5 V. Width: 70 mm, Depth: 65 mm, Height: 27 mm. Cables included: USB Type-A to Micro-USB Type-B, Package width: 146 mm, Package depth: 105 mm
| Inputs | |
| HDMI in | 1 |
| Outputs | |
| Headphone out | Yes |
| Technical details | |
| Frequency range | 20 - 20000 Hz |
| CEC pass-through | Yes |
| Output impedance | 100 Ω |
| Supported sample rates | 192 kHz |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Certification | California Proposition 65 |
| Sustainability compliance | Yes |
| Power | |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 65 mm |
| Height | 27 mm |
| Weight | 81 g |
38363
1 Item
Data sheet
- Product colour
- Silver
- Housing material
- Plastic
- Certification
- California Proposition 65
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Width
- 70 mm
- Depth
- 65 mm
- Height
- 27 mm
- Weight
- 81 g
- Package width
- 146 mm
- Package depth
- 105 mm
- Package weight
- 174 g
- Package type
- Box
- Manual
- Yes
- Operating relative humidity (H-H)
- 20 - 90%
- Package height
- 65 mm
- Quantity
- 1
- Compliance certificates
- CE, Federal Communications Commission (FCC), REACH, RoHS
- Warranty period
- 2 year(s)
- Sustainability compliance
- Yes
- Cables included
- USB Type-A to Micro-USB Type-B
- Input voltage
- 5 V
- Chipset
- SPHE8107S
- USB connector type
- Micro-USB
- Audio (L/R) out
- 1
- HDMI version
- 1.4
- HDMI in
- 1
- CEC pass-through
- Yes
- Headphone out
- Yes
- Frequency range
- 20 - 20000 Hz
- Output impedance
- 100 Ω
- Supported sample rates
- 192 kHz
- Signal-to-Noise Ratio (SNR)
- 101 dB
- Power consumption
- 500 mA
