The Lindy 4K30 HDMI and USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).

Please note: all modules are sold separately so you can build and scale according to your requirements.

One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.

Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.

As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.

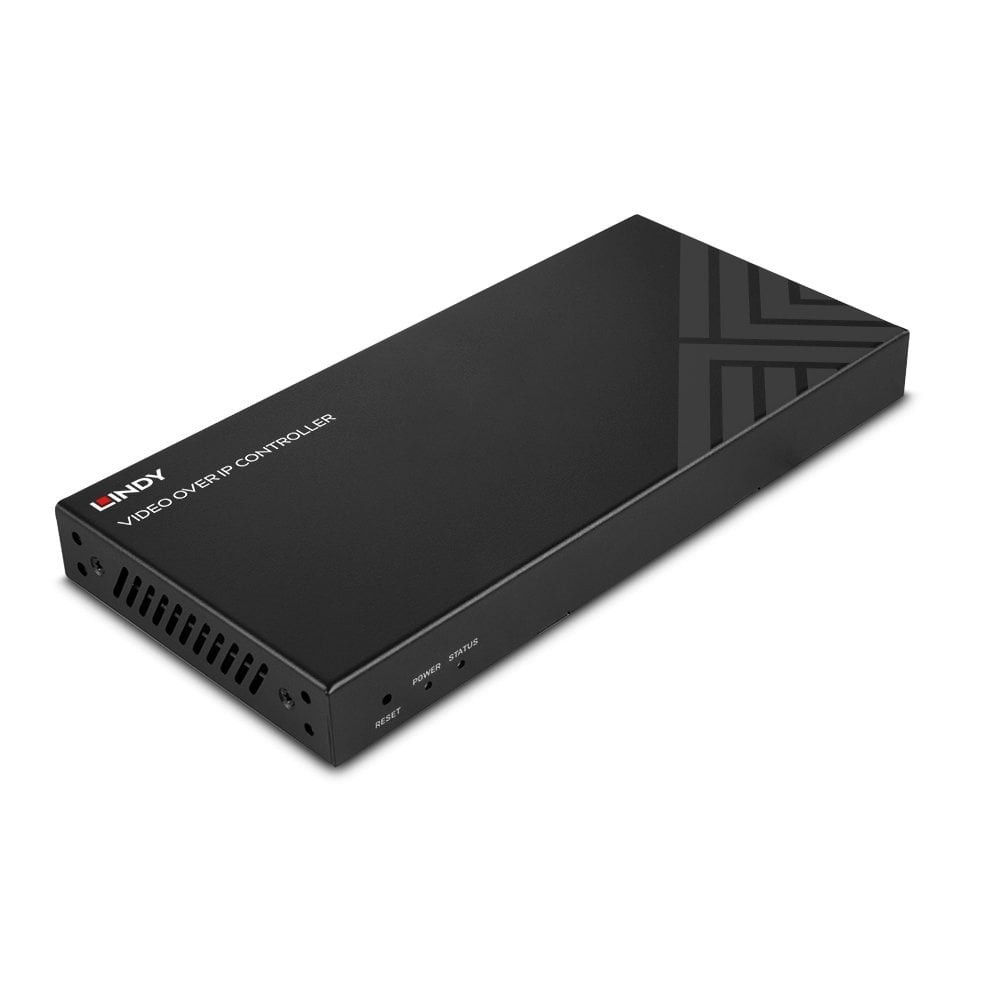

This Controller unit features dual network ports, one for network control and one for multicast video distribution, and provides control via Web GUI, TCP, RS-232, IR and GPIO. The convenient PoE gigabit interface allows users to install the unit without connecting a PSU.

Lindy 4K30 HDMI and USB over IP System - Controller. Type: AV repeater, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired, Serial interface type: RS-232. Power source type: DC, Operating voltage: 12 V, Output current: 1 A. Width: 204 mm, Depth: 98.5 mm, Height: 21.5 mm. Quantity per pack: 1 pc(s), Package width: 255 mm, Package depth: 157 mm

Features
Type	AV repeater
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	100 m
Maximum refresh rate	30 Hz
Supported network protocols	IP
Infrared (IR) frequency range	20 - 60 kHz
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Yes
RJ-45 input ports	1
RJ-45 output ports	1
Serial interface type	RS-232
DC-in jack	Yes
Power
Power source type	DC
Operating voltage	12 V
Output current	1 A
Power over Ethernet (PoE)	Yes
Operational conditions
Storage relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	204 mm
Depth	98.5 mm
Height	21.5 mm
Weight	740 g
Packaging data
Quantity per pack	1 pc(s)
Package width	255 mm
Package depth	157 mm
Package height	77 mm
Package weight	950 g
Package type	Box
Packaging content
AC adapter included	Yes
Cables included	IR
Included power plug types	AU, EU, UK, US
Manual	Yes
Mounting kit	Yes
