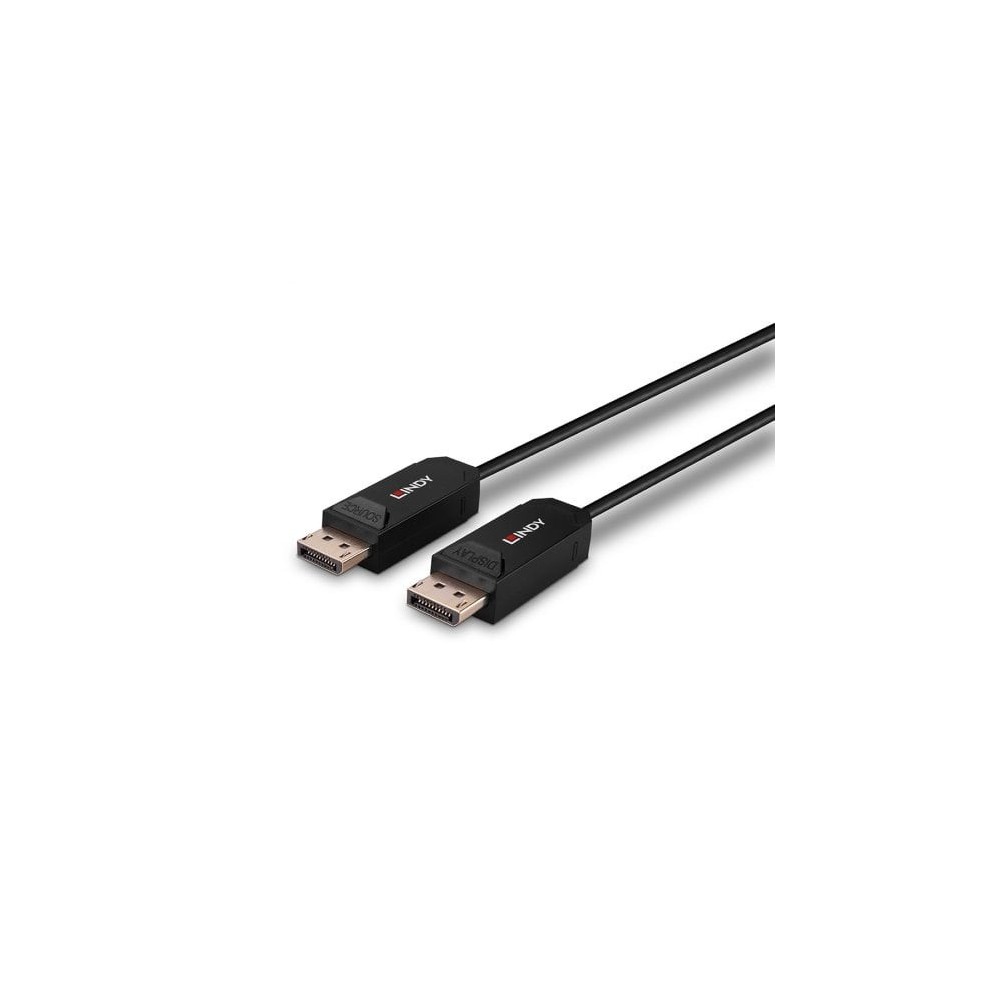

Lindy 40m Fibre Optic Hybrid DP 2.0 UBHR10 Cable

  • Combines copper and fibre optic cable for a hybrid, long distance DisplayPort connectivity solution
  • Supports resolutions up to 4K@144Hz, 8K@60Hz
  • DP2.0 standard with UHBR10 support, 40Gbps bandwidth (4 lanes, 10Gbps per channel)
  • Flexible and robust cable structure for any kind of installations
  • 2-Year Warranty
Lindy
38524
9 Items
Hurry up! only 9 items left in stock!
£295.22
In Stock

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

Lindy's range of Fibre Optic Hybrid cables are a professional solution for extending DP signals over longer distances.Combining the flexibility and high EMI and RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups, commercial displays or high-performance residential installations.

The internal technology provides uncompressed amplification of the DP signal, allowing long distance extension of DP 8K content that is simply not possible with passive cables.

With 40Gbps bandwidth (UHBR10), these cables support DisplayPort 2.0 resolutions up to 3840x2160@144Hz, and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates and supporting static and dynamic HDR for optimum viewing of movies, graphics or imagery.

Lindy 40m Fibre Optic Hybrid DP 2.0 UBHR10 Cable. Cable length: 40 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: CE, REACH, RoHS, UKCA. Cable diameter: 4 mm, Bend radius (min): 5 cm
Features
Cable length40 m
Connector 1DisplayPort
Connector 2DisplayPort
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
DisplayPort version2.0
Maximum resolution7680 x 4320 pixels
Supported graphics resolutions3840 x 2160, 7680 x 4320
Maximum refresh rate60 Hz
Connector 1 lockableNo
Connector 2 lockableNo
Product colourBlack
Jacket materialPolyvinyl chloride (PVC)
Bandwidth40 MB/s
Connector materialGold
Cable typeRound cable
Operational conditions
Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 70 °C
Certificates
Compliance certificatesCE, REACH, RoHS, UKCA
Sustainability
Sustainability complianceYes
Weight & dimensions
Cable diameter4 mm
Bend radius (min)5 cm
38524
9 Items

Data sheet

Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black
Cable length
40 m
Connector contacts plating
Gold
Maximum resolution
7680 x 4320 pixels
Data transfer rate
24 Gbit/s
Jacket material
Polyvinyl chloride (PVC)
Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-20 - 70 °C
Compliance certificates
CE, REACH, RoHS, UKCA
Sustainability compliance
Yes
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable type
Round cable
Connector material
Gold
Cable diameter
4 mm
Bend radius (min)
5 cm
Supported graphics resolutions
3840 x 2160, 7680 x 4320
Bandwidth
40 MB/s
Maximum refresh rate
60 Hz
DisplayPort version
2.0
Colour sampling
4:2:2, 4:4:4, 4:2:0
Connector 1 lockable
No
Connector 2 lockable
No

Specific References

EAN13
4002888385244
MPN
38524
