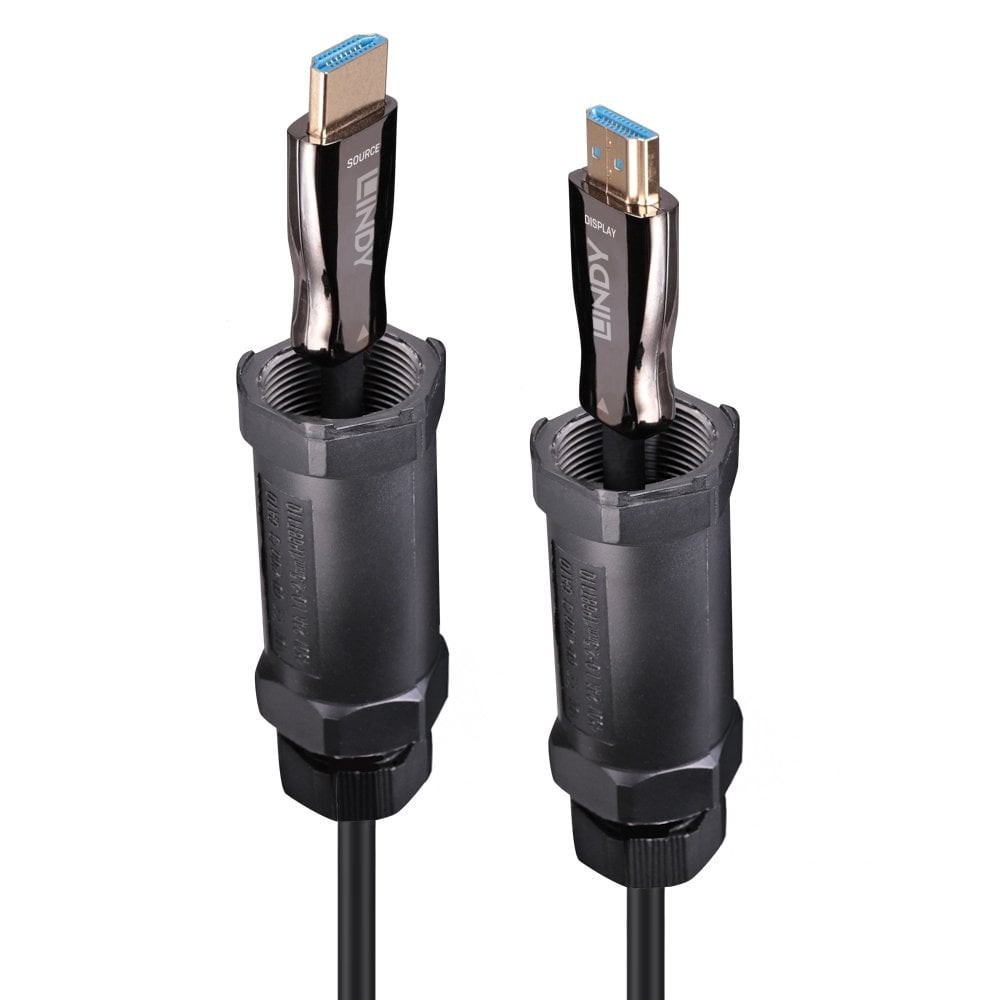

70m Armoured Fibre Optic Hybrid HDMI 8K60 Cable
Lindy's range of Armoured Fibre Optic Hybrid cables are a professional solution for extending HDMI® signals over longer distances. The construction of this extreme rugged HDMI® hybrid cable has under the cable sheath aramid fibres and an additional armoured jacket, maintaining a good flexibility and high EMI & RFI resistance. These hybrid cables are ideal for use in critical AV setups and professional installation such as live events and trade shows.

The maximum pulling force supported is up to 100N with a crush resistance up to 2000N, whilst with 6mm of diameter, the cable is very thin although the aramid fibres and the steel jacket under the TPE sheath.

The connectors are also extremely rugged with gold plated pins, they are enclosed from special protective sleeves, secured against transport damage.

The internal technology provides uncompressed amplification of the HDMI® signal, allowing long distance extension of HDMI® 8K content that is simply not possible with passive cables.

With 48Gbps bandwidth, these cables support HDMI® 2.1 resolutions up to 3840x2160@120Hz, and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates for optimum viewing of movies, graphics or imagery.

As well as static HDR, HDMI® hybrid cables also brings further support for dynamic HDR formats such as Dolby Vision and HDR10+. This provides every moment of content, whether scene by scene or even frame by frame, with a much wider colour gamut based on the BT.2020 colour space, higher peak brightness and deep blacks for optimum contrasts as well as greater depth of colour.

Lindy 38532. Cable length: 70 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.1, Data transfer rate: 48 Gbit/s, Product colour: Black

Features
Cable length	70 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Product colour	Black
HDMI version	2.1
Supported graphics resolutions	3840 x 2160, 7680 x 4320
Data transfer rate	48 Gbit/s
Maximum refresh rate	120 Hz
AWG wire size	32
Connector contacts plating	Gold
Connector material	Zinc alloy
Cable type	Round cable
Cable jacket material	Thermoplastic elastomer (TPE)
Shield material	Aluminium
Bending radius (min)	2 cm
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Weight & dimensions
Cable diameter	6 mm
Connector 1 dimensions (WxDxH)	18.3 x 38 x 8.3 mm
Connector 2 dimensions (WxDxH)	18.3 x 38 x 8.3 mm
Packaging data
Package type	Box
Quantity per pack	1 pc(s)
