Controls four DVI equipped PCs from a single keyboard, mouse and monitor
Switch via the unit’s push buttons or keyboard hot keys
Supports DVI-I single link signals, up to 1920x1200
Independent audio switching and 2 ports USB 2.0 Hub for sharing additional USB peripherials
2 year warranty

A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

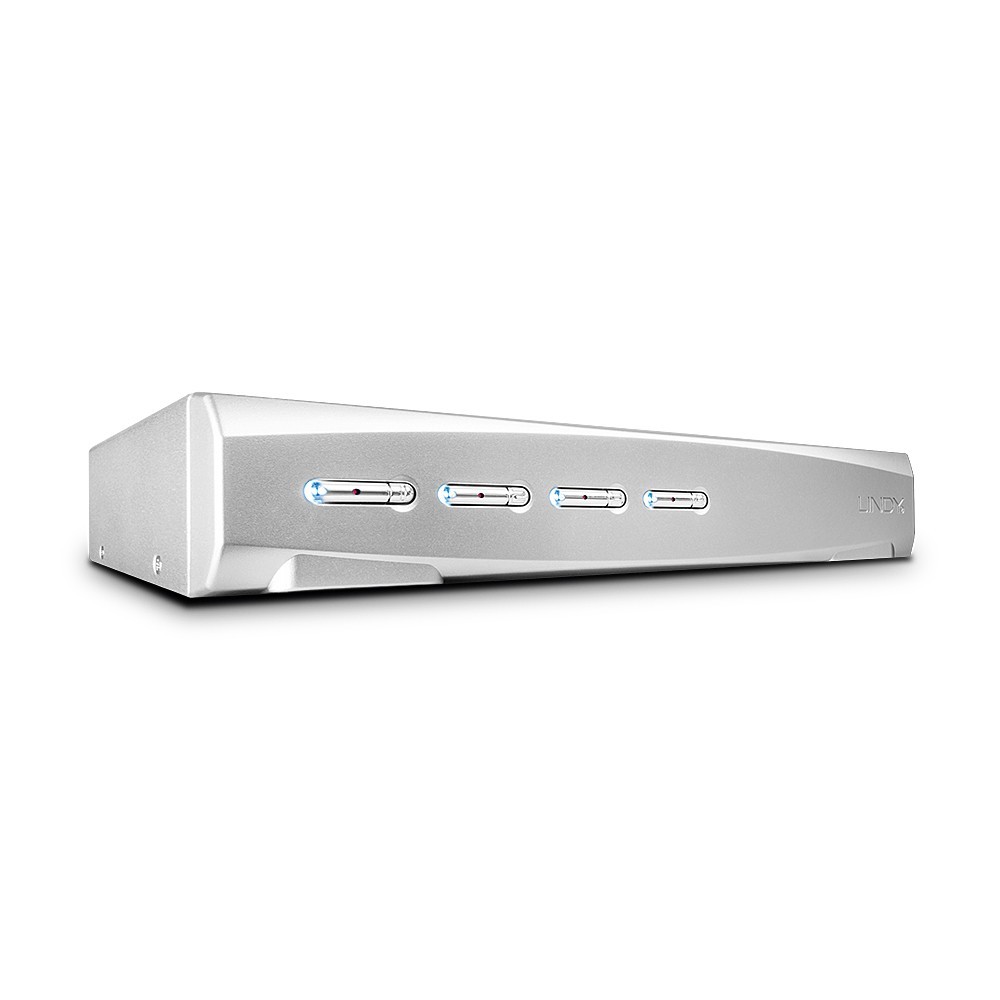

The Lindy 4 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over four DVI equipped PCs from a single keyboard, mouse and monitor.

Supports single link resolutions up to 1920x1200, it can also be used with analogue VGA PCs using adapter cables with support for analogue resolutions up to 2048x1536. The audio output ports on the main unit also allow users to connect headphones or speaker to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with the 2 ports USB 2.0 hub. Both audio and USB hubs can be switched independently of the computers allowing you to print from one PC whilst working on another for example.

It supports True Transparent USB switching, an advanced USB emulation technology that allows the KVM to recognise specific keyboard & mouse models and emulate any of their associated special key and function information. This also provides enhanced support for combined use with KVM extenders.

The KVM switch features multiple switching options including push buttons on the unit and configurable hotkeys that provide simple, reliable control for the user, great for both professional and first time users.

Please Note: connection cables are not included.

Lindy 4 Port DVI-I Single Link KVM Switch Pro. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. HD type: Full HD+, Maximum resolution: 2048 x 1536 pixels. Product colour: Silver, Housing material: Metal, Plastic, Certification: CE, FCC, REACH. Power source: DC, Input voltage: 9 V, Input current: 1.1 A. Compliance certificates: RoHS

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
DVI-I ports quantity	5
USB 2.0 Type-B ports quantity	4
Console USB ports quantity	2
USB hub	Yes
USB 2.0 Type-A hub ports quantity	2
USB connector type	USB Type-A, USB Type-B
Audio connections	Yes
Headphone outputs	5
Number of microphone inputs	5
DC-in jack	Yes
Performance
HD type	Full HD+
Maximum resolution	2048 x 1536 pixels
Design
Product colour	Silver
Housing material	Metal, Plastic
Cascadable	Yes
Display switch button	Yes
Hot keys	Yes
Certification	CE, FCC, REACH
Display
Built-in display	No
Power
Power source	DC
Input voltage	9 V
Input current	1.1 A
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	255 mm
Depth	120 mm
Height	46 mm
Weight	1.25 kg
Packaging data
Package width	310 mm
Package depth	215 mm
Package height	65 mm
Package weight	1.64 kg
Packaging content
AC adapter included	Yes
Logistics data
Harmonized System (HS) code	85176200
