The Lindy DisplayPort 1.2 upward angled adapter is a compact solution for connecting DisplayPort cables to DP displays or devices with recessed ports, or within limited space where cable connector sizing may affect installation. This adapter allows for a 90° connection from ports that are situated at the bottom of a display, recessed within the housing and require a connection away from the display, or for an upward connection if ports are situated on the back of the display or PC.

With DisplayPort 1.2 support, this adapter can be used with DisplayPort 1.2 cables, devices and monitors while also being backwards compatible with previous DisplayPort specifications. 4K UHD 3840x2160@60Hz 4:4:4 8bit resolutions are supported by the adapter, ensuring this is an ideal tool within wall mounted digital signage installations, gaming setups or educational spaces, with no lasting impact on a connected cables strain relief or lifespan.

Please note: it is common for desktop PCs to have DP ports function in the opposite configuration. If this is applicable, please check whether this or the opposing adapter (41366) is required.

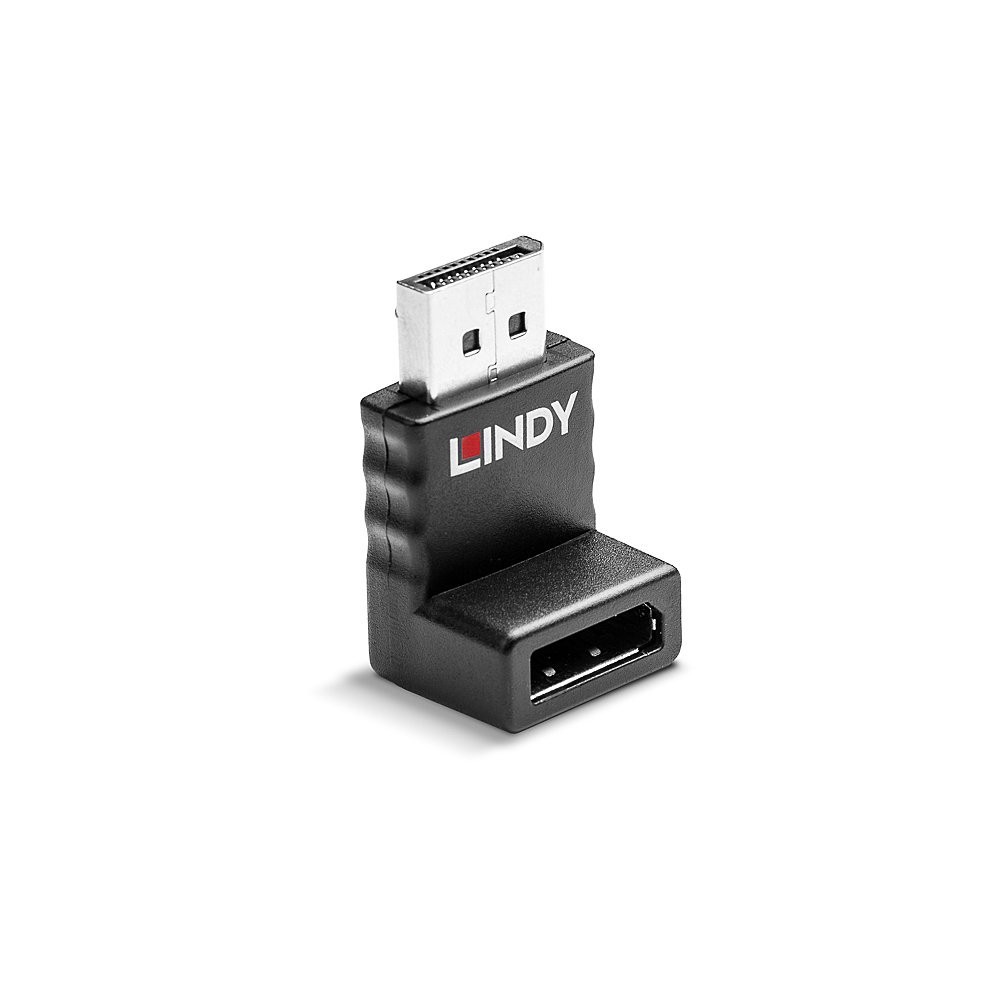

Lindy DisplayPort 1.2 Upward Angled Adapter. Connector 1: DisplayPort, Connector 2: DisplayPort. Product colour: Black

Ports & interfaces
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 2 gender	Female
Performance
Product colour	Black
Housing material	Polyvinyl chloride (PVC)
Data transfer rate	21.6 Gbit/s
Maximum resolution	3840 x 2160 pixels
Operational conditions
Relative humidity	20 - 75%
Certificates
Certification	RoHS, REACH & California Proposition 65
Weight & dimensions
Width	28 mm
Depth	23.4 mm
Height	19.9 mm
Weight	10 g
Packaging data
Package type	Polybag
