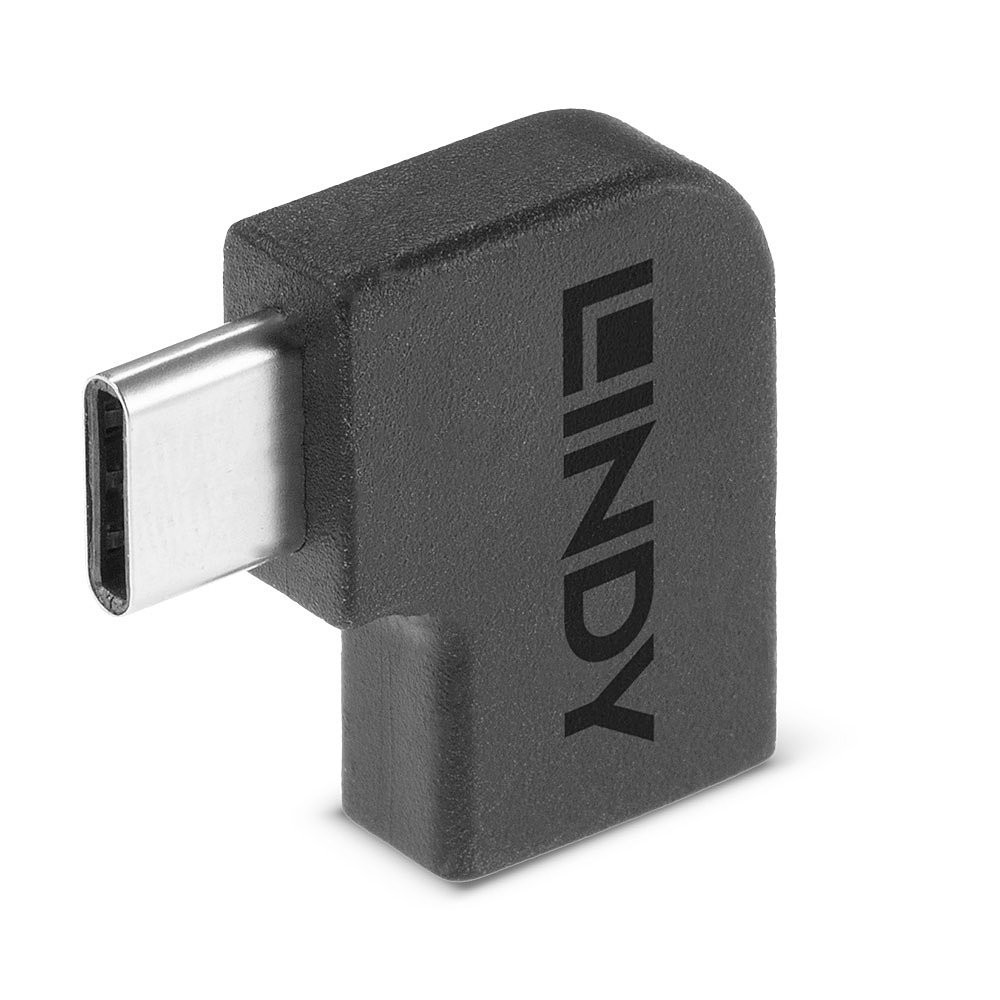

Lindy USB 3.2 Type C to C 90° Adapter
- Connects a USB Type C cable to a USB Type C device with recessed ports or within limited spaces
- Angled 90 .deg left/right - can be used as a strain relief for chargers and USB-C converters
- Robust PVC housing, nickel connectors and gold plated contacts
- Supports data transfer speeds up to SuperSpeed USB 20Gbps (USB 3.2 Gen 2x2)
- 10 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
USB adapters allow users to connect different USB interfaces to a device that uses a differing USB port.
The Lindy USB 3.2 Type C to C 90° Adapter is a compact solution that allows users to connect a USB Type C cable to a USB Type C device with recessed or hard to reach ports. This adapter allows for a 90° connection to the left or right of the device. It is ideal to use as a strain relief for chargers and USB-C converters.
Data transfer speeds up to 20Gbps are supported for the quick and effortless transfer of large data volumes.
Lindy USB 3.2 Type C to C 90° Adapter. Connector 1: USB 3.2 Type C, Connector 2: USB 3.2 Type C, Connector contacts plating: Nickel/Gold. Product colour: Black
The Lindy USB 3.2 Type C to C 90° Adapter is a compact solution that allows users to connect a USB Type C cable to a USB Type C device with recessed or hard to reach ports. This adapter allows for a 90° connection to the left or right of the device. It is ideal to use as a strain relief for chargers and USB-C converters.
Data transfer speeds up to 20Gbps are supported for the quick and effortless transfer of large data volumes.
Lindy USB 3.2 Type C to C 90° Adapter. Connector 1: USB 3.2 Type C, Connector 2: USB 3.2 Type C, Connector contacts plating: Nickel/Gold. Product colour: Black
| Ports & interfaces | |
| Connector 1 | USB 3.2 Type C |
| Connector 2 | USB 3.2 Type C |
| Connector 2 gender | Female |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel/Gold |
| Connector 1 shielding | Copper foil |
| Connector 2 shielding | Copper foil |
| Performance | |
| Product colour | Black |
| Housing material | Polyvinyl chloride (PVC) |
| Data transfer rate | 20 Gbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 85 °C |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
| Width | 24.6 mm |
| Depth | 23 mm |
| Height | 6.3 mm |
| Packaging data | |
| Package type | Polybag |
41894
136 Items
Data sheet
- Connector 1
- USB 3.2 Type C
- Connector 2
- USB 3.2 Type C
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Product colour
- Black
- Connector contacts plating
- Nickel/Gold
- Data transfer rate
- 20 Gbit/s
- Housing material
- Polyvinyl chloride (PVC)
- Operating temperature (T-T)
- -10 - 80 °C
- Storage temperature (T-T)
- -20 - 85 °C
- Width
- 24.6 mm
- Depth
- 23 mm
- Height
- 6.3 mm
- Package type
- Polybag
- Compliance certificates
- REACH, RoHS
- Connector 1 form factor
- Angled
- Connector 2 form factor
- Straight
- Connector 1 shielding
- Copper foil
- Connector 2 shielding
- Copper foil
Specific References
- EAN13
- 4002888418942
- MPN
- 41894
