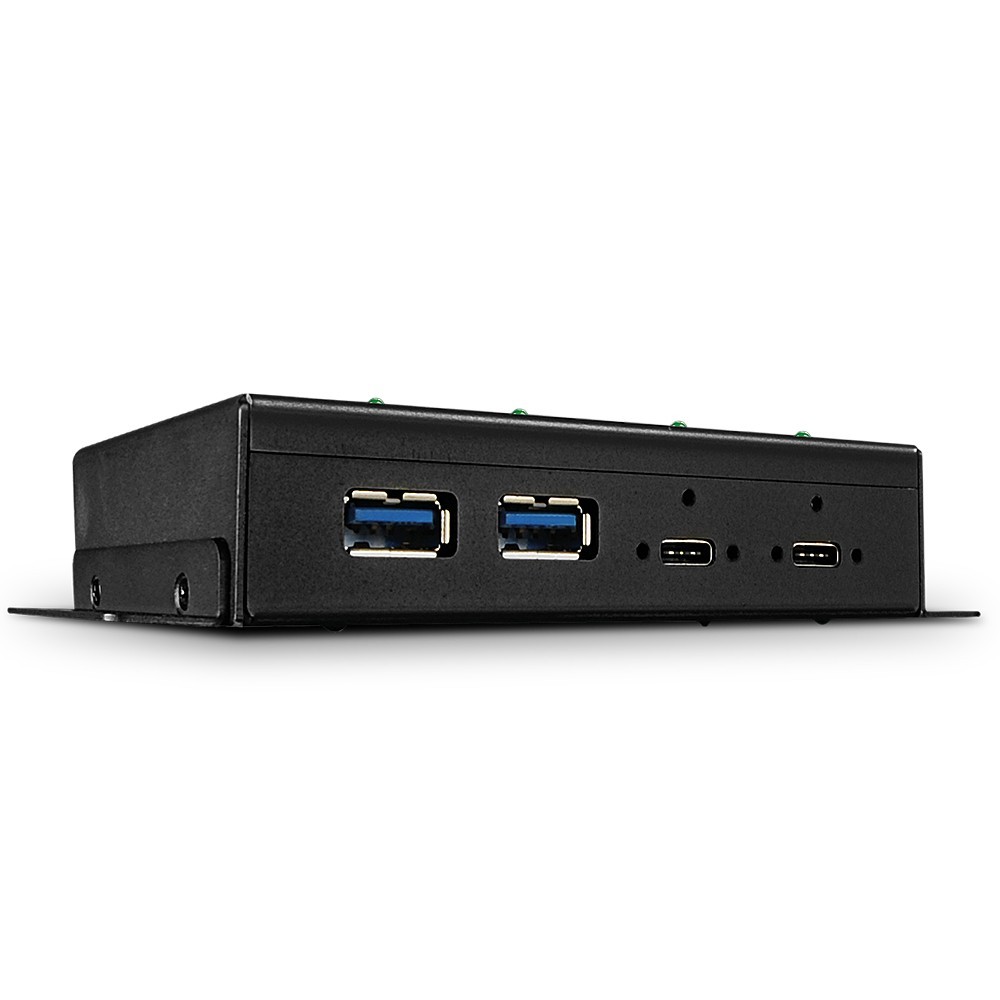

The Lindy 4 Port USB 3.2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.

This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.

With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.

Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Lindy 4 Port USB 3.2 Gen 2 Type C Metal Hub. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Product colour: Black, Housing material: Metal. Input voltage: 5 V, Input current: 4 A. Width: 135 mm, Depth: 60 mm, Height: 24 mm. Package width: 230 mm, Package depth: 198 mm, Package height: 63 mm

Ports & interfaces
Ports quantity	4
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Terminal block port	Yes
DC-in jack	Yes
Features
Data transfer rate	10000 Mbit/s
Housing material	Metal
Certification	CE, FCC, RoHS, REACH
Power
Input current	4 A
Weight & dimensions
Width	135 mm
Depth	60 mm
Height	24 mm
Weight	229 g
Packaging data
Package width	230 mm
Package depth	198 mm
Package height	63 mm
Package weight	667 g
Packaging content
AC adapter included	Yes
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	32 - 122 °F
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	0 - 95%
Logistics data
Harmonized System (HS) code	84719000
