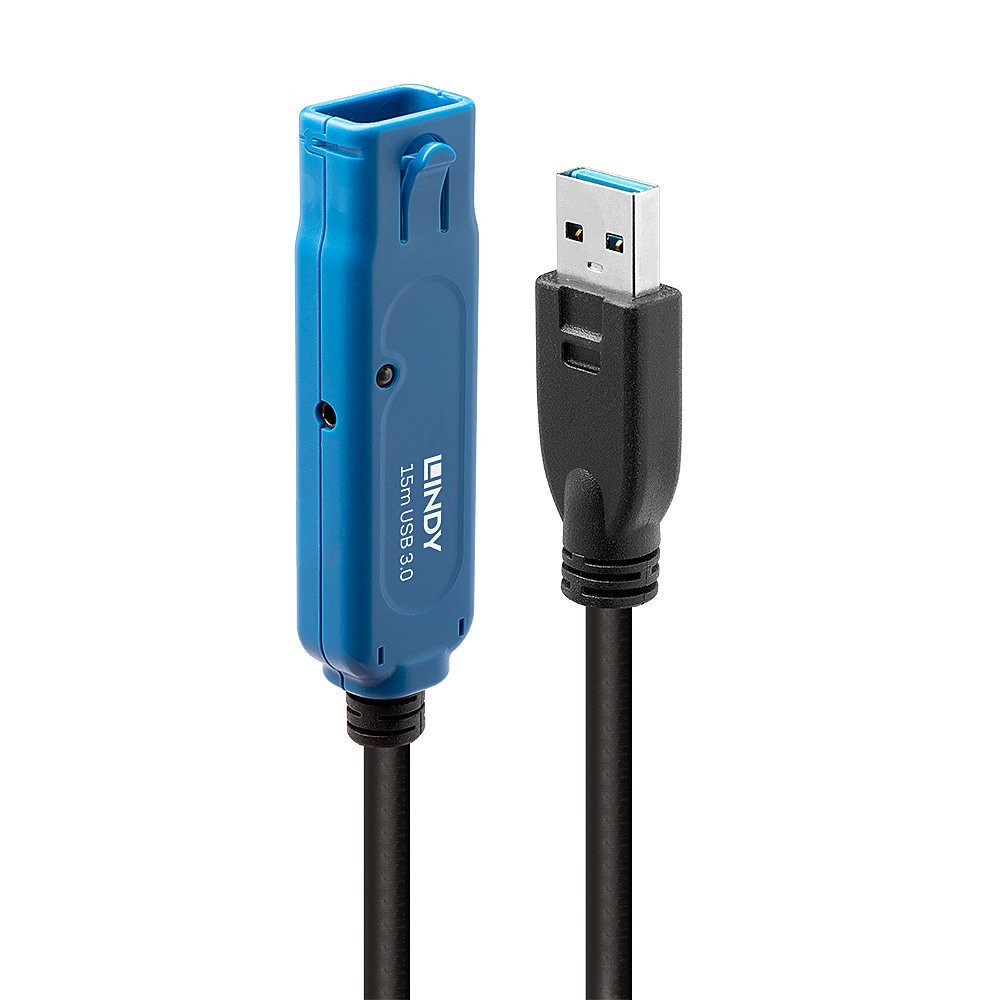

Lindy 15m USB 3.0 Active Extension Pro
- High performance, active cable that provides an extended 15m connection between a computer and USB 3.0 device
- Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)
- Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
- Easy to use – connects to the device's existing USB cable (2m maximum)
- 2 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
The Lindy 15m USB 3.0 Active Extension Cable Pro is a high-performance cable that allows a computer to connect to USB 3.0 SuperSpeed peripherals over long distances. It supports data transfer speeds of up to 5Gbps, making it ideal for quickly and reliably transferring large amounts of data.
The cable incorporates proven active technology and locking connectors to ensure reliable signal integrity, even in demanding environments.
This 15m extension cable can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that combines multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this cable as part of the USB 3.0 Active Extension System Pro
If you would like to use this cable as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit (No. 43159) with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Lindy 15m USB 3.0 Active Extension Pro. Cable length: 15 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product colour: Black
The cable incorporates proven active technology and locking connectors to ensure reliable signal integrity, even in demanding environments.
This 15m extension cable can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that combines multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this cable as part of the USB 3.0 Active Extension System Pro
If you would like to use this cable as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit (No. 43159) with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Lindy 15m USB 3.0 Active Extension Pro. Cable length: 15 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product colour: Black
| Features | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/24/20 |
| Connector material | Nickel |
| Contact material | Brass |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector housing material | Plastic |
| Maximum data transfer rate | 5 Gbit/s |
| Cable type | Round cable |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064MHz - 0.08dB .256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB |
| Power | |
| Power note | 2.5/0.7mm DC Connector |
| Weight & dimensions | |
| Cable length | 15 m |
| Cable diameter | 7 mm |
| Weight | 1 kg |
| Bend radius (min) | 3.6 cm |
| Connector 1 dimensions (WxDxH) | 15 x 49 x 8 mm |
| Connector 2 dimensions (WxDxH) | 20 x 80 x 13 mm |
| Packaging data | |
| Package type | Box |
| Package width | 280 mm |
| Package depth | 180 mm |
| Package height | 10 mm |
| Package weight | 1.35 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
43229
94 Items
Data sheet
- USB version
- USB 3.2 Gen 1 (3.1 Gen 1)
- Connector 1
- USB A
- Connector 2
- USB A
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Product colour
- Black
- Cable length
- 15 m
- Quantity per pack
- 1 pc(s)
- Connector contacts plating
- Gold
- Maximum data transfer rate
- 5000 Mbit/s
- Certification
- CE, UKCA, FCC, RoHS, REACH, California Proposition 65
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Weight
- 1 kg
- Package width
- 280 mm
- Package depth
- 180 mm
- Package weight
- 1.35 kg
- Package type
- Box
- Harmonized System (HS) code
- 84733080
- Package height
- 10 mm
- AWG wire size
- 24/24/20
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Cable type
- Round cable
- Connector material
- Nickel
- Cable diameter
- 7 mm
- Connector 1 dimensions (WxDxH)
- 15 x 49 x 8 mm
- Cable jacket material
- Polyvinyl chloride (PVC)
- Conductor material
- Tinned copper
- Nominal attenuation
- 0.064MHz - 0.08dB
.256MHz - 0.11dB
0.512MHz - 0.13dB
0.772MHz - 0.15dB
1.0MHz - 0.20dB
4MHz - 0.39dB
8MHz - 0.57dB
12MHz - 0.67dB
24MHz - 0.95dB
48MHz - 1.35dB
96MHz - 1.90dB
200MHz - 3.20dB
400MHz - 5.80dB - Bend radius (min)
- 3.6 cm
- Connector 2 dimensions (WxDxH)
- 20 x 80 x 13 mm
- Connector housing material
- Plastic
- Contact material
- Brass
- Power note
- 2.5/0.7mm DC Connector
- Transmission medium
- Twisted pair
Specific References
- EAN13
- 4002888432290
- MPN
- 43229
