The Lindy Combo KVM Switch is a hardware solution that allows direct control of multiple computers using a single keyboard, mouse and VGA monitor. It's ideal for system administrators who want to control multiple computers or servers from a single, centralised location.

The switch occupies only a single 1U space in a 19andrdquo; rack and supports screen resolutions of up to 2048x1536@60Hz, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display; setup and management options can be access only via the OSD.

A local console can be connected to the 2 USB and VGA ports on the rear panel while Daisy Chain VGA ports can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 128 multi platform computers with security features and password access, perfect for large-scale control systems in transport hubs or surveillance centres. All the functions are accessible from the administrator through a simple to use On-Screen Display while LEDs on the front panel show the online and selected PC to ensure continuous control and monitoring.

PCs and connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within 'always on' environments such as data centres or traffic management setups.

Computers or servers can be connected to the 8 host ports on the rear panel via dedicated VGA and USB KVM cables (not included).These are available in different lengths:

1m - 32185

2m - 32186

3m - 32187

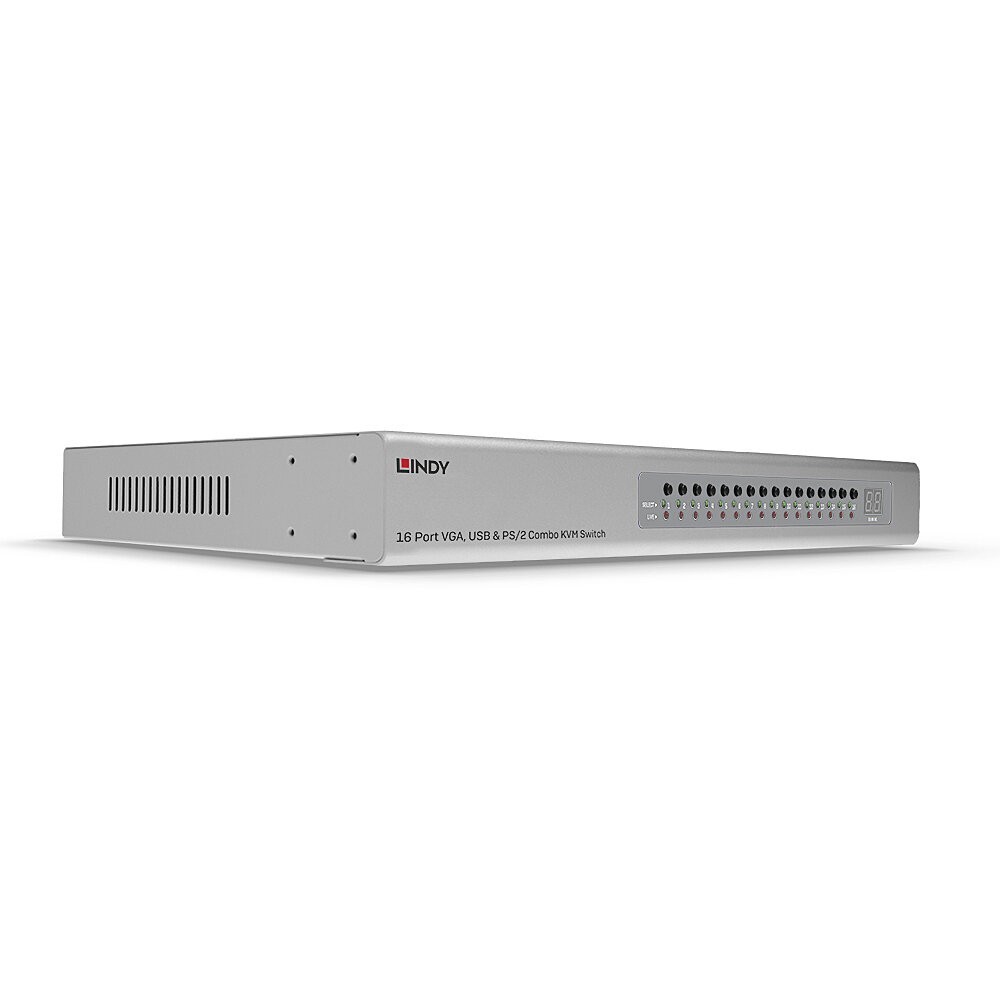

Lindy 16 Port VGA and USB Combo KVM Switch. Video port type: VGA, Console ports: USB A. Product colour: Silver, Housing material: Metal, Cable length: 0.22 m. Power source: AC, Input voltage: 9 V, Input current: 2 A. Compliance certificates: CE, REACH, RoHS. Width: 440 mm, Depth: 220 mm, Height: 44 mm

Ports & interfaces
Number of computers controlled	16
Video port type	VGA
VGA (D-Sub) ports quantity	16
Console USB ports quantity	2
Design
Rack mounting	Yes
Product colour	Silver
Housing material	Metal
Cable length	0.22 m
Display
Built-in display	No
Power
Power source	AC
Input voltage	9 V
Input current	2 A
Sustainability
Compliance certificates	CE, REACH, RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Weight	1.5 kg
Packaging data
Package width	570 mm
Package depth	250 mm
Package height	110 mm
Package weight	3.3 kg
Packaging content
Quick installation guide	Yes
