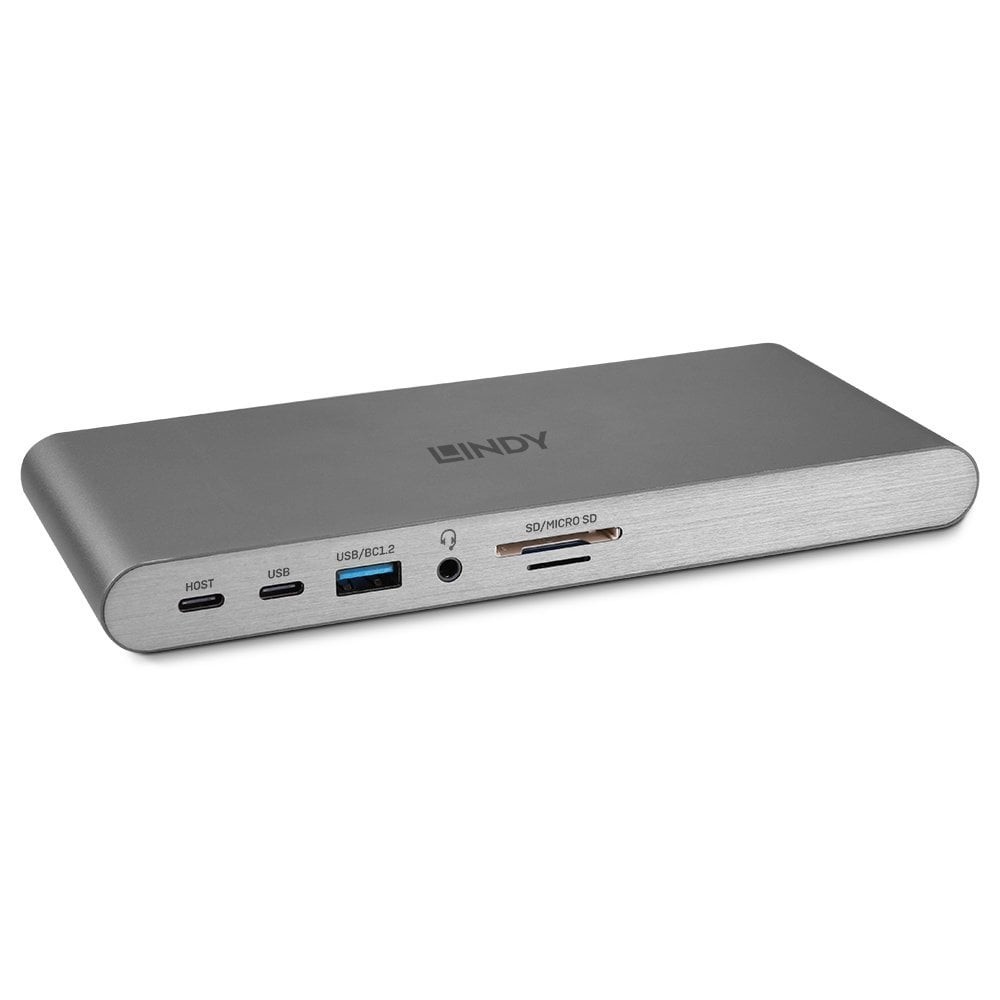

The DST-Pro 5K is a feature packed docking station designed to deliver unrivalled video output. Housed in a robust aluminium body, this dock delivers great additional connectivity for your device. A space-saving stand is also included to help keep your workspace clutter-free.

Extended Displays

When it comes to external display resolution, this docking station stands out from the crowd. With support for a single display resolution of 5k@60Hz (DisplayPort), you can connect your laptop with some of the industry's leading displays and monitors. There is also support for dual display (5K@60Hz + 4K@60Hz) and triple display (1 x 4K@60Hz, 2 x 4K@30Hz) setups. So, whether you need one, two or three displays, simply plug in your laptop and allow the DST-Pro 5K to provide Ultra HD resolutions through a single USB-C connection.

Added Connectivity

This docking station delivers great additional connectivity. SuperSpeed USB (5Gbps), Gigabit Ethernet, SD, microSD, HDMI, DisplayPort and a 3.5mm combo jack, are all featured. This allows for improved internet speeds, greater storage capacity and a comprehensive desktop experience.

Pass-through Charging

This docking station comes with a 24W PSU (Power Supply Unit). This is to ensure that there is enough power for the docking station to function without needing to take any power from your device's connected charger. Thanks to the integrated PD 3.0 port, you can plug your USB-C charger into the docking station and experience up to 100W pass-through charging (depending on the charger's capabilities). The USB-A port on the front of the dock also has support for Battery Charging 1.2 meaning you can charge mobile devices with 5V and up to 1.5A.

Plug-and-Play

This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.

Lindy DST-Pro 5K XT, USB-C Laptop Docking Station with Triple Display (4K) or Single Display (5K) and 100W Pass-Through Charging. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: DC, Power connector: USB Type-C, Output voltage: 20 V. Width: 180 mm, Depth: 77 mm, Height: 18 mm

Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.4
Combo headphone/mic port	Yes
Headphone outputs	0
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Performance
Product colour	Silver
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	5 Gbit/s
Maximum digital resolution	7680 x 4320 pixels
Maximum refresh rate	60 Hz
Housing material	Aluminium
Power
Power source type	DC
Power connector	USB Type-C
Output current	5 A
Power consumption (max)	24 W
Operational conditions
Operating temperature (T-T)	-20 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	180 mm
Depth	77 mm
Height	18 mm
Weight	439 g
Packaging data
Quantity per pack	1 pc(s)
Package width	200 mm
Package depth	120 mm
Package height	70 mm
Package weight	780 g
Packaging content
Manual	Yes
Technical details
Compliance certificates	CE, REACH, RoHS
