The Lindy USB 3.2 Gen 1 C/A Active Extension Cable Pro is a high performance active cable that allows access to USB peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.

This 5m USB 3.2 C/A Active Extension Cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at about 40m (depending on the cable configurations used).

Please note that only the USB 3.2 C/A Active Extension Pro 5m (Nr. 43380) or the 8m version (Nr. 43381) can be connected directly to your computer. Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any segment of the Extension Pro System (Nr. 43157, 43158, 43229, 43361). If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it's power supply as the final part of the extension.

If a USB Type C device is to be connected, a USB 3.0 Active Extension Type A to C (no. 43375 or 43376) can also be used as the last segment.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

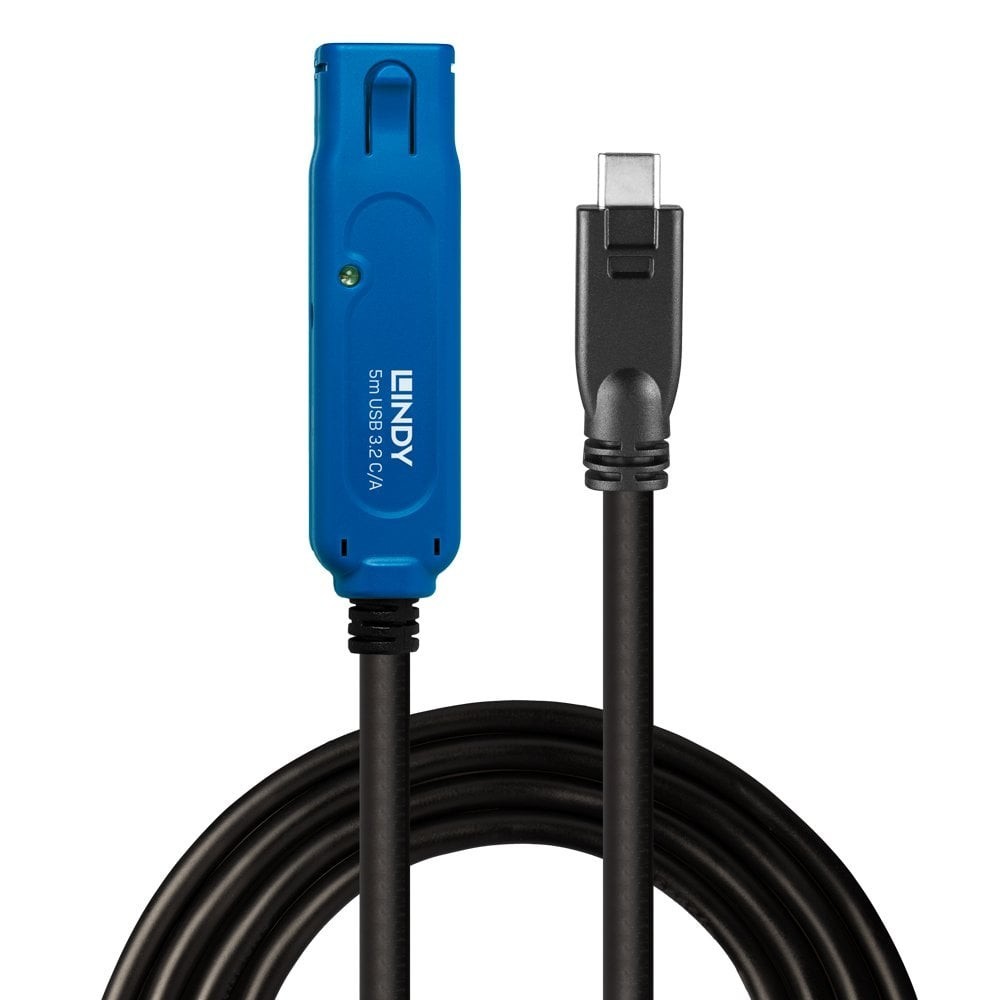

Lindy 5m USB 3.2 Gen 1 C/A Active Extension Pro. Cable length: 5 m. Connector 1: USB C, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Connector contacts plating: Gold, Product colour: Black

Features
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB C
Connector 2	USB A
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	28/28/24
Connector material	Nickel
Contact material	Brass
Connector contacts plating	Gold
Cable jacket material	Polyvinyl chloride (PVC)
Connector shield material	Aluminium
Connector housing material	Plastic
Cable type	Round cable
Transmission medium	Twisted pair
Nominal attenuation	0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.67dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB
Power
Power note	2.5/0.7mm DC
Weight & dimensions
Cable length	5 m
Cable diameter	5 mm
Weight	220 g
Bend radius (min)	5.5 cm
Connector 1 dimensions (WxDxH)	12.4 x 39.7 x 9 mm
Connector 2 dimensions (WxDxH)	20 x 80 x 13 mm
Packaging data
Package type	Carton
Package width	230 mm
Package depth	198 mm
Package height	63 mm
Package weight	420 g
Packaging content
Quantity per pack	1 pc(s)
Manual	Yes
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Logistics data
Warranty period	2 year(s)
