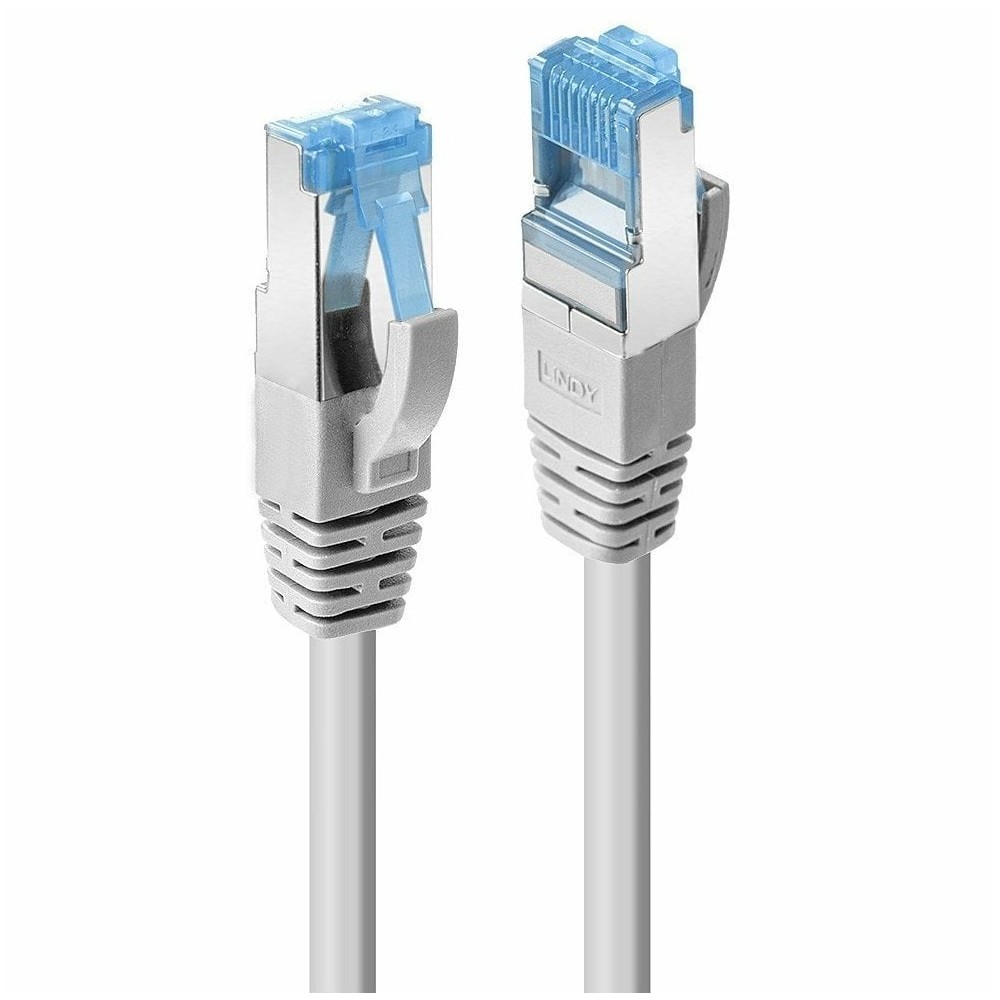

Lindy 3m Cat.7 S/FTP LSZH Cable, Grey 10pcs

Twisted Pair Patch Cable with RJ45 connectors
Connector: Cat.6A / Cable: Cat.7 S/FTP (600Mhz)
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 Year Warranty

Brand: Lindy

Reference: 47690

Available In Stock: 40 Items

Hurry up! only 40 items left in stock!

£78.14

Add to Wishlist

Add to Compare

In Stock

Secure Payments

Secure payment methods

Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

Returns Policy

Returns and exchanges

Cat.7 S/FTP LSZH network cable with Cat.6A connectors supports bandwidth up to 600MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

The Cat.7 cable material for operating frequencies up to 600MHz with taotal braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: "Cat.6A S/FTP patch cords with 600MHz raw cable".

Lindy 3m Cat.7 S/FTP LSZH Cable, Grey 10pcs. Cable length: 3 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Product colour: Grey

Features
Cable length	3 m
Cable standard	Cat7
Cable shielding	S/FTP (S-STP)
Product colour	Grey
Connector 1	RJ-45
Connector 2	RJ-45
Connector 2 form factor	Straight
Connector contacts plating	Nickel/Gold
Connector shielding	Yes
Connector shield material	Aluminium
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor material	Copper
Connector housing material	Polycarbonate (PC)
Cabling technology	10GBase-T
AWG wire size	26
Frequency	600 MHz
Bend radius (min)	7.8 cm
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Sustainability
Doesn't contain	Halogen
Certificates
Compliance certificates	REACH, RoHS, UL
Certification	RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Width	11.6 mm
Depth	22.8 mm
Height	8.3 mm
Outer diameter	6.5 mm
Packaging content
Quantity per pack	1 pc(s)
Manual	Yes
Packaging data
Package type	Polybag
Logistics data
Warranty period	10 year(s)

Reference 47690

In stock 40 Items

Data sheet

Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Grey
Cable length: 3 m
Quantity per pack: 1 pc(s)
Connector contacts plating: Nickel/Gold
Cable standard: Cat7
Cable shielding: S/FTP (S-STP)
Jacket material: Low smoke zero halogen (LSZH)
Certification: RoHS, REACH, UL, California Proposition 65
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C
Width: 11.6 mm
Depth: 22.8 mm
Height: 8.3 mm
Package type: Polybag
Manual: Yes
Compliance certificates: REACH, RoHS, UL
AWG wire size: 26
Warranty period: 10 year(s)
Sustainability compliance: Yes
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Conductor material: Copper
Connector shielding: Yes
Connector shield material: Aluminium
Bend radius (min): 7.8 cm
Connector housing material: Polycarbonate (PC)
Doesn't contain: Halogen
Cabling technology: 10GBase-T
Frequency: 600 MHz
Outer diameter: 6.5 mm
Cable shape: Round

Specific References

EAN13: 4002888476904
MPN: 47690
