0 Review(s)

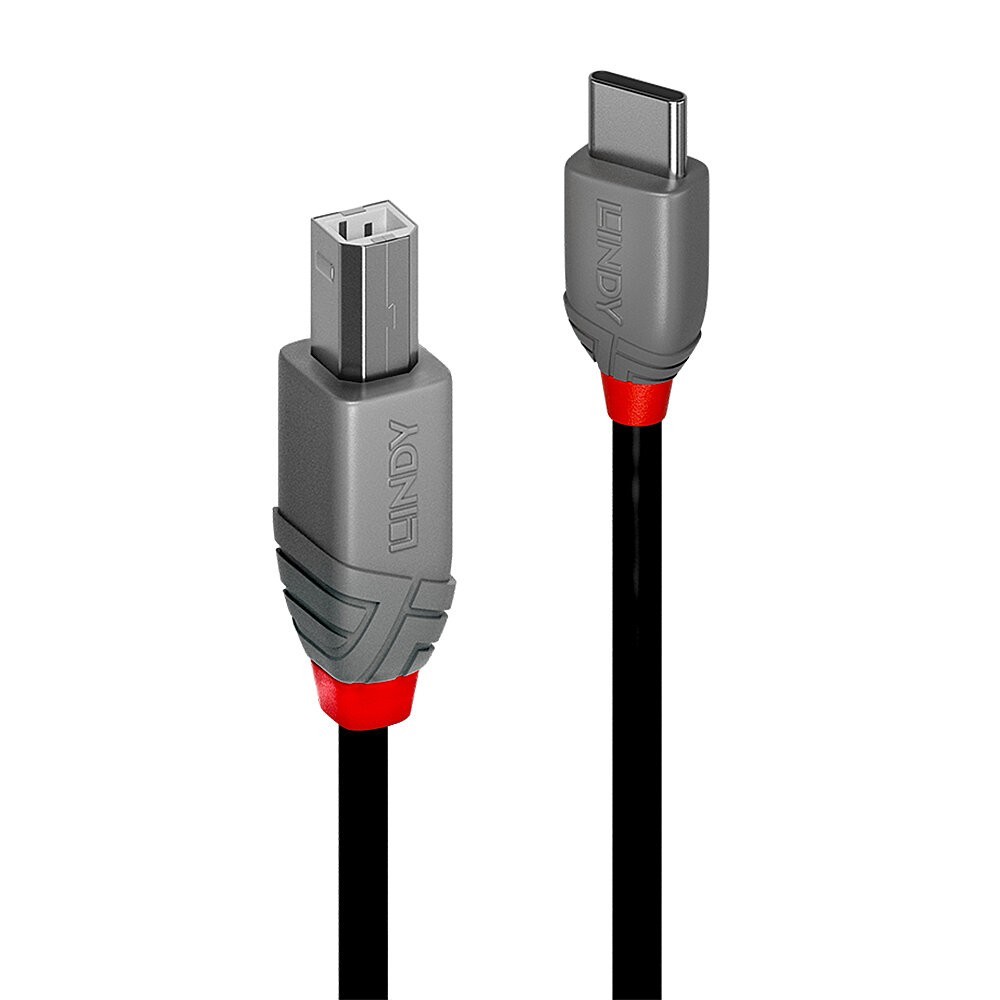

Lindy 3m USB 2.0 Type C to B Cable, Anthra Line

  • Professional choice USB 2.0 Type C to B cable for commercial and high performance AV and IT installations
  • Supports data transfer speeds up to 480Mbps
  • Robust PVC housing, nickel connectors and gold plated contacts
  • Double shielded cable, corrosion resistant tinned copper conductors
  • 10 Year Warranty
Lindy
36943
24 Items
Hurry up! only 24 items left in stock!
£6.17
In Stock

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

The Anthra Line USB 2.0 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 2.0 Type C to B cables are available in the following length: 0.5m, 1m, 2m and 3m.

Lindy 3m USB 2.0 Type C to B Cable, Anthra Line. Cable length: 3 m. Connector 1: USB C, Connector 2: USB B, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Nickel, Product colour: Black
Features
USB versionUSB 2.0
Connector 1USB C
Connector 2USB B
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size26/28
Contact materialBrass
Connector contacts platingNickel
Cable jacket materialPolyvinyl chloride (PVC)
Connector shieldingYes
Maximum data transfer rate0.48 Gbit/s
Cable typeRound cable
Nominal attenuation1-400MHz < 5.8dB
Weight & dimensions
Cable length3 m
Cable diameter4.4 mm
Bend radius (min)2.5 cm
Connector 1 dimensions (WxDxH)10.9 x 28.3 x 7.2 mm
Connector 2 dimensions (WxDxH)11.8 x 47 x 10.2 mm
Packaging data
Package typePolybag
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)0 - 70 °C
Logistics data
Harmonized System (HS) code84733080
36943
24 Items

Data sheet

USB version
USB 2.0
Connector 1
USB C
Connector 2
USB B
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black
Cable length
3 m
Quantity per pack
1 pc(s)
Connector contacts plating
Nickel
Maximum data transfer rate
480 Mbit/s
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
0 - 70 °C
Package type
Polybag
Harmonized System (HS) code
84733080
Compliance certificates
REACH, RoHS
AWG wire size
26/28
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable type
Round cable
Cable diameter
4.4 mm
Connector 1 dimensions (WxDxH)
10.9 x 28.3 x 7.2 mm
Cable jacket material
Polyvinyl chloride (PVC)
Conductor material
Tinned copper
Connector shielding
Yes
Nominal attenuation
1-400MHz < 5.8dB
Bend radius (min)
2.5 cm
Connector 2 dimensions (WxDxH)
11.8 x 47 x 10.2 mm
Contact material
Brass

Specific References

EAN13
4002888369435
MPN
36943
