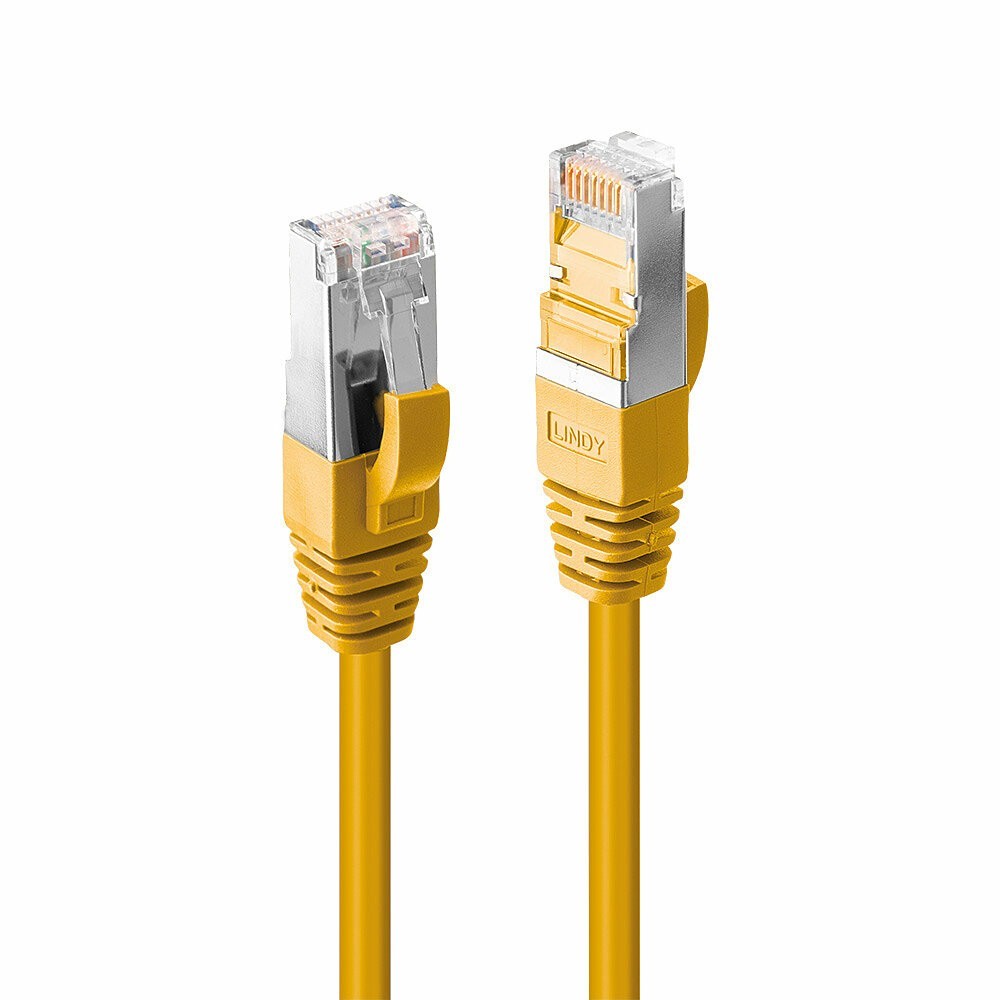

Lindy 47861 networking cable Yellow 0.5 m Cat6a S/FTP (S-STP)
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6A S/FTP PIMF, LSZH
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
- 10 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Lindy 47861. Cable length: 0.5 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Yellow
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Lindy 47861. Cable length: 0.5 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Yellow
| Features | |
| Cable length | 0.5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Product colour | Yellow |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable shape | Round |
| Conductor material | Copper |
| Connector housing material | Polycarbonate (PC) |
| AWG wire size | 27 |
| Frequency | 500 MHz |
| Bend radius (min) | 7.2 cm |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
| Width | 11.6 mm |
| Depth | 21.5 mm |
| Height | 8.3 mm |
| Outer diameter | 6 mm |
| Packaging data | |
| Package type | Polybag |
47861
84 Items
Data sheet
- Connector 1
- RJ-45
- Connector 2
- RJ-45
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Yellow
- Cable length
- 0.5 m
- Connector contacts plating
- Gold
- Cable standard
- Cat6a
- Cable shielding
- S/FTP (S-STP)
- Jacket material
- Low smoke zero halogen (LSZH)
- Operating temperature (T-T)
- -10 - 60 °C
- Storage temperature (T-T)
- -20 - 75 °C
- Width
- 11.6 mm
- Depth
- 21.5 mm
- Height
- 8.3 mm
- Package type
- Polybag
- Compliance certificates
- REACH, RoHS
- AWG wire size
- 27
- Sustainability compliance
- Yes
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Conductor material
- Copper
- Connector shielding
- Yes
- Connector shield material
- Aluminium
- Bend radius (min)
- 7.2 cm
- Connector housing material
- Polycarbonate (PC)
- Doesn't contain
- Halogen
- Frequency
- 500 MHz
- Outer diameter
- 6 mm
- Cable shape
- Round
Specific References
- EAN13
- 4002888478618
- MPN
- 47861
