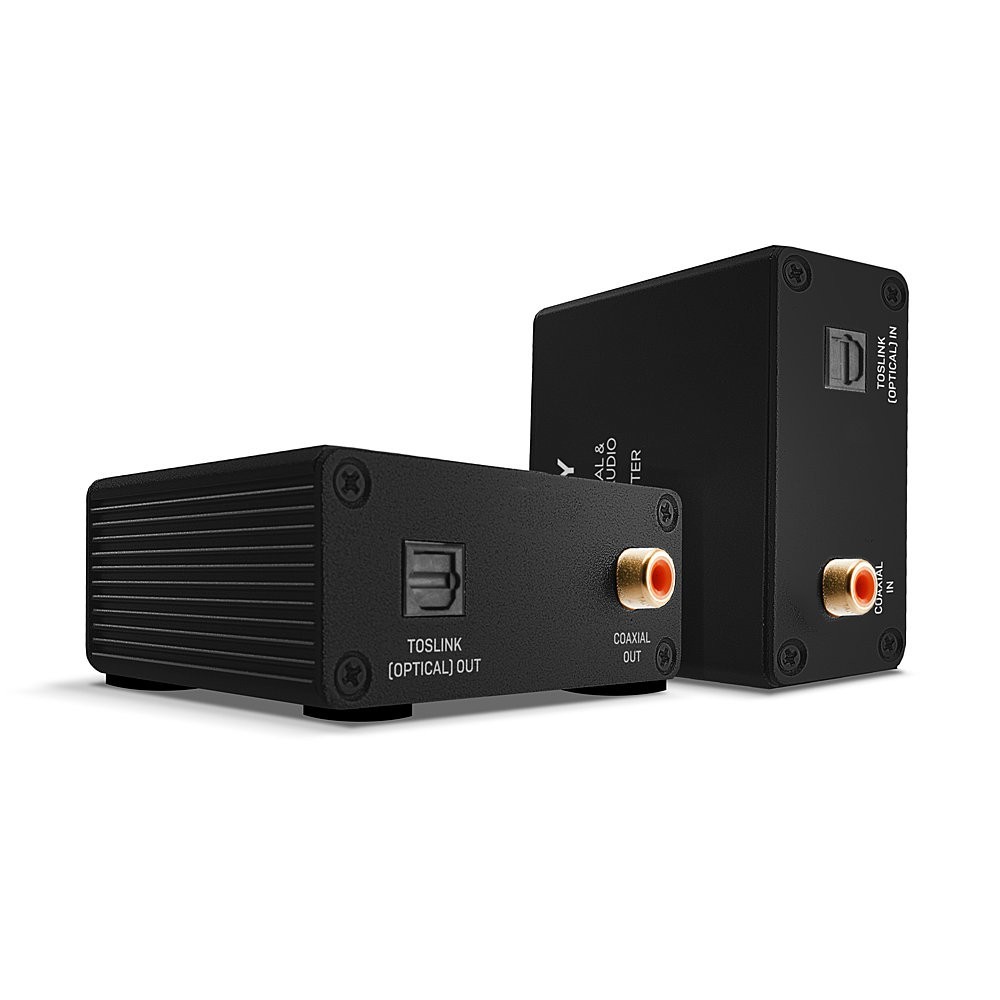

The Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender is a high-quality solution for extending digital audio signals over long distances, using standard network cable. With TosLink (Optical) and coaxial inputs and outputs, this extender can be easily used with a variety of AV source devices including TVs and amplifiers, with speakers or soundbars located at the receiver side.Connected audio can be output simultaneously to provide splitting functionality from a single input, great for smaller audio broadcasting setups in underground railway stations, bus depots or medical facilities. This also allows simple conversion of TosLink and Coaxial signals into their opposing output.

Supporting both stereo and multi-channel audio extension, this extender will allow for impressive three-dimensional surround sound performance to compliment films and games when connected to the audio source device, as well as crystal clear speech from user generated audio. This provides the user with an excellent point to point solution, ideal for use in immersive residential cinema rooms or creating a more attractive and enticing retail experience.

PoC (Power over Cable) functionality, the supply of power and data signals over Cat.6 cable on a point to point connection between the transmitter and receiver also brings additional flexibility as only one power supply is required at the transmitter unit, ideal when power outlets are limited at the receiver end of the installation.

Please note: simultaneous output is only possible when identical 96KHz sample rates are used

Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender. Type: AV transmitter & receiver, Cable types supported: Cat5e, Cat6, Maximum transfer distance: 150 m. Connectivity technology: Wired, Digital audio optical input type: TOSLINK. Operating voltage (transmitter): 12 V, Current: 1.25 A. Receiver dimensions (WxDxH): 65.9 x 26.9 x 53.1 mm, Receiver weight: 168 g, Transmitter dimensions (WxDxH): 65.9 x 26.9 x 53.1 mm. Package width: 190 mm, Package depth: 60 mm, Package height: 145 mm

Features
Type	AV transmitter & receiver
Cable types supported	Cat5e, Cat6
Chipset	EL5171/ EL5172
Material	Metal
Product colour	Black
Certification	CE, FCC, RoHS, REACH & California Proposition 65
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
Digital audio coaxial in	1
Digital audio optical input type	TOSLINK
Digital audio optical out	1
DC-in jack	Yes
Power
Operating voltage (transmitter)	12 V
Current	1.25 A
Operational conditions
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Receiver dimensions (WxDxH)	65.9 x 26.9 x 53.1 mm
Receiver weight	168 g
Transmitter dimensions (WxDxH)	65.9 x 26.9 x 53.1 mm
Transmitter weight	168 g
Packaging data
Package width	190 mm
Package depth	60 mm
Package height	145 mm
Package weight	405 g
Package type	Box
Packaging content
AC adapter included	Yes
Included power plug types	EU, UK, US
Manual	Yes
