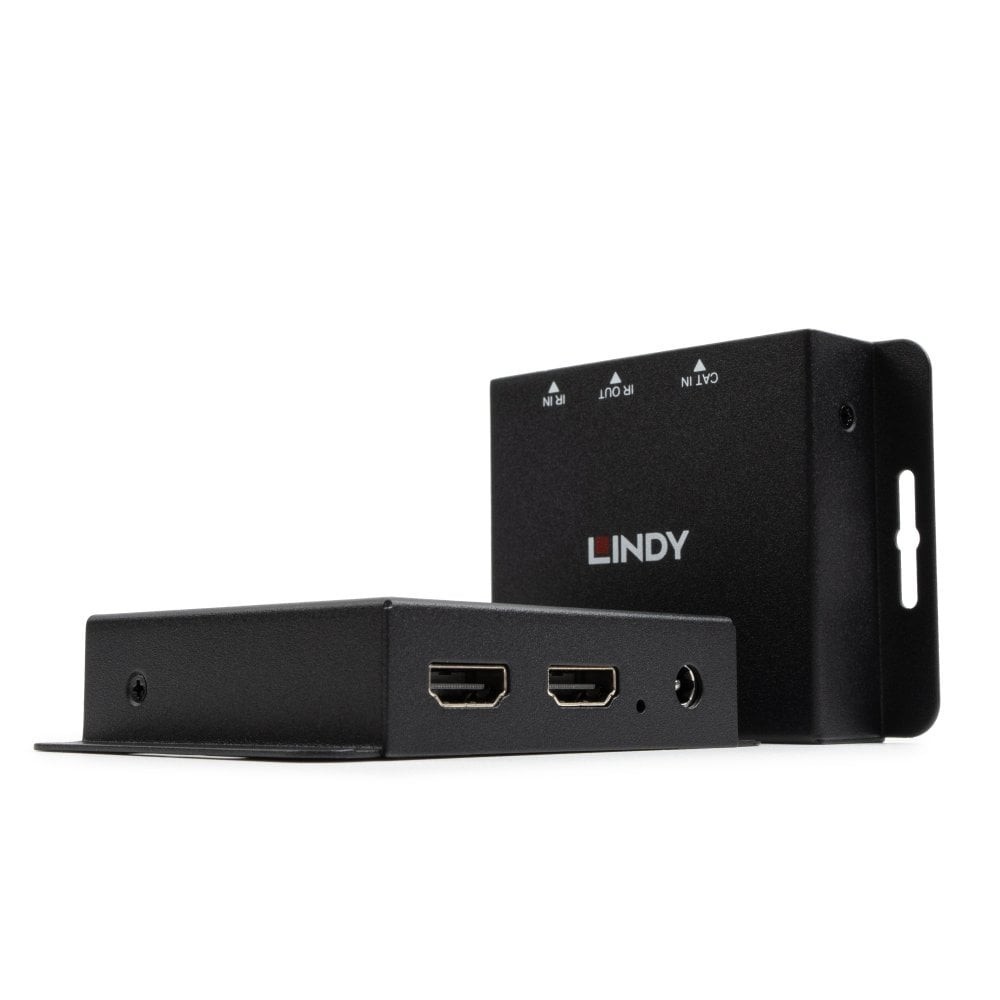

The Lindy 50m Cat.6 HDMI® & IR Extender is a simple to use solution which lets the user extend HDMI® signals up to 50m using a single low cost Cat.6 or above cable (not included).

For added convenience, IR signals (20-60 kHz) can also be extended using the supplied IR receiver and emitter cables.
Supporting resolutions up to 1920x1200@60Hz, Full HD video content can be seen at distances up to 50m, perfect for use in a variety of AV and digital signage applications in a range of settings including residential setups, education, business, retail and healthcare.

This extender features an HDMI® loop-out port on the transmitter for local simultaneous viewing so that a local display can be connected for monitoring or to create an additional viewing zone.

Power over Cable (PoC) functionality enables the extender to operate from a single power supply connected to the transmitter, allowing the receiver to be located where there is limited access to mains power sockets, making it ideal for minimalist, discreet installations.

In addition, the units' slim design with built-in mounting brackets allow it to be installed easily in limited spaces behind flat screen monitors or TVs.

Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Lindy 50m Cat.6 HDMI & IR Extender with PoC & Loop Out. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Output current: 1 A, Operating voltage (receiver): 5 V. Receiver dimensions (WxDxH): 96 x 20 x 68 mm, Receiver weight: 440 g, Transmitter dimensions (WxDxH): 96 x 20 x 68 mm. Quantity per pack: 1 pc(s), Package width: 215 mm, Package depth: 135 mm

Features
Type	AV transmitter & receiver
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5e, Cat6
Chipset	GSV100T
Maximum refresh rate	60 Hz
Audio output channels	7.1 channels
Infrared (IR) frequency range	20 - 60 kHz
HDCP version	1.4
Product colour	Black
Certification	CE, FCC, RoHS, REACH & California Proposition 65
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
Number of HDMI outputs	2
Video out	2
Remote (IR) output	1
DC-in jack	Yes
Power
Operating voltage (transmitter)	5 V
Operating voltage (receiver)	5 V
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Receiver dimensions (WxDxH)	96 x 20 x 68 mm
Receiver weight	440 g
Transmitter dimensions (WxDxH)	96 x 20 x 68 mm
Transmitter weight	440 g
Packaging data
Quantity per pack	1 pc(s)
Package width	215 mm
Package depth	135 mm
Package height	75 mm
Package weight	610 g
Package type	Box
Packaging content
AC adapter included	Yes
Manual	Yes
