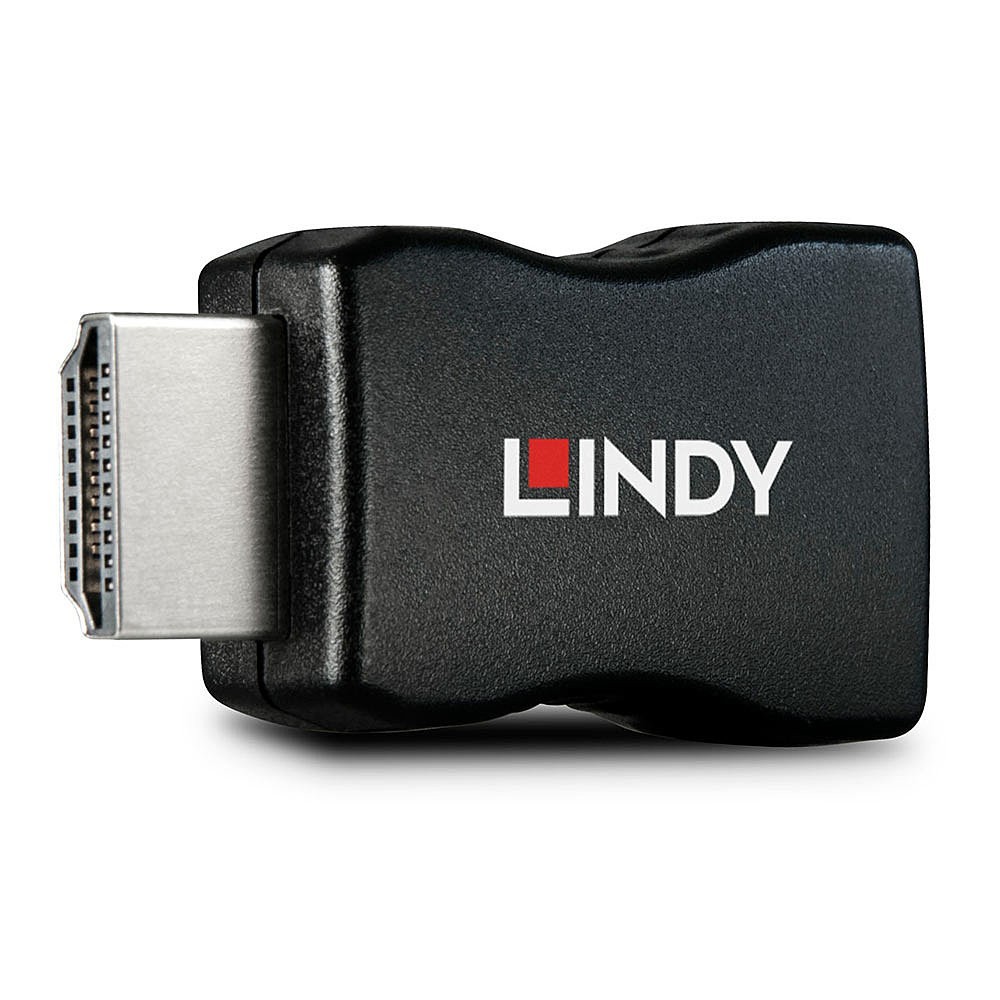

The Lindy HDMI 10.2G EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 2160p including the ability to passthrough HDCP content, the Emulator is suitable for use with a wide variety of PC and AV applications. When used with the Lindy HDMI / VGA / DVI EDID Recorder (32120) this compact device can provide cloned EDID information to your graphics card.

It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.

*Please note: This Emulator does not support HDMI 2.0 or HDCP 2.2 content. If you require this then please see our complete range of EDID emulators

Lindy HDMI 10.2G EDID Emulator. Connector 1: HDMI-A, Connector 2: HDMI-A. Product colour: Black

Ports & interfaces
Connector 1	HDMI-A
Connector 2	HDMI-A
Connector 2 gender	Female
Performance
Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
Data transfer rate	18 Gbit/s
Maximum resolution (HDMI)	3840 x 2160 pixels
Compatible products	Lindy 32100
Operational conditions
Relative humidity	0 - 80%
Certificates
Compliance certificates	RoHS
Certification	REACH, CE, FCC
Weight & dimensions
Width	24 mm
Depth	43 mm
Height	12.3 mm
Weight	8 g
Packaging content
Manual	Yes
Packaging data
Package width	136 mm
Package height	138 mm
Package type	Polybag
