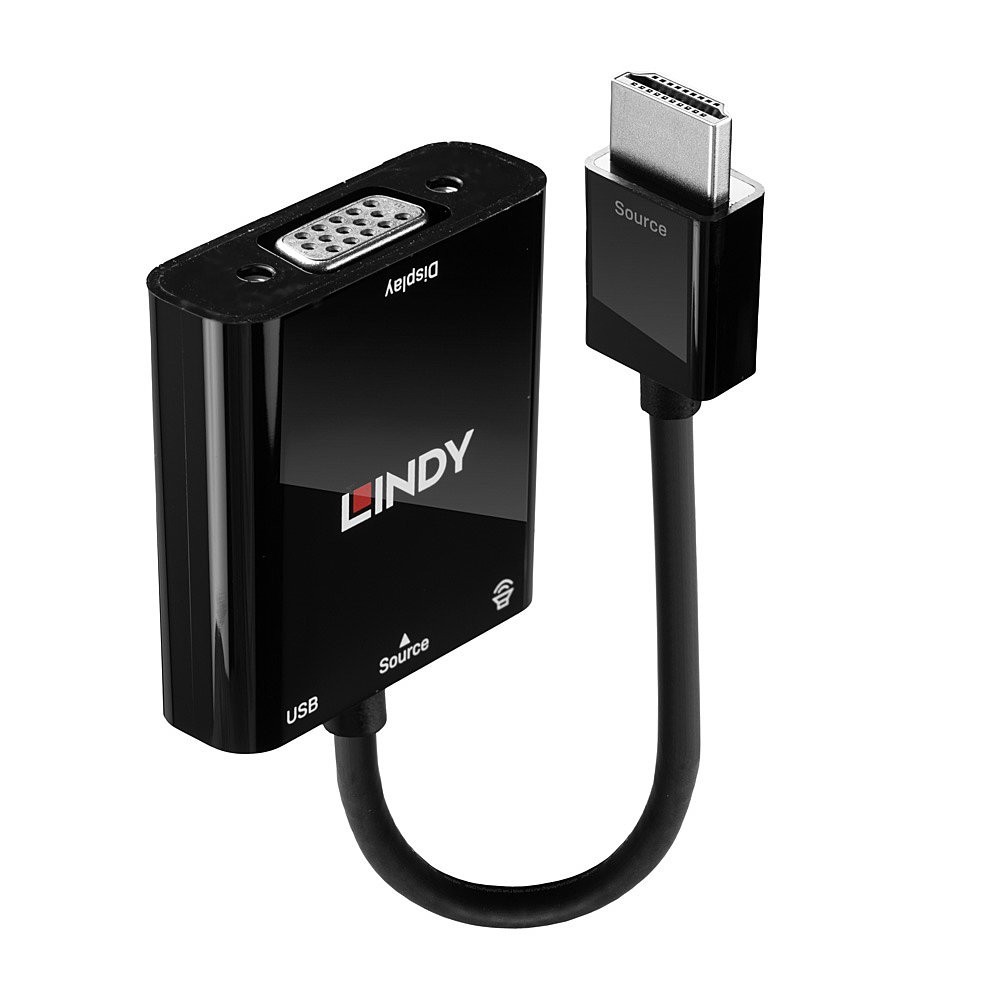

Lindy HDMI to VGA and Audio Converter
- Connects an HDMI equipped device to a VGA display and analogue speakers
- Supports resolutions up to 1920x1200 including 1080p
- Direct signal conversion, without scaling
- Quick and simple plug and play installation
- 2 Year Warranty
Secure payment methods
Free Delivery On Standard UK Mainland Orders **Over £500
Returns and exchanges
The Lindy HDMI 1.3 to VGA and Audio Converter is ideal for connecting HDMI equipped sources such as laptops, ultrabooks and PCs to VGA displays. It converts the HDMI signal (along with the associated digital audio stream) into an analogue VGA signal.
Full HD signals are supported, including 1080p for HDTV connections and up to 1920x1080 for PC VGA monitors.
No external power source is required, which makes this converter the perfect tool for flexible working in different environments, whether it's in the office, traveling to hold presentations or at home, as it also permits the use of older VGA monitors or projectors to display content.
Lindy HDMI to VGA and Audio Converter. Cable length: 0.1 m, Connector 1: HDMI Type A (Standard), Connector 2: VGA (D-Sub). Cable diameter: 4.8 mm. Package type: Polybag
Full HD signals are supported, including 1080p for HDTV connections and up to 1920x1080 for PC VGA monitors.
No external power source is required, which makes this converter the perfect tool for flexible working in different environments, whether it's in the office, traveling to hold presentations or at home, as it also permits the use of older VGA monitors or projectors to display content.
Lindy HDMI to VGA and Audio Converter. Cable length: 0.1 m, Connector 1: HDMI Type A (Standard), Connector 2: VGA (D-Sub). Cable diameter: 4.8 mm. Package type: Polybag
| Features | |
| Cable length | 0.1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Audio connector | Yes |
| Audio connector type | 3.5 mm (1/8") |
| Power source | USB |
| HDMI version | 1.3 |
| Maximum resolution | 1920 x 1200 pixels |
| Data transfer rate | 4.95 Gbit/s |
| Product colour | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| Colour depth | 12 bit |
| Cable shielding | Aluminium mylar foil |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Packaging data | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
38285
35 Items
Data sheet
- Connector 1
- HDMI Type A (Standard)
- Connector 2
- VGA (D-Sub)
- Connector 1 gender
- Male
- Connector 2 gender
- Female
- Product colour
- Black
- Cable length
- 0.1 m
- Connector contacts plating
- Nickel
- Maximum resolution
- 1920 x 1200 pixels
- Data transfer rate
- 4.95 Gbit/s
- Cable shielding
- Aluminium mylar foil
- Jacket material
- Polyvinyl chloride (PVC)
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -10 - 80 °C
- Package type
- Polybag
- Harmonized System (HS) code
- 84733080
- AWG wire size
- 30
- Power source
- USB
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Cable material
- Copper
- Cable diameter
- 4.8 mm
- HDMI version
- 1.3
- Colour depth
- 12 bit
- Audio connector
- Yes
- Audio connector type
- 3.5 mm (1/8")
Specific References
- EAN13
- 4002888382854
- MPN
- 38285
