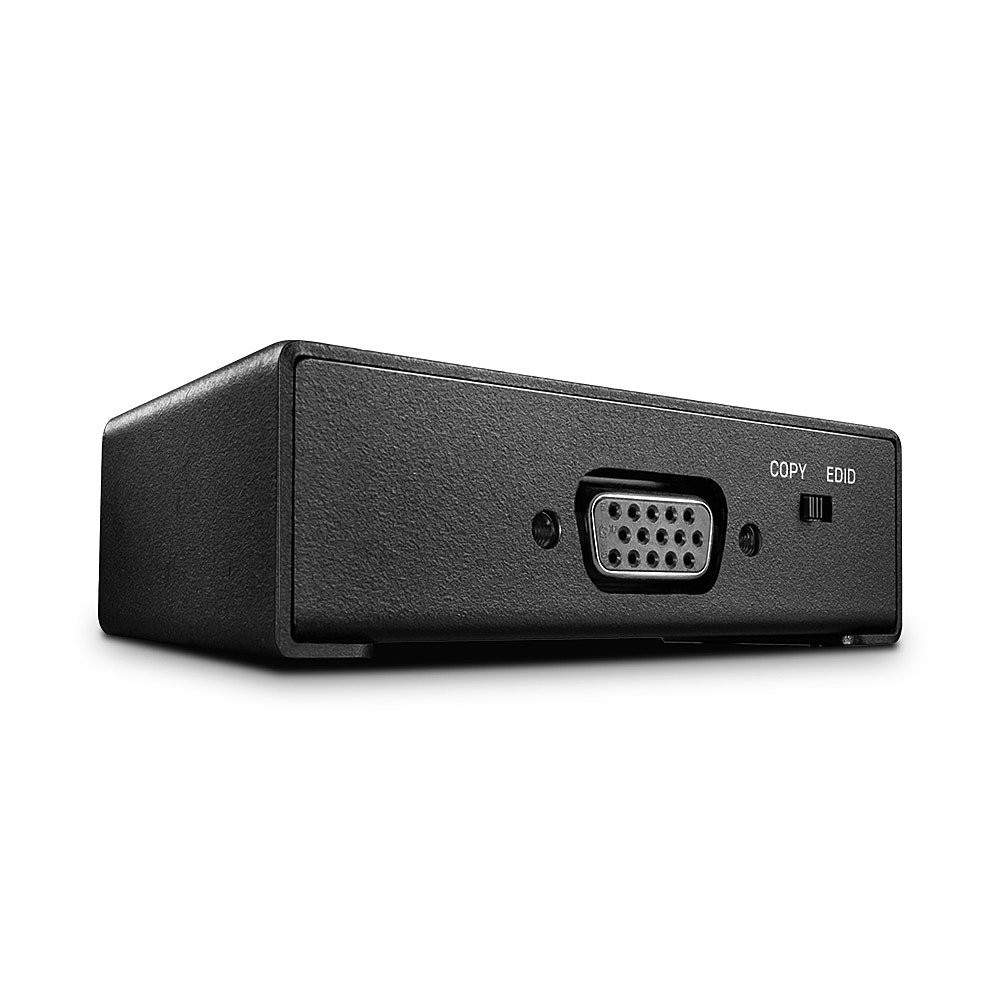

The Lindy EDID Recorder is a useful solution to solving a variety of EDID compatibility issues that may occur when connecting mixed displays or using splitters, extenders or switches.

This recorder intelligently copies a connected HDMI , VGA or DVI displays EDID and stores it, to then be repeatedly used with Lindy's range of EDID emulators (32104, 32121 and 32122), overwriting the emulator's pre-set EDID to ensure seamless compatibility within the installation. The EDID recorder's simple switch for copying EDID information allows for hassle free use for both professional and first time users.

This recorder is also backwards compatible with previous Lindy EDID emulators 32101 and 32102.

Lindy HDMI / VGA / DVI EDID Recorder. Maximum video resolution: 3840 x 2160 pixels, Video resolutions: 1920 x 1080,2560 x 1600,3840 x 2160, Bandwidth: 18 Gbit/s. Product colour: Black, Housing material: Metal. Video port type: HDMI. Width: 48 mm, Depth: 22 mm, Height: 73 mm. Package width: 185 mm, Package depth: 55 mm, Package height: 140 mm

Features
Maximum video resolution	3840 x 2160 pixels
Video resolutions	1920 x 1080,2560 x 1600,3840 x 2160
Bandwidth	18 Gbit/s
Design
Product colour	Black
Housing material	Metal
Ports & interfaces
Video port type	HDMI
Number of video inputs	3
DC-in jack	Yes
Weight & dimensions
Width	48 mm
Depth	22 mm
Height	73 mm
Weight	234 g
Packaging data
Package width	185 mm
Package depth	55 mm
Package height	140 mm
Package weight	313 g
