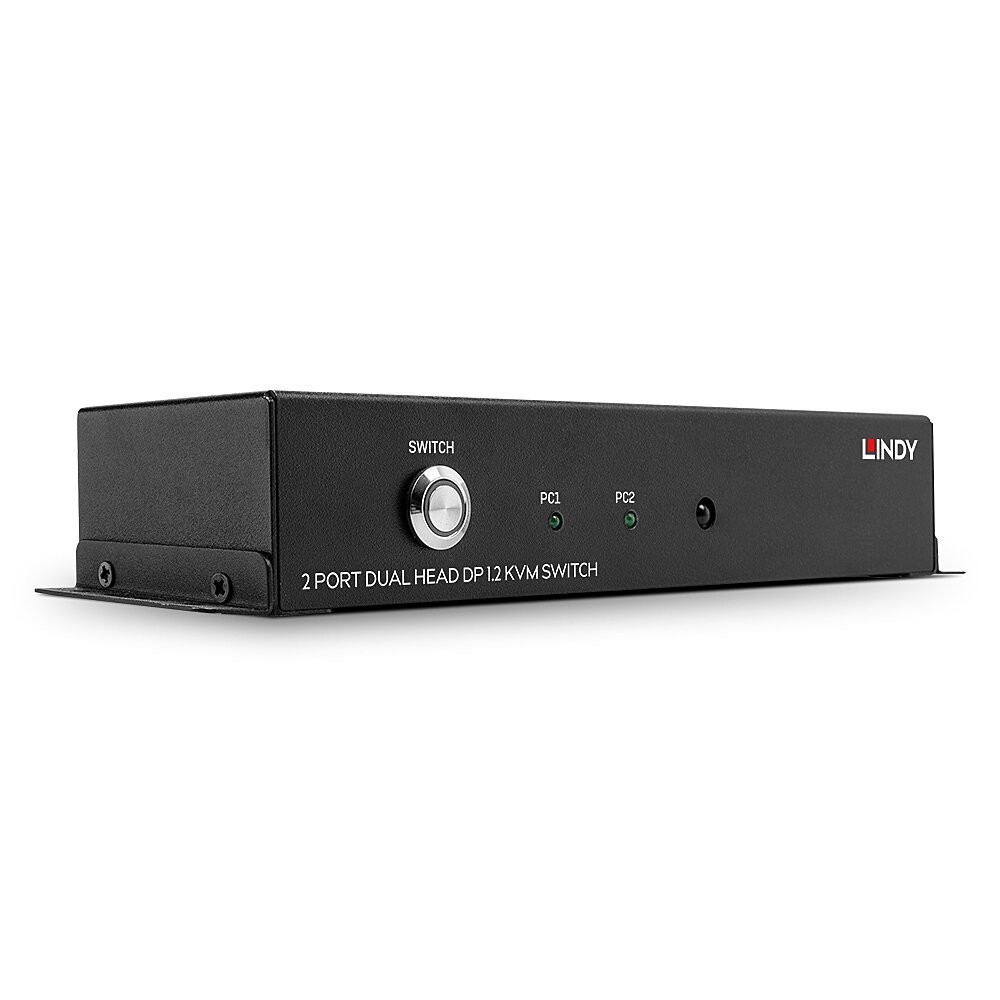

The Lindy 2 Port Dual Head DP 1.2 KVM Switch is a powerful, compact solution for providing access and control over two dual head, DisplayPort equipped PCs using a single set of peripherals and displays. Four USB 2.0 ports allow for the connection and sharing of USB peripherals and storage devices between host PC's seamlessly.

Supporting the highest, practical, digital video resolutions up to 3840x2160@60Hz on two displays simultaneously, this switch is ideal for the most demanding office based tasks such as computer-aided design, videography, rendering and more, only made possible by its proficiency in outputting a combined resolution of 7680x2160.

Support for a wide-range of USB devices ensure maximum compatibility with existing keyboards, mice, headsets, printers and more, virtually guaranteeing integration of the switch in existing environments will be completely hassle-free. Female DisplayPort connectors provide flexibility and hands the user jurisdiction to use existing cabling in appropriate lengths.

Installation within new and existing set-ups is uncomplicated, thanks in part to its small form factor, as well as the pre-installed mounting hardware. An industrial, locking DC power connector provides peace of mind as accidental disconnections are almost impossible, perfect for mission critical medical or manufacturing applications.

Please Note: connection cables are not included

Lindy 2 Port Dual Head DisplayPort 1.2 KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V. Compliance certificates: REACH, RoHS

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	4
DisplayPort version	1.2
USB 2.0 Type-B ports quantity	2
Console USB ports quantity	4
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Design
Product colour	Black
Housing material	Metal
Power
Power source	DC
Input voltage	5 V
Sustainability
Compliance certificates	REACH, RoHS
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	184 mm
Depth	35 mm
Height	60 mm
Weight	674 g
Packaging data
Package width	235 mm
Package depth	63 mm
Package height	198 mm
Package weight	860 g
Package type	Box
Packaging content
Cables included	DC
Manual	Yes
Logistics data
Harmonized System (HS) code	85176200
