Lindy 300m Cat.6 2 Port VGA Receiver
- Receives VGA signals over 300m network cable from the compatible transmitter (35403)
- Distribute the received signal across 2 separate VGA displays
- Supports resolutions up to 1920x1080, with dual mono audio extraction
- Adjustable EQ and gain control for ensuring optimum image quality
- 2 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
VGA extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling.

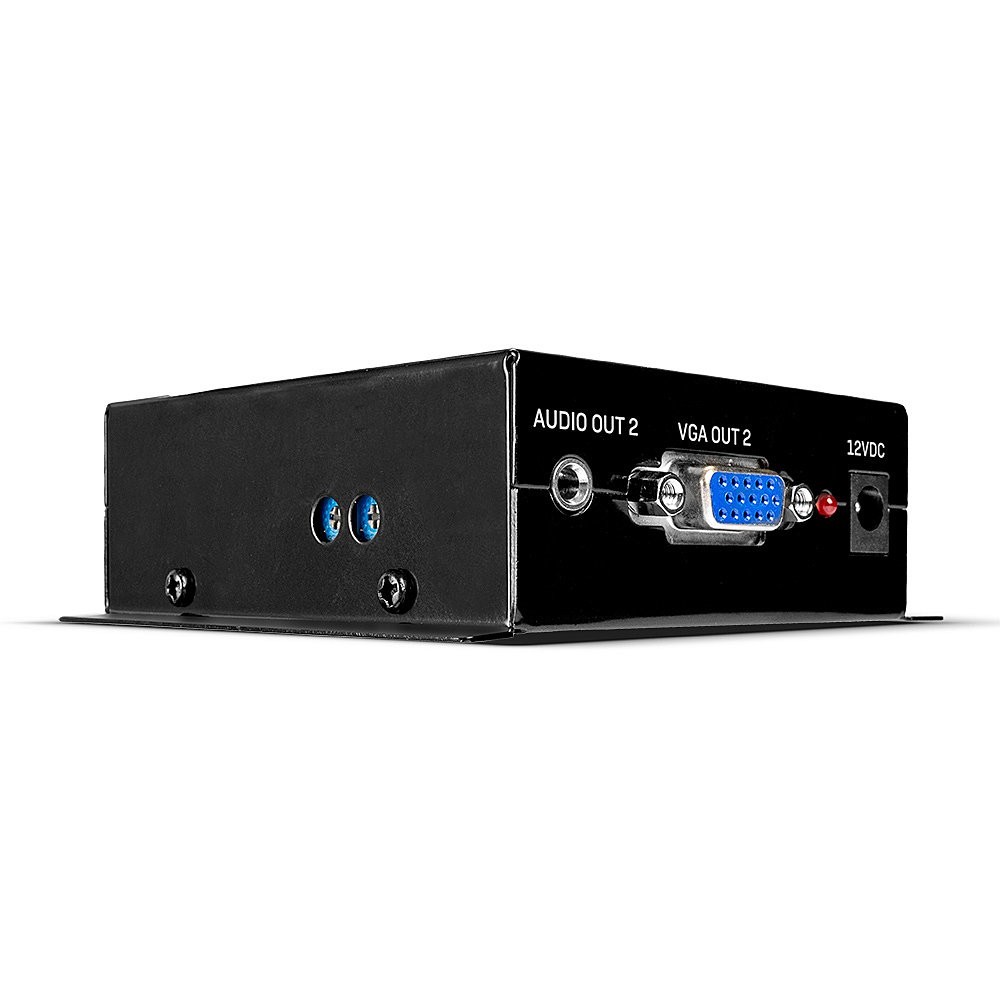

The Lindy 300m Cat.6 2 Port VGA Receiver is an ideal solution for distributing VGA signals to a single, or dual separate VGA display. Connected to the compatible transmitter (35403) via standard network cable, this receiver provides transmission of VGA signals up to 1920x1080, great for creating 4 separate distribution zones, such as classrooms or in security facilities. Dual VGA output ports allow for the connection of 2 separate VGA displays or projectors at the receiver side, useful when presenting information across multiple screens whether in monitoring and control, or smaller retail setups. 3.5mm dual mono audio connections also ensure speakers can be connected for supporting video content with high quality clear audio.
EQ and gain controls, for sharpness and brightness, can be easily adjusted to ensure the optimum picture quality is always shown .
The receiver has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.
Lindy 300m Cat.6 2 Port VGA Receiver. Video port type: VGA, Video out: VGA. Maximum resolution: 1920 x 1080 pixels, Product colour: Black, HD type: Full HD. Cable types supported: Cat5e, Cat6. AC input voltage: 12 V, Input current: 1.2 A. Width: 135.4 mm, Depth: 73 mm, Height: 31 mm
The Lindy 300m Cat.6 2 Port VGA Receiver is an ideal solution for distributing VGA signals to a single, or dual separate VGA display. Connected to the compatible transmitter (35403) via standard network cable, this receiver provides transmission of VGA signals up to 1920x1080, great for creating 4 separate distribution zones, such as classrooms or in security facilities. Dual VGA output ports allow for the connection of 2 separate VGA displays or projectors at the receiver side, useful when presenting information across multiple screens whether in monitoring and control, or smaller retail setups. 3.5mm dual mono audio connections also ensure speakers can be connected for supporting video content with high quality clear audio.
EQ and gain controls, for sharpness and brightness, can be easily adjusted to ensure the optimum picture quality is always shown .
The receiver has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.
Lindy 300m Cat.6 2 Port VGA Receiver. Video port type: VGA, Video out: VGA. Maximum resolution: 1920 x 1080 pixels, Product colour: Black, HD type: Full HD. Cable types supported: Cat5e, Cat6. AC input voltage: 12 V, Input current: 1.2 A. Width: 135.4 mm, Depth: 73 mm, Height: 31 mm
| Ports & interfaces | |
| Video ports quantity | 1 |
| Video port type | VGA |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 4 |
| Audio ports quantity | 1 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Maximum resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Maximum operating distance | 300 m |
| LED indicators | Yes |
| Network | |
| Cable types supported | Cat5e, Cat6 |
| Power | |
| AC input voltage | 12 V |
| Input current | 1.2 A |
| Weight & dimensions | |
| Width | 135.4 mm |
| Depth | 73 mm |
| Height | 31 mm |
| Weight | 484 g |
| Packaging data | |
| Package width | 177 mm |
| Package depth | 110 mm |
| Package height | 75 mm |
| Package weight | 547 g |
| Packaging content | |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
35404
38 Items
Data sheet
- Product colour
- Black
- Video port type
- VGA
- HD type
- Full HD
- Maximum resolution
- 1920 x 1080 pixels
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Width
- 135.4 mm
- Depth
- 73 mm
- Height
- 31 mm
- Weight
- 484 g
- Package width
- 177 mm
- Package depth
- 110 mm
- Package weight
- 547 g
- Harmonized System (HS) code
- 85176990
- LED indicators
- Yes
- Manual
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Operating relative humidity (H-H)
- 20 - 80%
- Package height
- 75 mm
- AC adapter included
- Yes
- Compliance certificates
- REACH, RoHS
- Cable types supported
- Cat5e, Cat6
- Input current
- 1.2 A
- AC input voltage
- 12 V
- DC-in jack
- Yes
- Video ports quantity
- 1
- Video out
- VGA
- Audio ports quantity
- 1
- Maximum operating distance
- 300 m
Specific References
- EAN13
- 4002888354042
- MPN
- 35404
