Designed for smaller screens up to 42″ and weighing up to 60 kg. With its numerous mounting holes in the support plate, it is possible to mount LWB2 on various types of wall surfaces, both concrete and wooden. Screen protection against falling, robust finish and, at the same time, modern design allow the use of LWB2 in various rooms. Installing the screen on the wall increases the amount of free space in the room, while the ability to tilt the screen by –12/+6º improves the user’s viewing comfort.

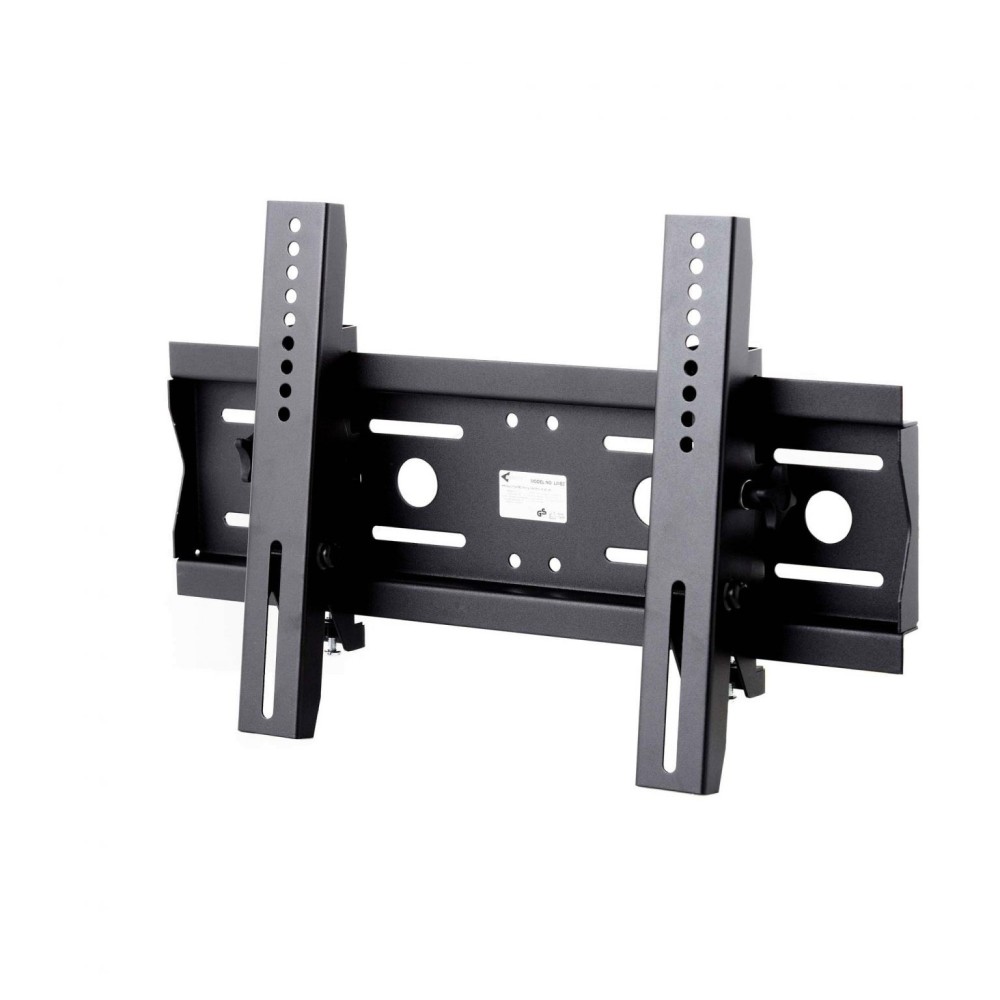

Edbak LWB2. Maximum weight capacity: 60 kg, Minimum screen size: 66 cm (26"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 300 mm. Tilt angle range: -12 - 6°, Distance to the wall (min): 7.7 cm, Distance to the wall (max): 7.7 cm. Product colour: Black

Mounting
Number of displays supported	1
Maximum weight capacity	60 kg
Minimum screen size	66 cm (26")
Maximum screen size	106.7 cm (42")
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 300 mm
Ergonomics
Tilt adjustment	Yes
Tilt angle range	-12 - 6°
Distance to the wall (min)	7.7 cm
Design
Product colour	Black
Housing material	Metal
Certification	RoHS
Weight & dimensions
Width	541 mm
Depth (min)	7.7 cm
Depth (max)	7.7 cm
Height	340 mm
Weight	3.3 kg
Packaging data
Package width	570 mm
Package depth	180 mm
Package height	80 mm
Package weight	3.7 kg
