The Lindy 4K30 HDMI and USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).

Please note: all modules are sold separately so you can build and scale according to your requirements.

One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.

Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.

As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.

This extender system provides JPEG2000 main stream and H.264/H265 codec secondary stream which supports API commands to achieve flexible configurations including from third party control apps.

The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.

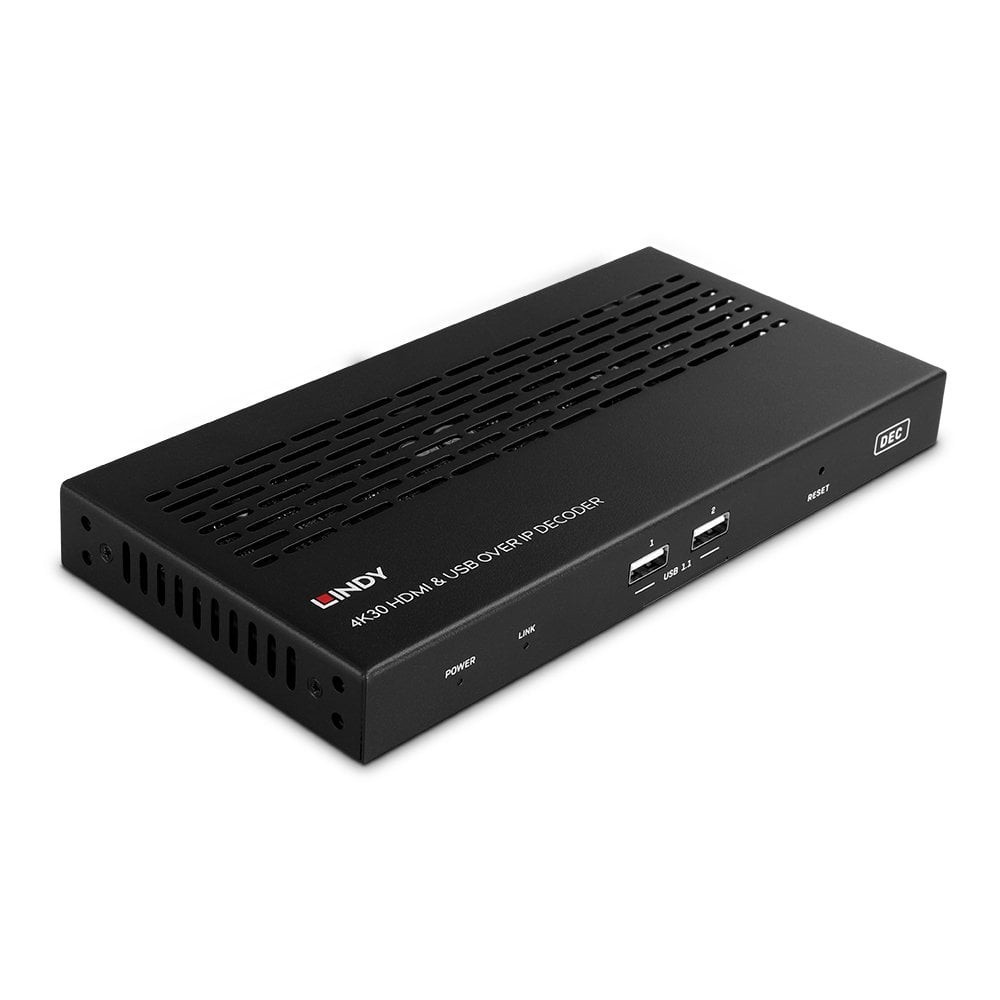

Lindy 4K30 HDMI and USB over IP System - Decoder. Type: AV receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired, USB version: 1.1/2.0, USB connector type: USB Type-A. Power source type: DC, Operating voltage: 12 V, Output current: 1 A. Width: 204 mm, Depth: 134 mm, Height: 21.5 mm. Quantity per pack: 1 pc(s), Package width: 245 mm, Package depth: 185 mm

Features
Type	AV receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	100 m
Maximum refresh rate	30 Hz
Infrared (IR) frequency range	20 - 60 kHz
HDCP version	2.2
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Yes
RJ-45 input ports	1
HDMI version	2.0
USB ports quantity	4
USB version	1.1/2.0
USB connector type	USB Type-A
Remote (IR) output	1
DC-in jack	Yes
Power
Power source type	DC
Operating voltage	12 V
Output current	1 A
Power over Ethernet (PoE)	Yes
Operational conditions
Storage relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	204 mm
Depth	134 mm
Height	21.5 mm
Weight	760 g
Packaging data
Quantity per pack	1 pc(s)
Package width	245 mm
Package depth	185 mm
Package height	75 mm
Package weight	1 kg
Package type	Box
Packaging content
AC adapter included	Yes
Cables included	IR
Included power plug types	AU, EU, UK, US
Manual	Yes
Mounting kit	Yes
