Designed for the installation of medium-sized screens. PWB2 is a robust, tilting wall mount that provides extraordinary functionality with its minimalist design. The ease of installation makes it very simple to use on all types of wall surfaces. Screen protection against falling, robust finish and, at the same time, modern design allow the use of PWB2 in conference rooms, waiting rooms or public areas.

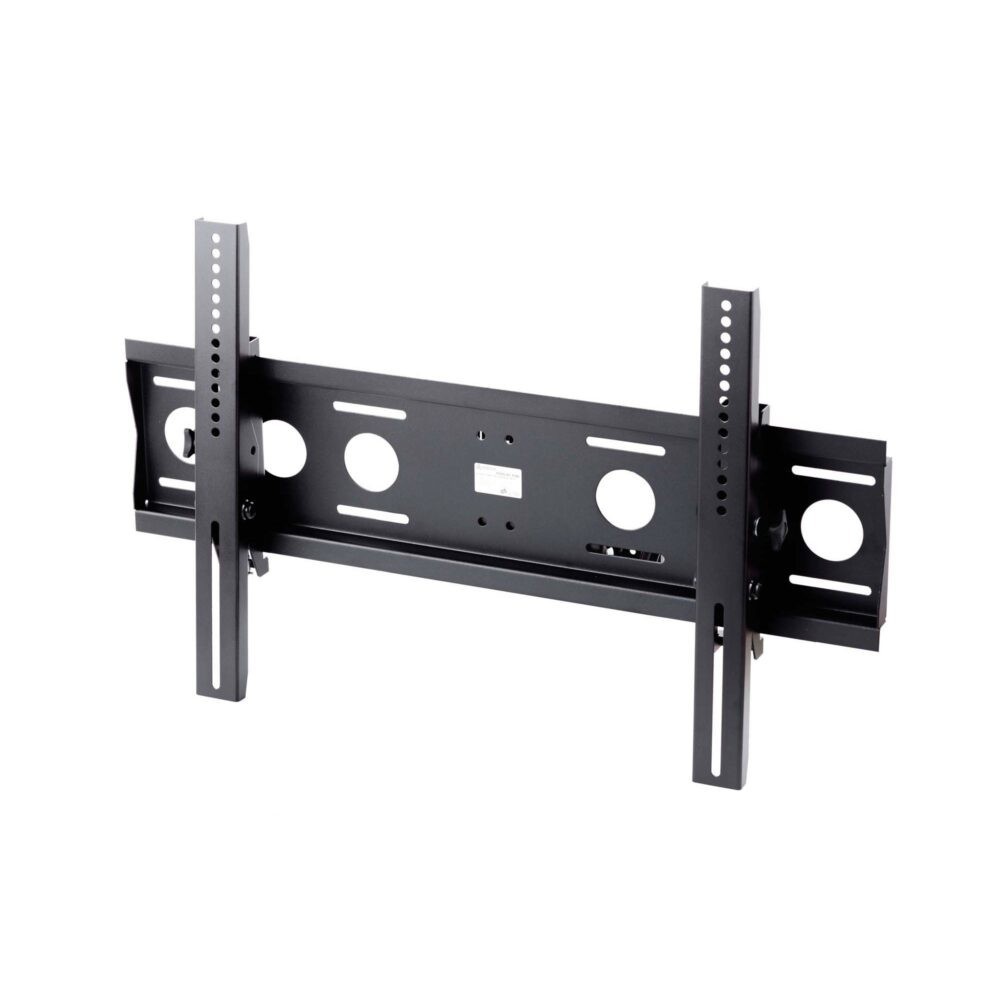

Edbak PWB2. Maximum weight capacity: 80 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -6.5 - 12°, Distance to the wall (min): 7.6 cm, Distance to the wall (max): 7.6 cm. Product colour: Black

Mounting
Number of displays supported	1
Maximum weight capacity	80 kg
Minimum screen size	106.7 cm (42")
Maximum screen size	165.1 cm (65")
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Ergonomics
Tilt adjustment	Yes
Tilt angle range	-6.5 - 12°
Distance to the wall (min)	7.6 cm
Design
Product colour	Black
Certification	RoHS
Weight & dimensions
Width	800 mm
Depth (min)	7.6 cm
Depth (max)	7.6 cm
Height	500 mm
Weight	5.2 kg
Packaging data
Package width	830 mm
Package depth	220 mm
Package height	80 mm
Package weight	5.5 kg
