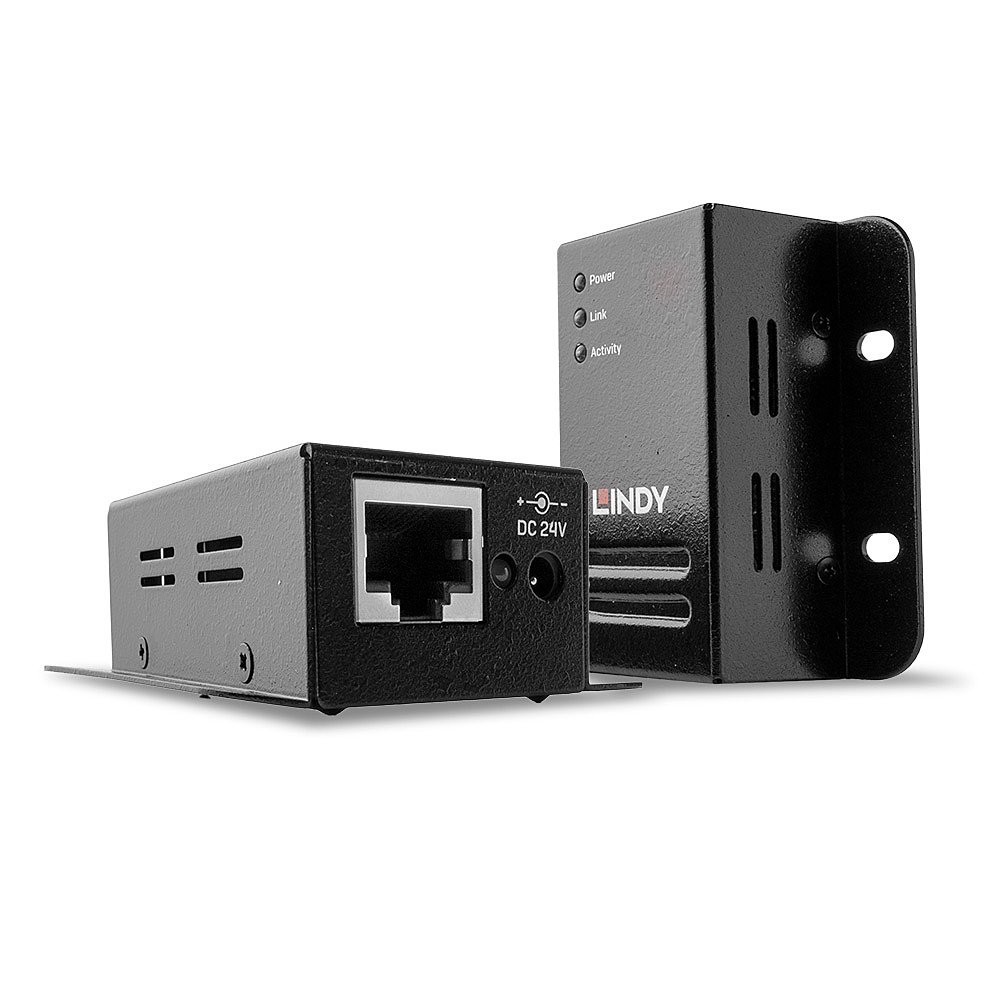

The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.

A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.

With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Lindy 50m USB 2.0 Cat.6 Extender. Type: Network transmitter & receiver, Maximum transfer distance: 50 m, Data transfer rate: 480 Mbit/s. Product colour: Black, Housing material: Metal, Certification: CE, UKCA, FCC, RoHS, REACH. Input current: 0.25 A, Output voltage: 24 V, Output current: 0.5 A. Weight: 300 g, Transmitter width: 6 cm, Transmitter depth: 6.7 cm. Cables included: USB Type-A to USB Type-B

Performance
Type	Network transmitter & receiver
Maximum transfer distance	50 m
Data transfer rate	480 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6
Chipset	NS1021
Plug and Play	Yes
Ports & interfaces
RJ-45 ports quantity (transmitter)	1
RJ-45 ports quantity (receiver)	1
USB 2.0 ports quantity	2
DC-in jack	Yes
Design
Product colour	Black
Housing material	Metal
LED indicators	Yes
Certification	CE, UKCA, FCC, RoHS, REACH
Power
Input current	0.25 A
Output voltage	24 V
Output current	0.5 A
Power over Ethernet (PoE)	Yes
Power note	3.5/1.35mm DC
Included power plug types	AU, EU, UK, US
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Weight & dimensions
Weight	300 g
Transmitter width	6 cm
Transmitter depth	6.7 cm
Transmitter height	2.3 cm
Receiver width	6 cm
Receiver depth	6.7 cm
Receiver height	2.3 cm
Packaging content
Manual	Yes
Packaging data
Package type	Box
Package width	185 mm
Package depth	140 mm
Package height	55 mm
Package weight	400 g
Logistics data
Harmonized System (HS) code	85176990
